HBC Standard T-bolt

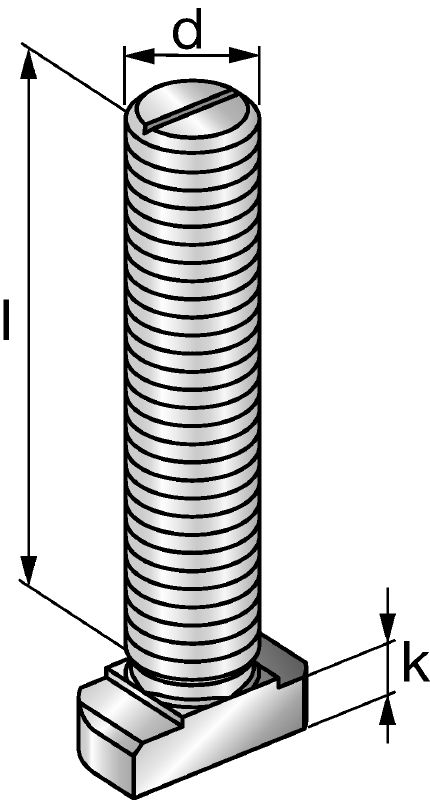

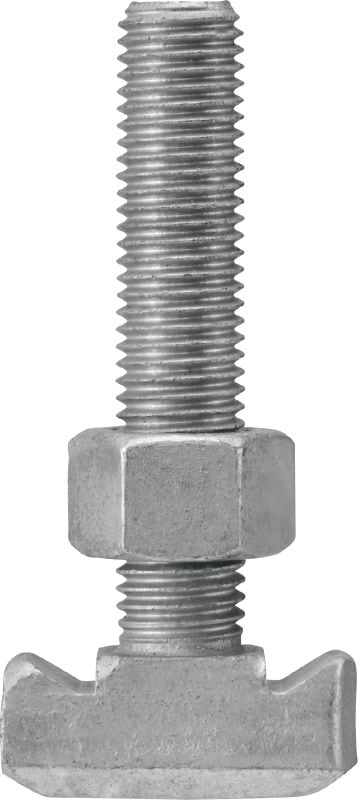

T-head bolt HBC-28/15 M12x40 8.8F #2170176
T-bolts for use with HAC-C(-P) channels
- Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
- Compatible anchor channel: HAC-C 28/15
- Anchor size: M12
Choose options
Channel profile
- HAC-C 28/15, HAC-C 38/17, HAC-C 52/34, HAC-C 54/33
Length
- 40 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
100
Discounted net
QAR 1,405.00
QAR 14.05 / 1 each
Technical Data
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Compatible anchor channel
HAC-C 28/15
Anchor size
M12
Channel profile
HAC-C 28/15, HAC-C 38/17, HAC-C 52/34, HAC-C 54/33
Length
40 mm
PROFIS software
Yes
Documents
Features & Applications
Features
- Designed for simple and quick installation in HAC-C anchor channels – no drilling needed
- Wide range of sizes and lengths available for virtually any application
- Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions
Applications
- Fastening curtain wall façade brackets to concrete slabs
- Fastening overhead MEP installations and equipment
- Fastening infrastructure in tunnels, including safety equipment and overhead lines (curved and stainless steel versions available)
- Fastening in elevator shafts, such as fixing guiderails, sliding doors or divider beams
