HDA-T Undercut anchor
Undercut anchor HDA-T M20x250/50 #339267
Ultimate-performance through-set undercut anchor for dynamic loads (zinc-plated)
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fatigue, Seismic
- Max. fixture thickness at standard embedment depth: 50 mm
Customers also searched for heavy duty fastening, fastening support heavy pipes, heavy anchor supports, anchor supports or anchoring.
Choose options
Anchor size
- M20
Standard embedment depth
- 250 mm
Max. fixture thickness at standard embedment depth
- 50 mm
Pack size
- 2 pc
Quantity
Packs
Total Pieces
2
Discounted net
QAR 1,967.22
QAR 983.61
/
1 each
Technical Data
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Seismic
Max. fixture thickness at standard embedment depth
50 mm
Fatigue loading
Yes
PROFIS software
Yes
Features & Applications
Features
- Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
- Close spacing and small edge distance thanks to low expansion forces
- Self-undercutting facilitates fast and reliable installation without the need for a separate undercutting tool or additional operations
- The resulting keying effect provides a secure hold even in cracked concrete under dynamic loading
- Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals
Applications
- Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

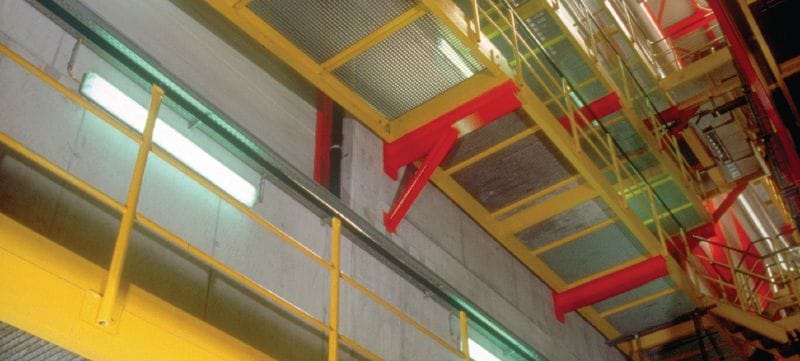

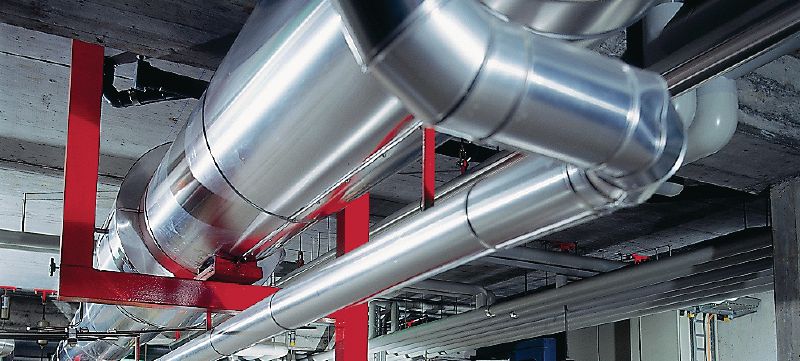

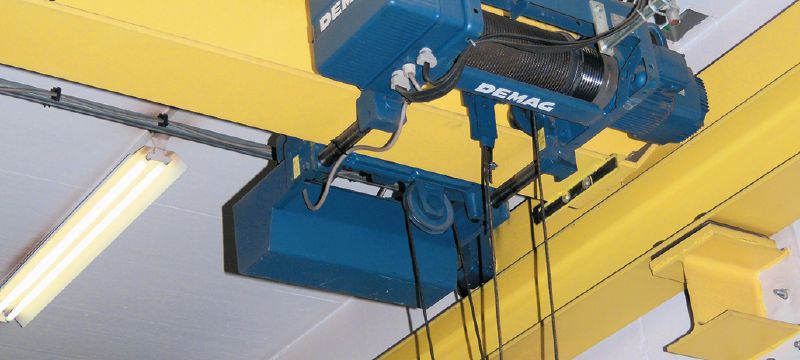

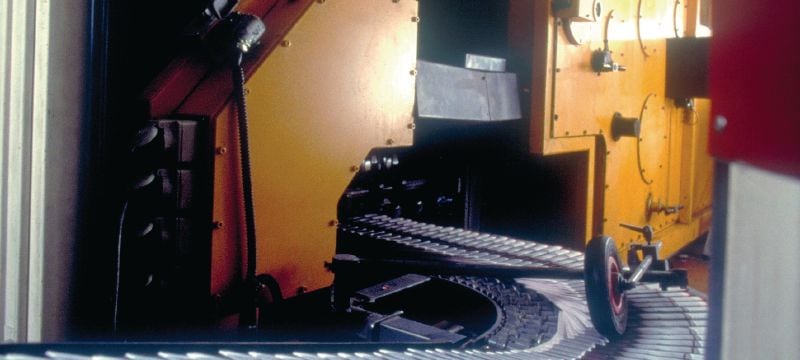

- Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
