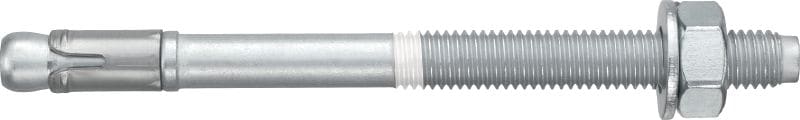

High-performance wedge anchor for everyday static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, FM (Factory Mutual)

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
Anchor length
  • 95 mm
  • 110 mm
  • 115 mm
  • 130 mm
  • 145 mm
  • 170 mm
Pack size
  • 12 pc
  • 25 pc
  • 40 pc
  • 80 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From QAR 283.75

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual)
Base materials
Concrete (cracked)
Installation tools
SIW 4AT-22 ½” Cordless impact wrench, SIW 6-22 ½” Cordless impact wrench, DD 30-W Core drill, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes

Documents

Features & Applications

Features

  • The optimised expansion cone and wedge design combined with special steel and coatings for appropriate performance in cracked and uncracked concrete
  • Suitable for installation with SIW 6AT-A22 and SI-AT-A22 module for higher productivity and safety
  • TE-CD hollow drill bits listed in ETA as a drilling method without load drop – TE-CD also allows a virtually dust-free working environment
  • Suitable for use in hammer-drilled and diamond-cored holes (DD EC-1 and DD-30W)

Applications

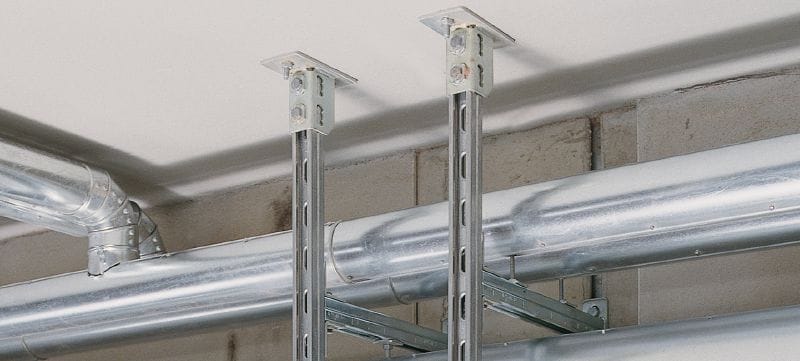

  • Wide range of safety-relevant applications

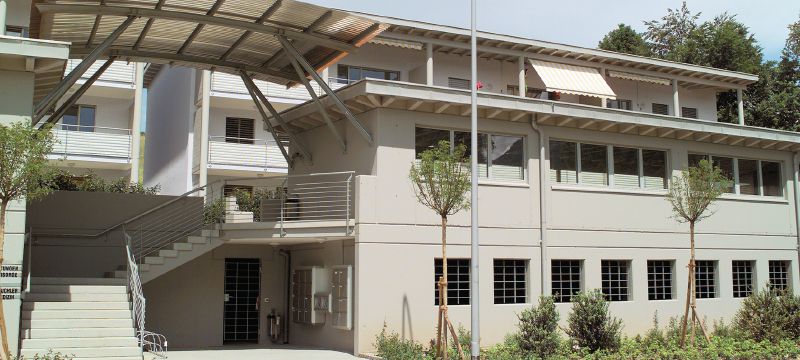

  • Facades

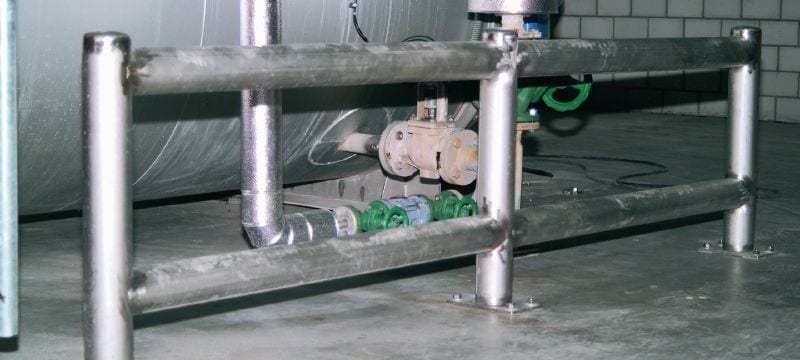

  • Hand rails

For approval or certificate information, please see individual items.
