S-BT GR Threaded Stud

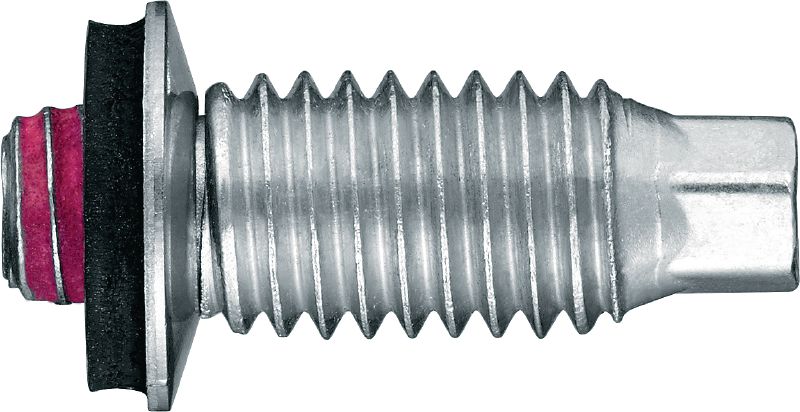

Threaded screw-in stud (Stainless Steel, Metric thread) for grating fastenings on steel and aluminum in highly corrosive environments
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Stainless steel A4(316) or equivalent
ultimate
Customers also searched for Stainless steel studs, Stainless stud, Threaded stud, Stainless threaded stud or Studs for stainless steel.
Choose options
Quantity
Total Pieces
NaN
Discounted net
Technical Data
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Material
Duplex stainless steel (1.4462)
Approvals
ABS, BV, DNV, ETA, ICC-ES, LR, RMR
Product class
Ultimate
Documents
Features & Applications
Features
- No rework necessary on coated steel – corrosion protection remains intact
- For use in highly corrosive environments (C4 and C5) – suitable for most energy and industry applications
- Suitable for use on steel with a thickness of 6 mm (1/4") and greater
- Portable, cordless system eliminates the need for long electric supply cords
- No propellant required
Applications

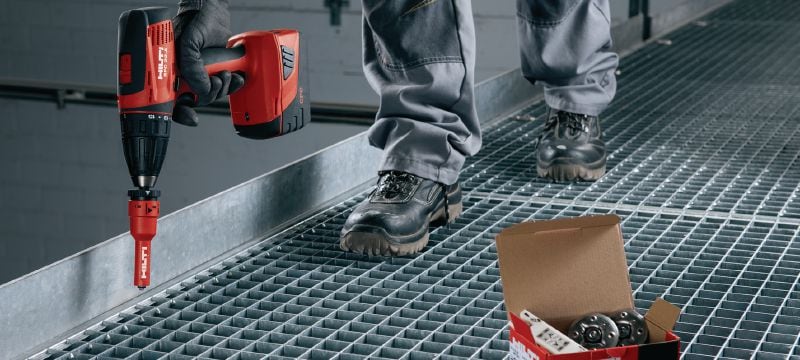

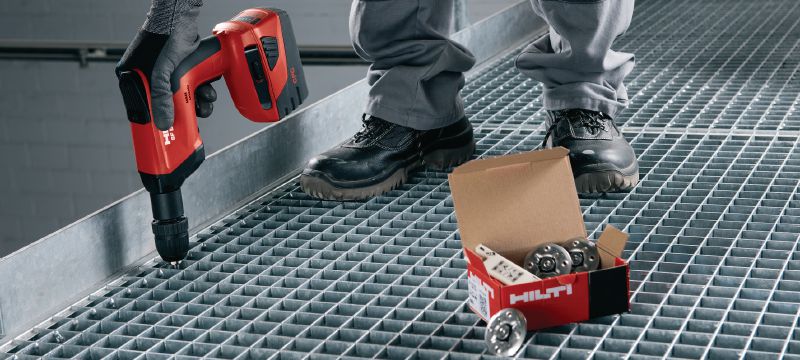

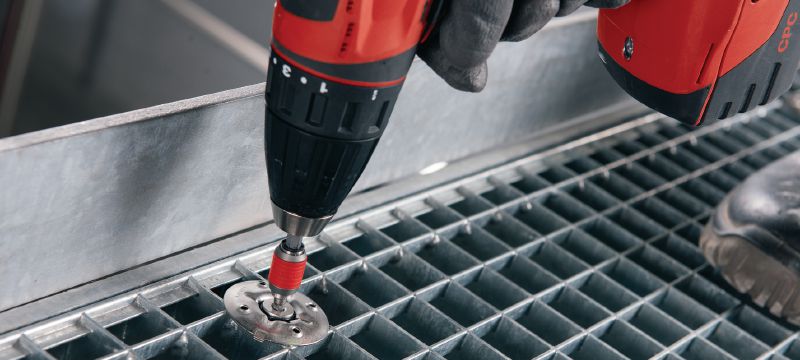

- Fastening grating to steel structures using the X-FCM-R grating disc
For approval or certificate information, please see individual items.
Related Products
Stainless steel narrow grating fastener disc for fixing narrow-mesh floor grates with threaded studs in highly corrosive environments
Calibration card for S-BT threaded screw-in studs to ensure the correct screw-in depth
