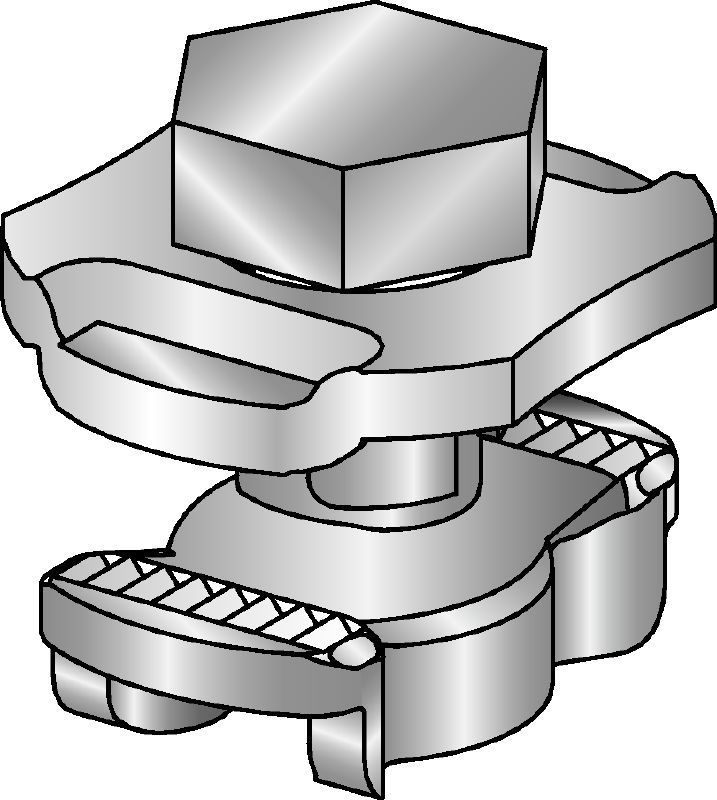

MQN Channel connector
Galvanised channel connector for joining any elements with a butterfly opening
- Product class: Premium
- Tightening torque: 40 Nm
- Material composition: Bolt: grade 8.8 - DIN EN ISO 898, Nut: QStE 380 TM, SEW 92, Plate: DD11 - DIN EN 10111
premium
Customers also searched for channel connector, galvanised connectors, glavanised connectors, connectors or metal connectors.
Technical Data
Product class
Premium
Tightening torque
40 Nm
Material composition
Bolt: grade 8.8 - DIN EN ISO 898, Nut: QStE 380 TM, SEW 92, Plate: DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Wrench size
17 mm
Documents
Features & Applications
Features
- Universal – one connection element for all MQ strut channels
- Fewer parts and high flexibility
- Universal: one pushbutton for all connectors and MQ installation channels
- No need to hold in place or prevent turning when tightening
Applications
- Connecting angles to strut channels
- Connecting strut channels and structural elements
- Connecting all MQ brackets, angles and base plates to any MQ profile
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
