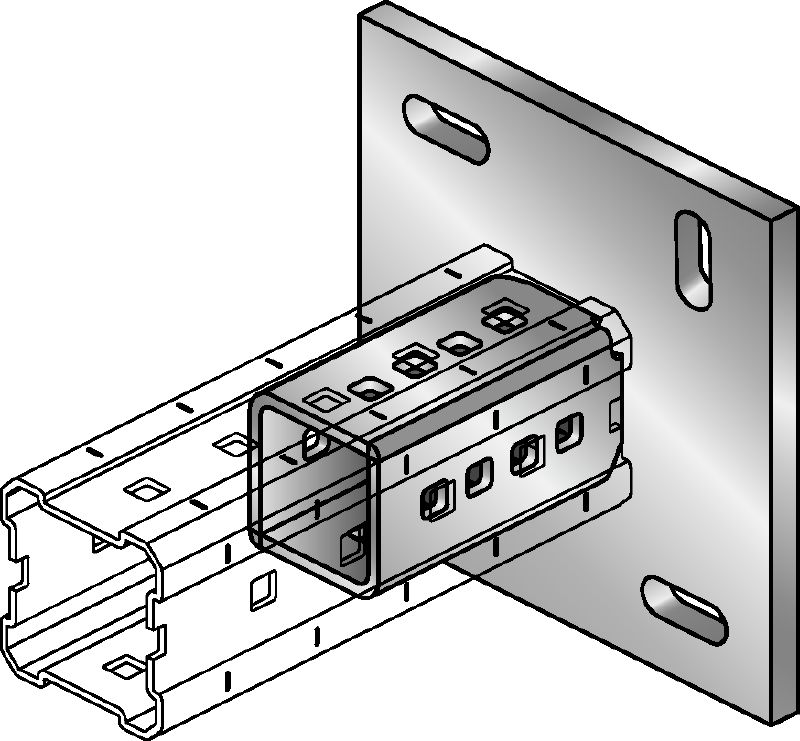

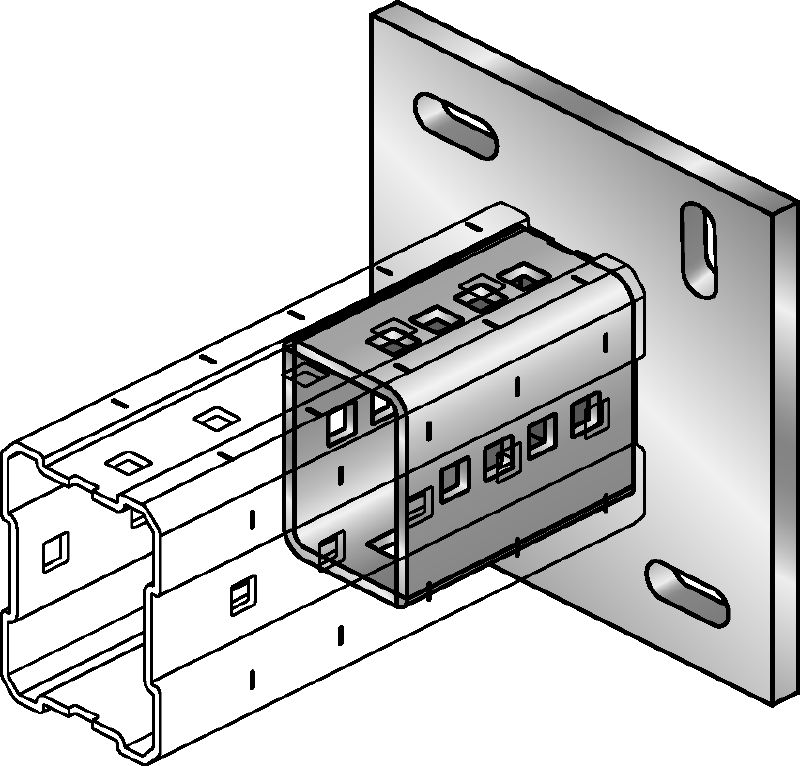

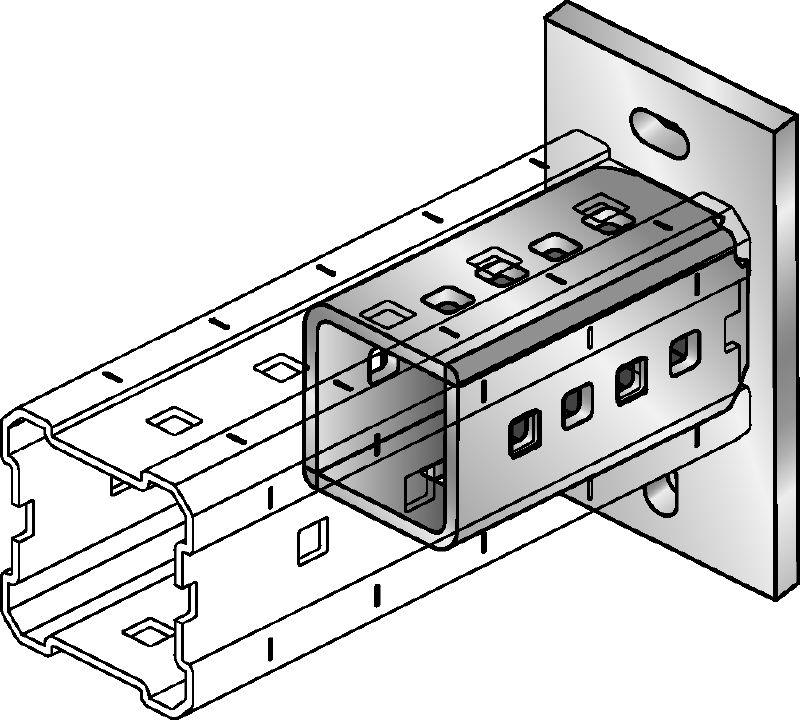

Hot-dip galvanised (HDG) baseplate for fastening MI-90 girders to concrete using two anchors

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for 3d channel systemsconnecting girderscable tray installationspiping installations or metal connectors.

Technical Data

Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Provides a strong and rigid connection
  • Concrete connector base plates can be fastened using a variety of Hilti anchors
  • Adjustable and flexible – for easier, more efficient installation
  • Designed for fast, one-person installation and extension
  • No welding required – work faster and, where possible, without hot work permits

Applications

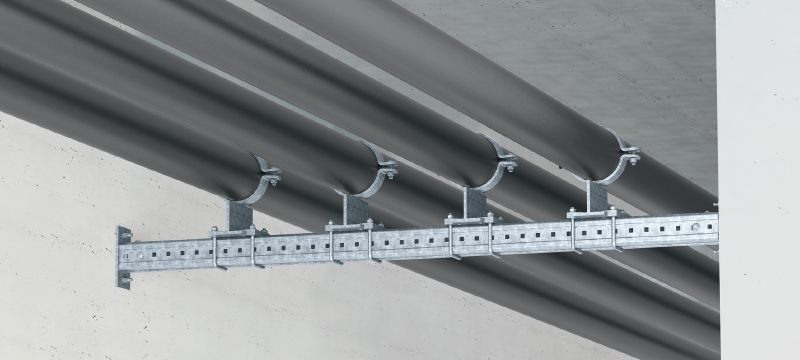

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Industrial and heavy commercial applications, eliminating the need for welding
  • Fastening to concrete walls, floors or ceilings
  • Fastening to concrete walls, floors or ceilings

For approval or certificate information, please see individual items.
