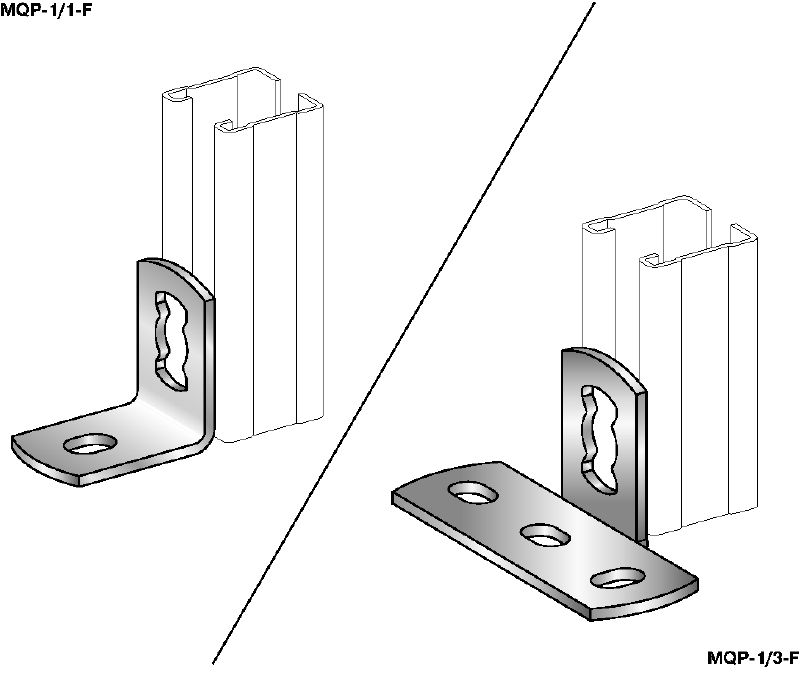

Hot-dip galvanised (HDG) channel foot for fastening channels to concrete in light/medium-duty applications

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Customers also searched for hot dipped glavanised connectorsHDG connectorsmetal connectors or Channel Systems.

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Flexibility – complete many different applications using few parts
  • Compatible with MQN-C push button channel connectors – for much faster, adaptable assembly
  • For fastening installation channels to any materials
  • Pre-assembly of the MQN HDG plus pushbutton

Applications

  • Connecting strut channels to various base materials

For approval or certificate information, please see individual items.
