Product line

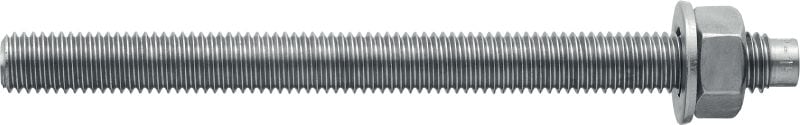

HIT-V-R

Everyday standard anchor rod for injection mortars (A4 SS)

Key technical data

More technical data

Customers also searched for anchor rods, anchor rods for concrete, anchor rods for masonry, rods for anchoring or anchoring

Features

Flexibility: approved embedment depth between 4 to 20 times rod diameter allows shallow fastenings in thin concrete slabs or walls
Productivity: use of optimal rod length and diameter saves time and money with every fastening
Universality: simplifies your anchor rod inventory by allowing use of the same rod for various applications
Approved system (ETA) for flexible embedment depth of 4 to 20 times the rod diameter for M8 to M30 rods
Head marking: Allows post-installation check for correct anchor setting – the head marking shows rod length and steel grade

Applications

Suitable for use with with all Hilti HIT injectable mortars
Suitable for fastenings in masonry in combination with Hilti HIT-HY 70
Suitable for fastenings in concrete in combination with the relevant Hilti HIT injectable adhesive mortar
Applications where embedment depth is 4x - 20x rod diameter

For approval or certificate information, please see individual items.

Product Selection & Prices

Back to results (2 of 2)

Filter products by these criteria

Anchor size

Anchor length

Define your sorting criteria

Item number	Anchor size	Anchor length	Packaging unit	Price / Unit	Quantity
Anchor rod HIT-V-R M12X150 Item number 387081 More details 1x Anchor rod HIT-V-R M12x150 assy	Anchor size M12 Anchor length 150 mm Packaging unit 10 pc	Anchor length 150 mm	Packaging unit 10 pc	Price / Unit QAR 206.76 / 10 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-R M16X150 Item number 387084 More details 1x Anchor rod HIT-V-R M16x150 assy	Anchor size M16 Anchor length 150 mm Packaging unit 5 pc	Anchor length 150 mm	Packaging unit 5 pc	Price / Unit QAR 149.31 / 5 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-R M16X200 Item number 387085 More details 1x Anchor rod HIT-V-R M16x200 assy	Anchor size M16 Anchor length 200 mm Packaging unit 5 pc	Anchor length 200 mm	Packaging unit 5 pc	Price / Unit QAR 183.69 / 5 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-R M20X260 Item number 387088 More details 1x Anchor rod HIT-V-R M20x260 assy	Anchor size M20 Anchor length 260 mm Packaging unit 5 pc	Anchor length 260 mm	Packaging unit 5 pc	Price / Unit QAR 350.91 / 5 each Ordering & product details	Quantity Piece Check availability
