HIT-V-F (5.8 hot-dip galvanized)

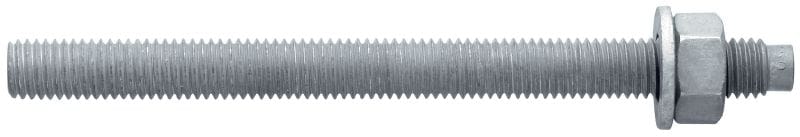

Standard anchor rod for use with injection (5.8 hot-dip galvanized)

Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.
Move cursor over image to zoom.

Click on image to zoom.

Key technical data

Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
Base materials: Concrete (cracked), Concrete (uncracked), Masonry (solid)
PROFIS software: Yes

More technical data

Customers also searched for anchor rods, anchor rods for concrete, anchor rods for masonry, rods for anchoring or anchoring

Features & Applications

Features

Flexibility: approved embedment depth between 4 to 20 times rod diameter allows shallow fastenings in thin concrete slabs or walls
Productivity: use of optimum rod length and diameter saves time and money in each fastening job
Universality: simplifies your anchor rod inventory by allowing use of the same rod for various applications
Approvals: system with worldwide approval (ETA and ICC) for flexible embedment depths from 4 to 20 times the rod diameter for M8 to M30 rods
Head marking: Enables post-installation check of correct anchor setting - the head marking shows rod length and steel grade

Applications

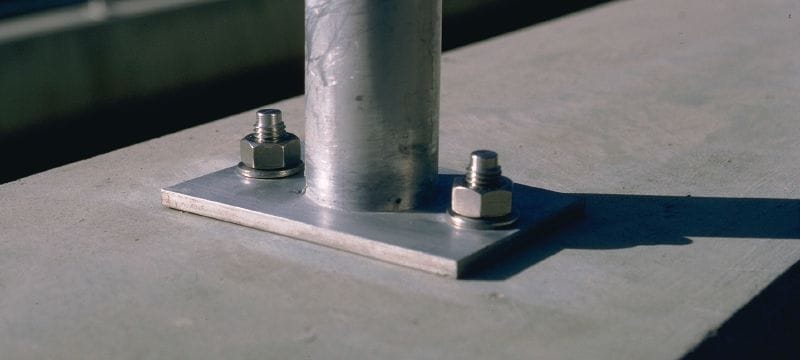

Suitable for fastenings in concrete in conjunction with the relevant Hilti HIT injectable adhesive anchoring systems

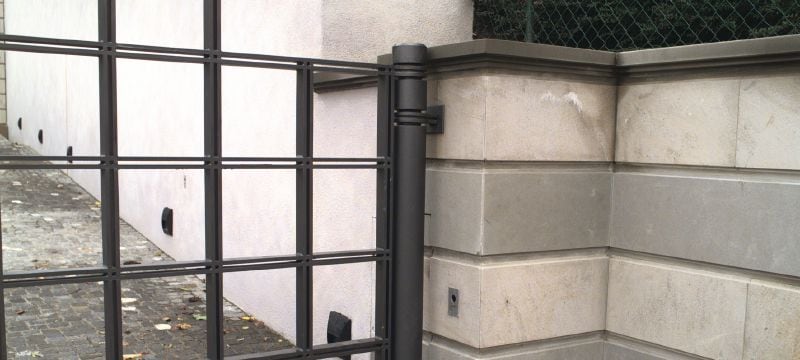

Suitable for fastenings in masonry in combination with Hilti HIT-HY 70
For embedment depths of 4x - 20x rod diameter

Products in this group can be designed with Hilti PROFIS Software Suite.

For approval or certificate information, please see individual items.

Product Selection & Prices

Back to results (2 of 2)

Filter products by these criteria

Anchor size

Anchor length

Define your sorting criteria

Item number	Anchor size	Anchor length	Packaging unit	Price / Unit	Quantity
Anchor rod HIT-V-F M12x150 Item number 409557 More details 1x Anchor rod HIT-V-F M12x150 assy	Anchor size M12 Anchor length 150 mm Packaging unit 10 pc	Anchor length 150 mm	Packaging unit 10 pc	Price / Unit QAR 51.82 / 10 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-F M16x150 Item number 409560 More details 1x Anchor rod HIT-V-F M16x150 assy	Anchor size M16 Anchor length 150 mm Packaging unit 5 pc	Anchor length 150 mm	Packaging unit 5 pc	Price / Unit QAR 44.49 / 5 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-F M16x200 Item number 409561 More details 1x Anchor rod HIT-V-F M16x200 assy	Anchor size M16 Anchor length 200 mm Packaging unit 5 pc	Anchor length 200 mm	Packaging unit 5 pc	Price / Unit QAR 56.24 / 5 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-F M16x300 Item number 409562 More details 1x Anchor rod HIT-V-F M16x300 assy	Anchor size M16 Anchor length 300 mm Packaging unit 5 pc	Anchor length 300 mm	Packaging unit 5 pc	Price / Unit QAR 78.31 / 5 each Ordering & product details	Quantity Piece Check availability
Anchor rod HIT-V-F M20x260 Item number 409565 More details 1x Anchor rod HIT-V-F M20x260 assy	Anchor size M20 Anchor length 260 mm Packaging unit 5 pc	Anchor length 260 mm	Packaging unit 5 pc	Price / Unit QAR 109.19 / 5 each Ordering & product details	Quantity Piece Check availability

Technical Data

Documents & Videos

Consulting & Support

HIT-V-F (5.8 hot-dip galvanized)

Standard anchor rod for use with injection (5.8 hot-dip galvanized)

Features & Applications

5 of 5 items (variants & sets)All prices discounted net
