TE-CD (SDS Plus) Metric hammer drill bit
Hammer drill bit TE-CD 14/37 #2018942
Ultimate SDS Plus (TE-C) hollow drill bit for virtually dust-free hammer drilling in concrete
- Connection end: TE-C (SDS-plus)
- Base material: Reinforced concrete, Concrete
- Working mode: Hammer drilling
ultimate
Customers also searched for drilling, drill bit, drilling holes, demolition or tools & equipment.
Choose options
Diameter
- 14 mm
Working length
- 240 mm
Length
- 370 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
QAR 471.66
QAR 471.66 / 1 each
Technical Data
Connection end
TE-C (SDS-plus)
Base material
Reinforced concrete, Concrete
Working mode
Hammer drilling
Head shape
Multi cutter
Head material composition
Tungsten carbide
Need vacuum cleaner
Yes
Diameter
14 mm
Length
370 mm
Working length
240 mm
Product class
Ultimate
Features & Applications
Features

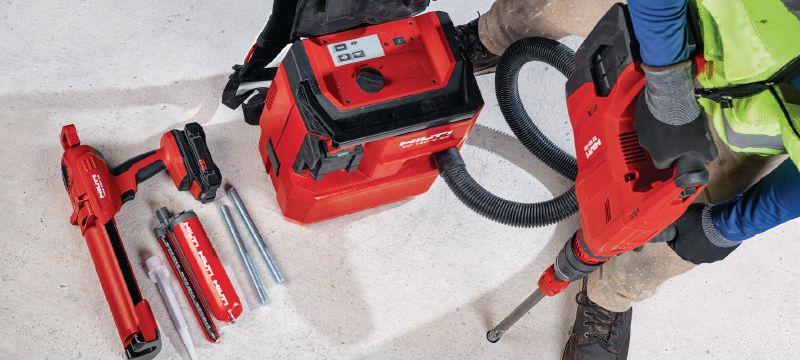

- Drilling and hole cleaning in one step
- Optimum hole cleaning for consistent anchor setting
- Robustness, lifetime and drilling speed equal to TE-YX drill bits
- Minimises snagging or sticking when drilling into rebar
Applications

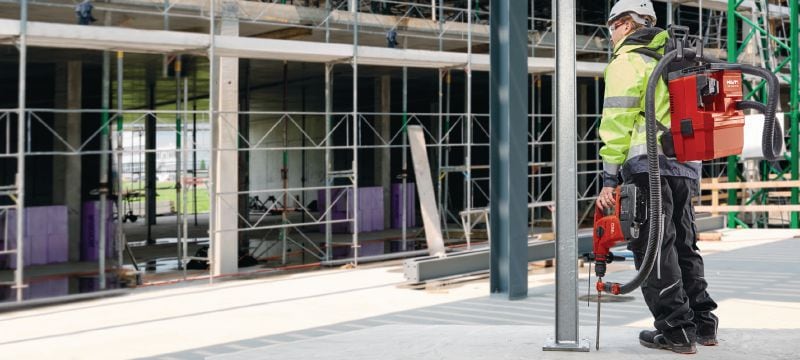

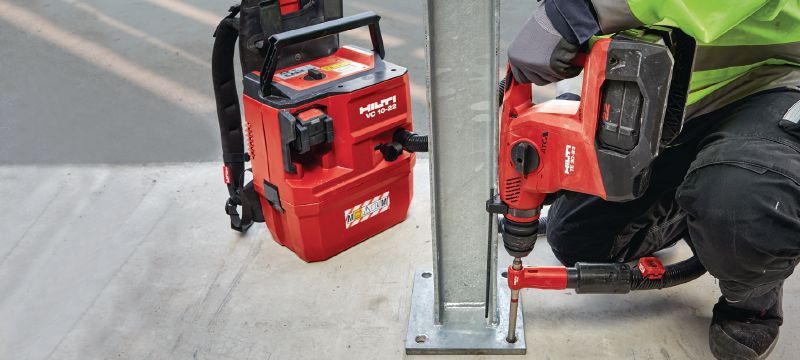

- Drilling holes for anchoring structural steel connections (e.g. steel columns, beams)
- Drilling holes for structural connections with post-installed rebar
- Drilling holes for anchoring secondary steel structures (e.g. staircases, steel ledgers)
- Drilling holes for structural renovation or upgrading with post-installed rebar
- Drilling holes for substitution of misplaced or missing rebars
