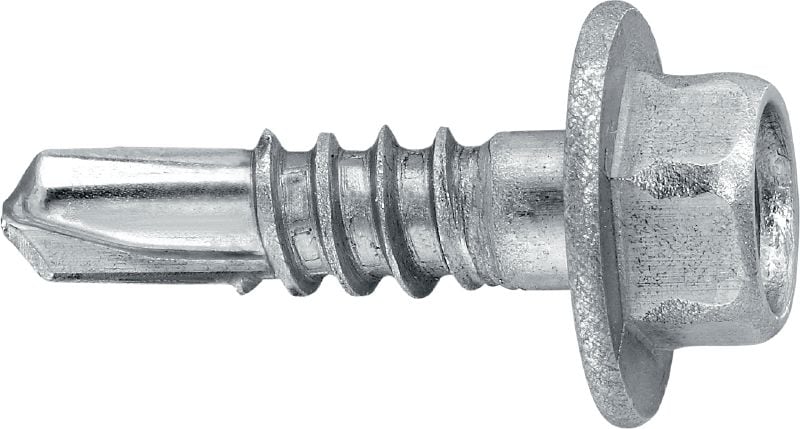

S-AD 01 S Self-drilling metal screws

Self-drilling screw (A2 stainless steel) without washer for aluminium façade fastenings (up to 4 mm)

Screw drive/recess type: Hexagon 8
Washer size: 13 mm
Base materials: Aluminium

premium

Technical Data

Screw drive/recess type

Hexagon 8

Washer size

13 mm

Base materials

Aluminium

Environmental conditions

Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution

Screw diameter d

5.5 mm

Length

19 mm

Screw head diameter

10 mm

Product class

Premium

Washer type

none

Documents

Features & Applications

Features

Self-drilling screw for fast assembly in one step
Fast and robust drill tip
For more reliable fastenings with defined load values
Free-spin zone under the head for more reliable fixed and floating connections
Attractive final appearance – screw head can be coloured to match the façade

Applications

Fastening aluminium façade systems
Stainless steel (A2) for fastening in mildly corrosive environments
Thin metal-to-metal connections (up to 4 mm)
Fastening aluminium brackets to aluminium profiles

For approval or certificate information, please see individual items.
