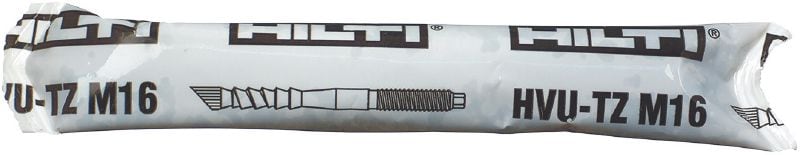

HVU-TZ Anchor capsule
Ultimate-performance foil adhesive capsule for anchoring in concrete with dynamic loads
- Approvals / test reports: ETA, Fire
- Base material condition: Dry
- PROFIS software: Yes
Customers also searched for anchoring structural steel, anchoring road barriers, anchors or anchoring.
Choose options
Anchor size
- M16
- M20
Standard embedment depth
- 125 mm
- 195 mm
Pack size
- 4 pc
- 16 pc
Quantity
Packs
Total Pieces
1
Discounted net
From QAR 182.76
Technical Data
Approvals / test reports
ETA, Fire
Base material condition
Dry
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
In-service temperature – range
-40 - 80 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
No
Installation direction
All
Cleaning procedures
Manual cleaning, Non-cleaning
Features & Applications
Features
- Tested according to standard temperature curve (ISO 834) and the German tunnel temperature curve (ZTV-ING, part 5)
- Formulated for flexibility – you can use these adhesive capsules for a wide range of load conditions, concrete types and approval requirements
- Suitable for use in cracked concrete
- Suitable for dynamic loading subject to fatigue and shock
- Flexible foil capsule instead of glass: a robust product for real jobsite conditions
Applications

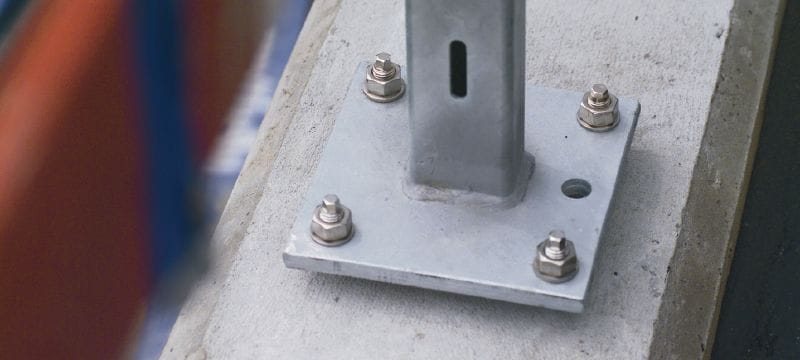

- Heavy-duty fastenings in cracked concrete (steel structures, machinery, crash and noise barriers, curtain wall structures, railings.)
- For safety-relevant fastenings
- Dynamic loads
For approval or certificate information, please see individual items.
