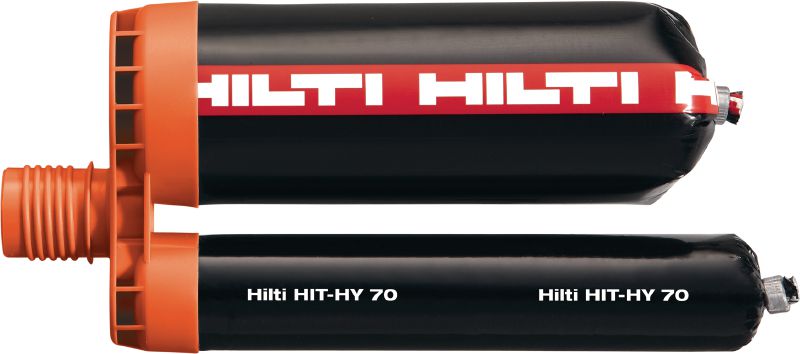

HIT-HY 70 Adhesive anchor

Ultimate-performance hybrid mortar for all masonry materials

  • Base materials: Masonry (hollow), Masonry (multi wythe brick/unreinforced masonry), Masonry (solid)
  • Base material condition: Dry, Wet
  • Approvals / test reports: DIBt

Customers also searched for anchoring in brickanchoring in masonryanchoring mortaradhesive mortar or anchoring.

Technical Data

Base materials
Masonry (hollow), Masonry (multi wythe brick/unreinforced masonry), Masonry (solid)
Base material condition
Dry, Wet
Approvals / test reports
DIBt
IBC compliance
IBC 2006, IBC 2009
Seismic loading
No
Fatigue loading
No
Fire resistance
Yes
PROFIS software
No
Anchoring elements
HAS threaded rods, HIS-N internally threaded sleeves, HIT-IC internally-threaded rods, HIT-V threaded rods, Other fasteners
Cleaning procedures
Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 72 °C
Free of styrene
Yes

Documents

Features & Applications

Features

  • Provides strong, reliable and easy-to-install fastenings in a variety of masonry materials
  • HIT-SC composite sleeves allow greater flexibility through use of multiple sleeve combinations and minimise mortar wastage by accurate dosing in hollow base materials
  • For use in indoor and outdoor applications in dry or wet drilled holes
  • Fastenings are free of expansion forces and have technical approvals

Applications

  • Applications in hollow and solid masonry
  • Suitable for glass structures
  • For heavy bracing on insulated materials in applications such as the installation of sun shades
  • For wall ties
  • Refurbishment and renovation

For approval or certificate information, please see individual items.
