HIT-HY 200-R Adhesive anchor

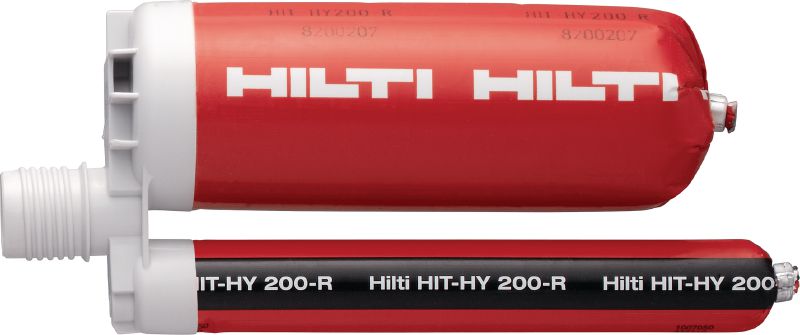

Injectable mortar HIT-HY 200-R 500/2/EE #2045032

330ml, Injectable adhesive
69293.tif
69292.tif
HY 200-A
HY 200-A

Ultimate-performance injectable hybrid mortar with approvals for rebar connections and heavy-duty anchoring

  • Approvals / test reports: ETA
  • Seismic loading: Yes
  • Fatigue loading: No

Customers also searched for anchoring structural steel, anchoring staircases, anchoring mortar, adhesive mortar or anchoring.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 127,003.20
QAR 264.59
/
1 each

Technical Data

Approvals / test reports
ETA
Seismic loading
Yes
Fatigue loading
No
Fire resistance
Yes
PROFIS software
Yes
Storage and transportation temperature range
5 - 25 °C
Shelf life from date of manufacture (at 23°C and 50% relative humidity)
12 months

Documents

pdf ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Jul-2023, English, German, Polish [ 16.3 MB ]
pdf ETA-15/0195_HIT-HY-200_A/R_Anchor_TR029&TR045_50years_112015_ML, German, English, French [ 11.6 MB ]
pdf ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German [ 3.4 MB ]
pdf ETA-18/0978, Hilti HIT-HY 200-AV3/-RV3 with HAS-D for fatigue, ML, English, German, Polish [ 18.3 MB ]
pdf ETA-15/0419_HIT-HY-200_A/R with HIT-Z_Anchor_TR029&TR045_50years_112021_ML, German, English [ 7.2 MB ]

Features & Applications

Features

  • No hole cleaning required with the revolutionary new HIT-Z anchor rod

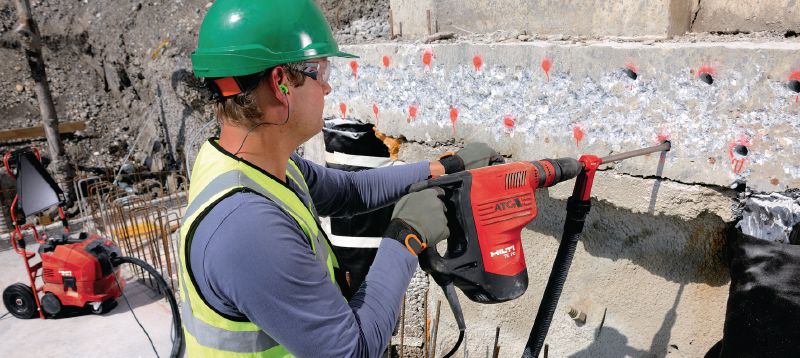

  • Automatic hole cleaning with TE-CD and TE-YD drill bits in combination with Hilti vacuum cleaners
  • Fulfils the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
  • Working time optimised for rebar and deep anchoring applications
  • Post-installed rebars perform like cast-in connections

Applications

  • Anchoring structural steel connections (e.g. steel columns, beams)
  • Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
  • Anchoring safety barriers, balustrades, fire escape staircases
  • Seismic strengthening / retrofitting and bracing of reinforced concrete buildings
  • Structural splices / straight connections with post-installed rebars
