X-HVB Shear connector

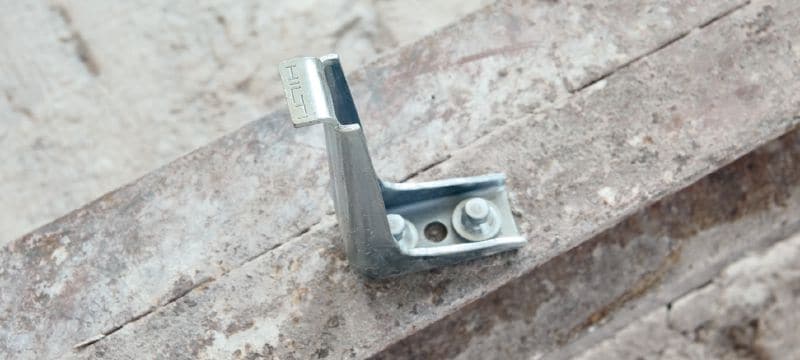

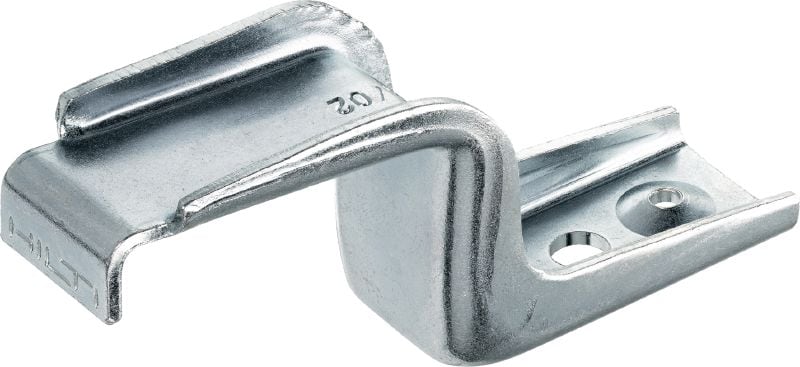

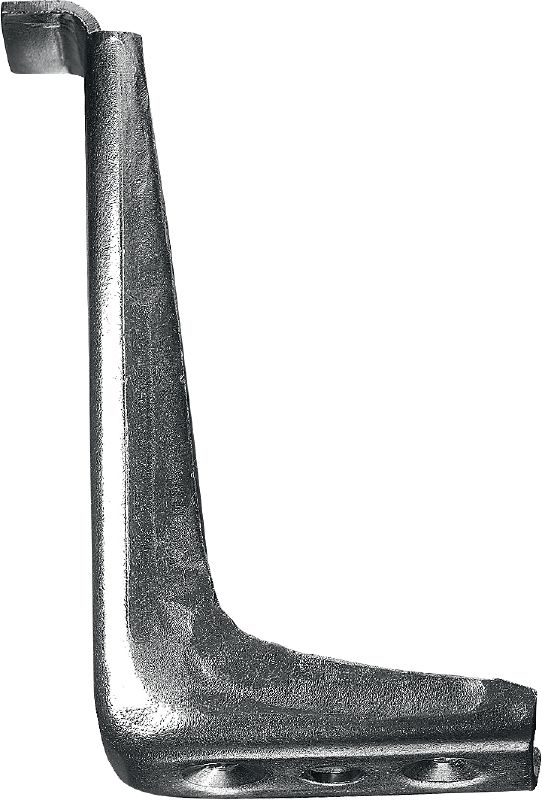

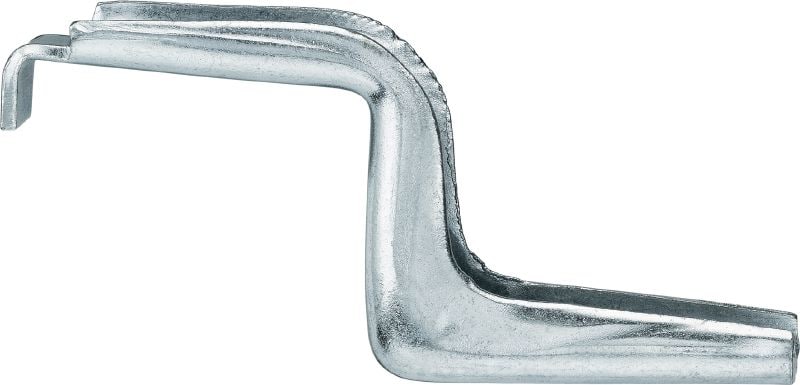

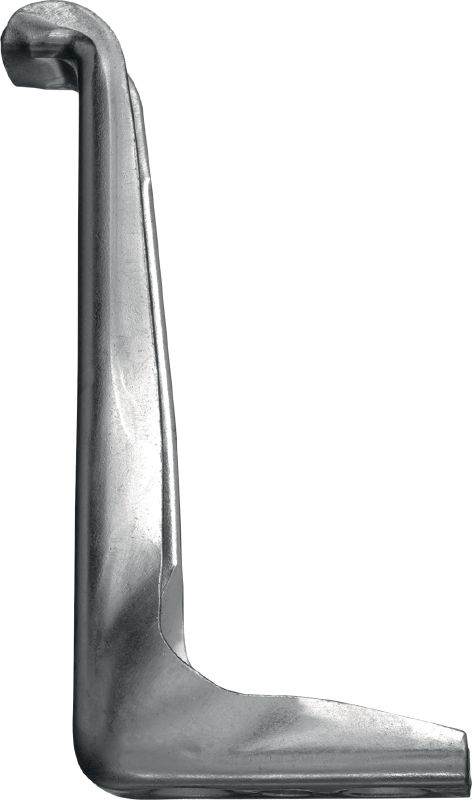

Shear connector X-HVB 110 #348180

Shear connector for composite beam constructions

  • Application: Metal deck
  • For use with (tools): DX 76, DX 76 HVB, DX 76 PTR
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Customers also searched for Nelson studsShear studsDecking studs or Composite slab studs.

Choose options

Height
  • 113 mm
Fastener shank length
  • 26 mm
Length
  • 63 mm
Pack size
  • 200 pc
Product options
Quantity
Packs
Total Pieces
200
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

QAR 4,666.00

QAR 23.33 / 1 each

Technical Data

Application
Metal deck
For use with (tools)
DX 76, DX 76 HVB, DX 76 PTR
Corrosion protection
Galvanised zinc coated <20 µm
Material composition
Carbon steel Rm = 295-350 N/m2
Environmental conditions
Dry indoor
Approvals
A-NORM, DIBt, SCI, SOCOTEC, SZS
Base materials
Steel
Product class
Ultimate

Documents

Features & Applications

Features

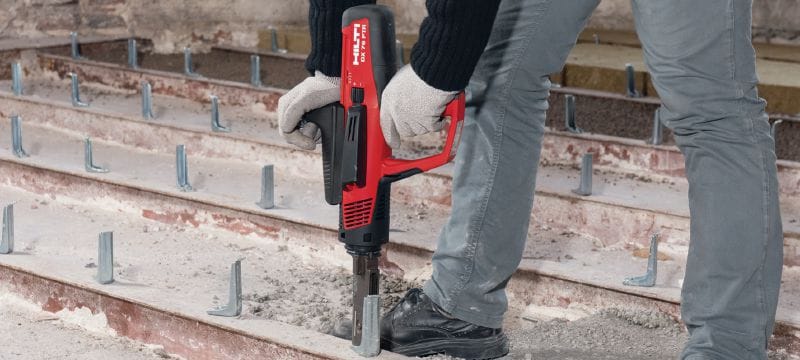

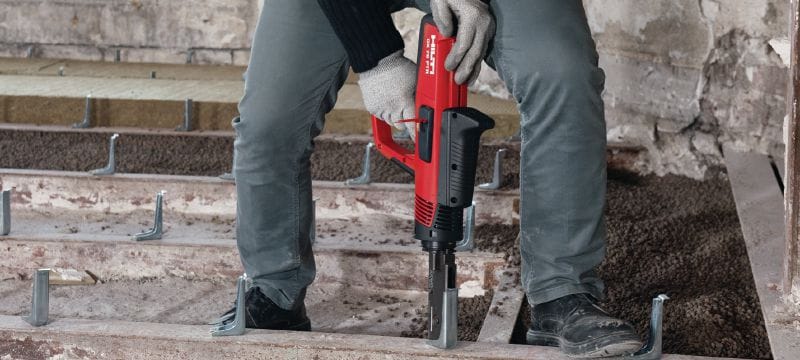

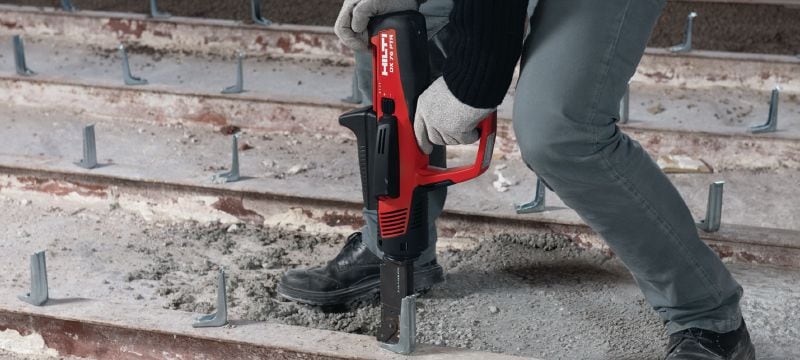

  • Economical alternative to stud welding – no expensive equipment required

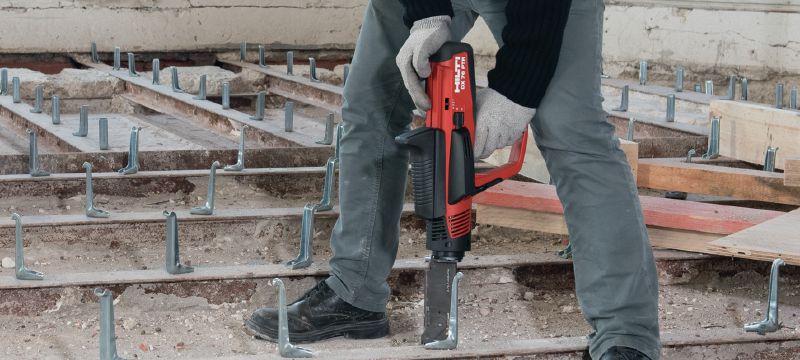

  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables

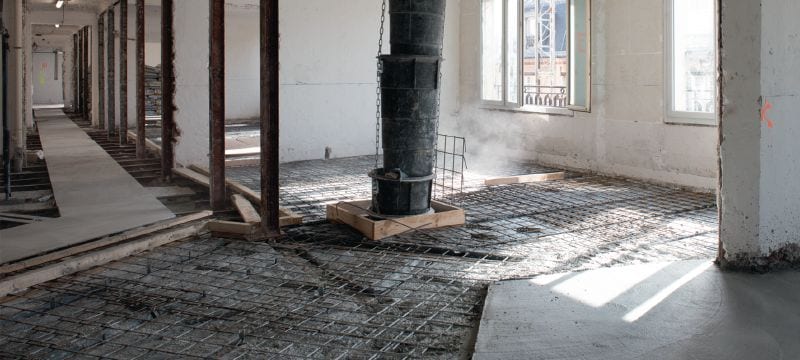

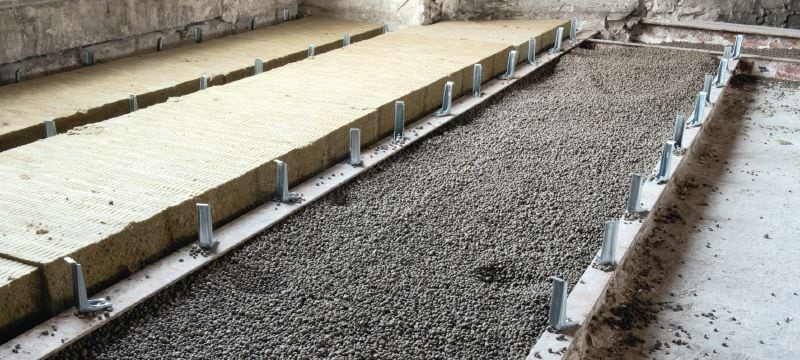

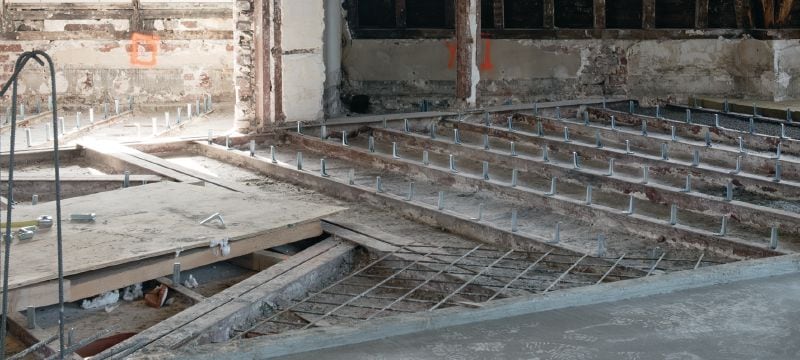

  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick set-up and usable in all weather conditions

Applications

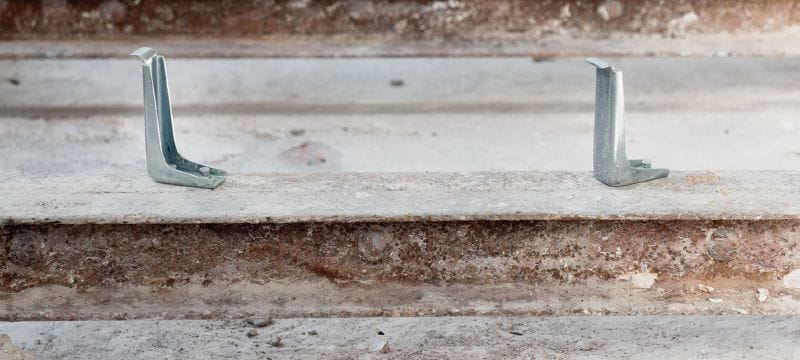

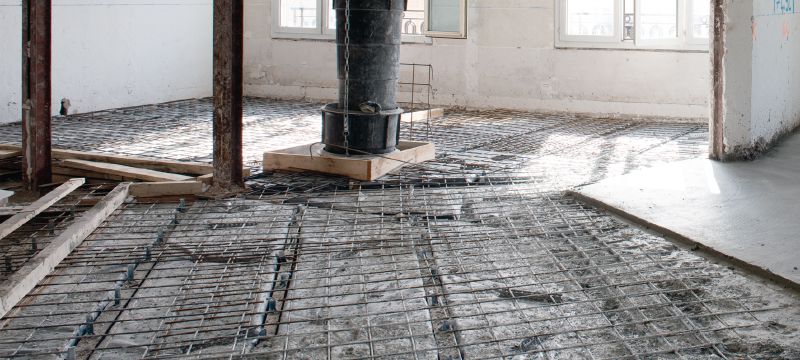

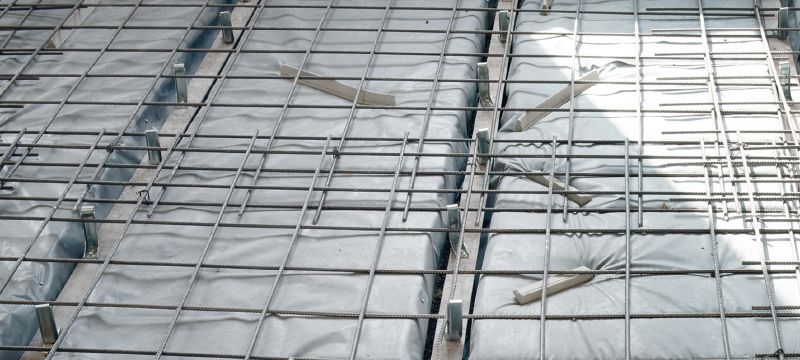

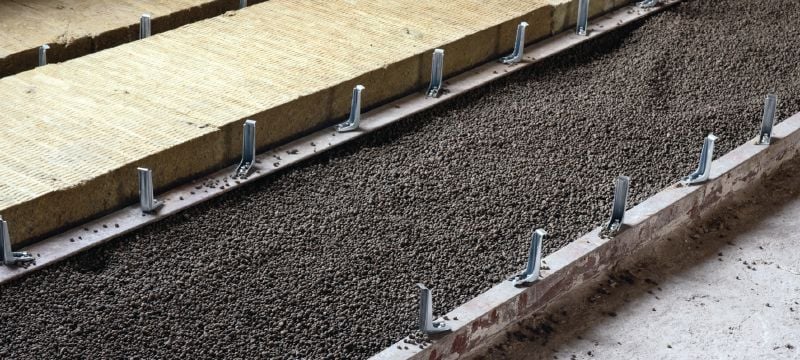

  • Holding concrete slabs to steel structures to resist shear forces and increase shear loading capacity in composite structures
  • Can be used on galvanised and painted beams
