HUS4-C Screw anchor

Screw anchor HUS4-C 10x90 35/15/- #2293587

Configurator
Technical Data
Documents
Features & Applications
Related Products
L144885 (1918697)
L069403.tiff
L156305_cropped (4393582)

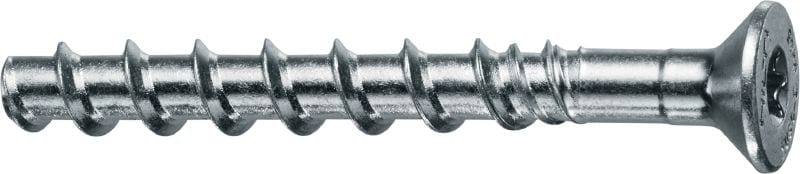

High-performing countersunk head screw anchor for fastening to concrete and masonry (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk
  • Bit size: T50

Choose options

Anchor size
  • 10 mm
Anchor length
  • 90 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 614.50
QAR 12.29
/
1 each

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk
Bit size
T50
Drill bit diameter
10 mm
Approvals / test reports
ETA, Fire, Seismic
Reusable (and removable)
Not possible
PROFIS software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Test Report
Brochure
Sustainability Documentation
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf ER-969 HUS4_IAPMO_Evaluation_Report, English [ 1.1 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

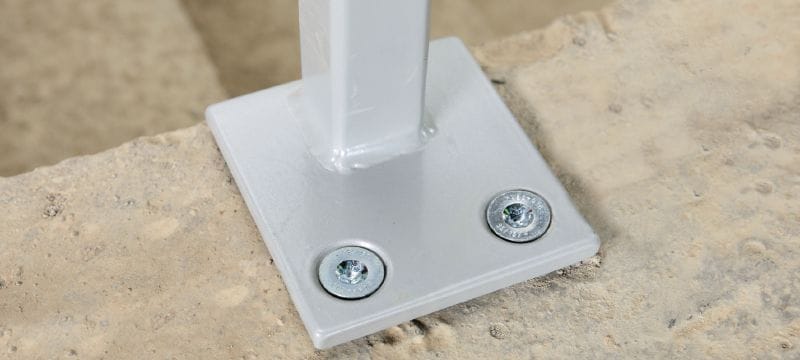

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
