HUS3-C 8/10 Screw anchor

HUS3 screw anchor. The solution for contractors.

HUS3 screw anchor. Adjustability without load drop.

HUS3 screw anchor. Performance on rebar

HUS3 screw anchor Performance in old concrete

HUS3 screw anchor. The specifier’s choice.

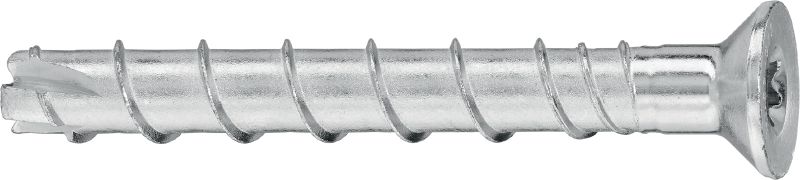

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, countersunk head)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Countersunk Torx
Approvals / test reports: ETA, Fire, Seismic

Customers also searched for screw anchors, anchoring railings, anchors, reusable anchors or anchoring.

Choose options

Anchor size

8 mm
10 mm

Anchor length

65 mm
75 mm
90 mm

Pack size

50 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From QAR 378.50

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Countersunk Torx

Approvals / test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Manual cleaning

PROFIS software

Yes

Environmental conditions

Dry indoor

Material composition

Steel, zinc-plated (min. 5 µm)

Tested/approved for diamond drilling

No

Documents

Features & Applications

Features

Higher productivity – less drilling and fewer operations than with conventional anchors
Countersunk head for neat appearance when fastening through in-place parts
Can be set more reliably without need for a torque wrench
Three embedment depths for maximum design flexibility
Adjustable screw: adjustability is included in the ETA approval

Applications

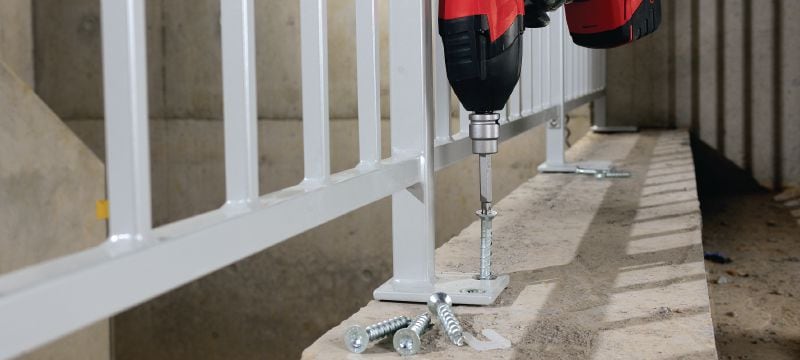

Railings and balustrades
Architectural metal
Glazing

For approval or certificate information, please see individual items.
