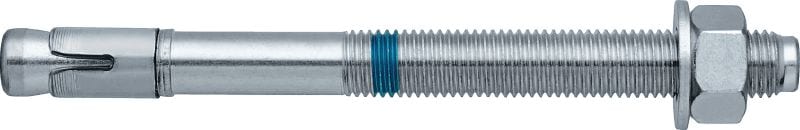

HSA Wedge anchor

HSA stud anchor (Segmentanker)

HSA stud anchor (Segmentanker)

High-performance wedge anchor for everyday static in uncracked concrete (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Externally threaded
Approvals / test reports: ETA

Customers also searched for standard expansion anchor, anchoring in uncracked concrete, anchoring high loads, anchors or anchoring.

Choose options

Anchor size

M6
M8
M10
M12
M16
M20

Anchor length

50 mm
68 mm
70 mm
83 mm
85 mm
98 mm
100 mm
102 mm
113 mm
115 mm
117 mm
137 mm
145 mm
170 mm
182 mm

Pack size

10 pc
16 pc
25 pc
40 pc
50 pc
80 pc
100 pc
200 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From QAR 4.89

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Externally threaded

Approvals / test reports

ETA

Type of fastening

Pre-fastening, Through-fastening

Installation tools

SIW 4AT-22 ½” Cordless impact wrench, SIW 6-22 ½” Cordless impact wrench

PROFIS software

Yes

Documents

Features & Applications

Features

First ETA-compatible stud anchor for torque-controlled setting using an impact wrench and Hilti torque bar for higher productivity in serial applications
Excellent edge and spacing distances
3 embedment depths offering maximum flexibility

Applications

Wide range of fastening applications in un-cracked concrete
Handrails and balustrades
Ladders and staircases
Guard rails

For approval or certificate information, please see individual items.
