X-C MX Concrete nails (collated)
Premium collated nails for fastening to concrete using powder-actuated tools
- Base materials: Concrete (soft), Masonry (solid limestone brick)
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
standard
Customers also searched for concrete nails, collated nails, drywall track, nails or direct fastening.
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 351, DX 5, DX 6
Product class
Standard
Documents
Features & Applications
Features
- Nail for fastenings to concrete
- Premium fastener for attaching a variety of thin materials to masonry block and concrete
- Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
- Best suited to fastening to concrete with a hardness of up to 6,000 psi

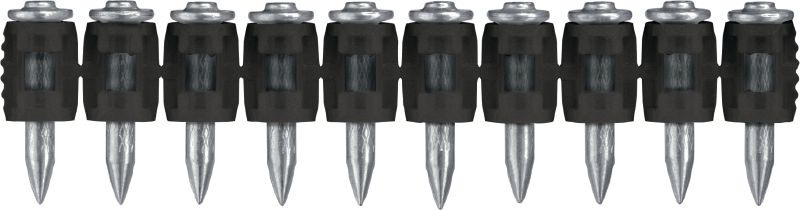

- Strips of 10 collated nails – for extremely high productivity and easier fastener loading
Applications

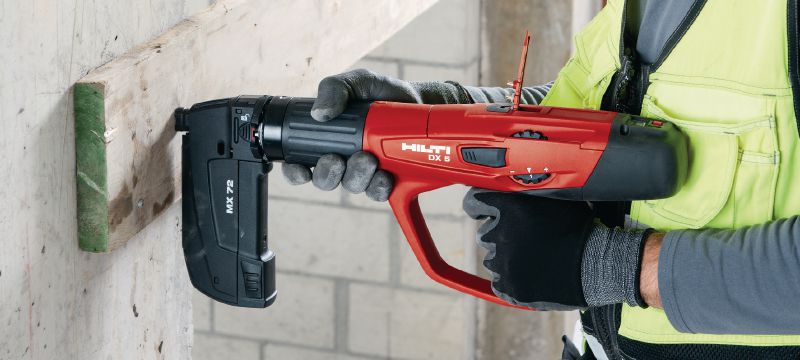

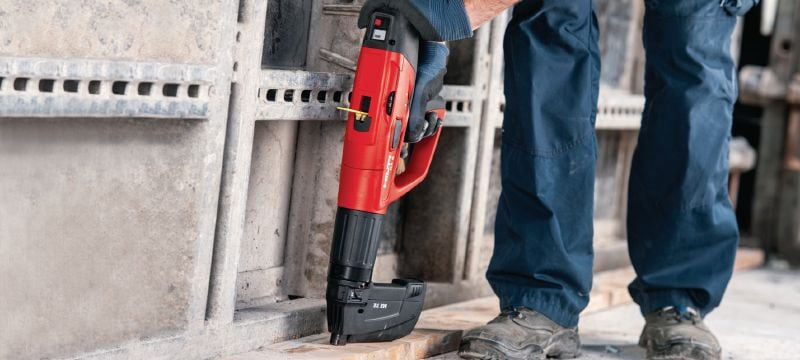

- Fastening wood to concrete, e.g. formwork boards, safety barriers, etc.
- Fastening thin wood profiles to concrete

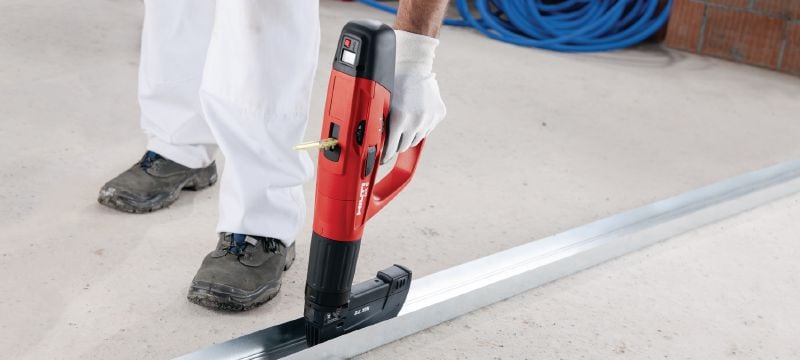

- Attaching metal track for plasterboard/dry lining to masonry block and concrete

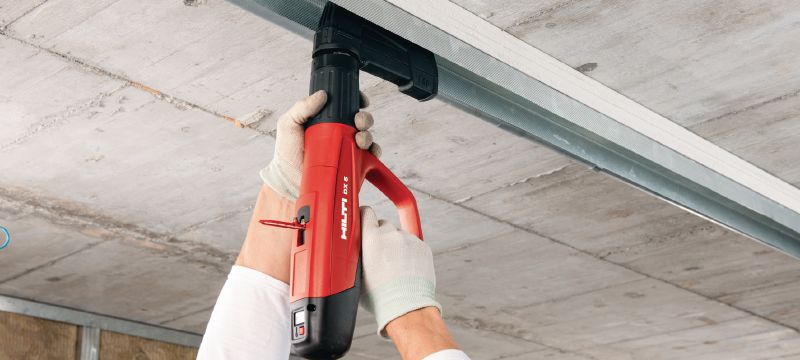

- Fastening HVAC duct strapping or suspended ceilings to concrete
- Fastening termination bars to secure waterproofing membrane or moisture barriers
For approval or certificate information, please see individual items.
