X-ENP MXR Metal deck nails

Sheet metal nail X-ENP-19 L15MXR #283508

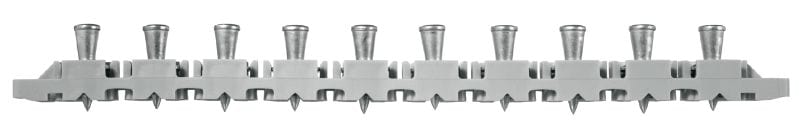

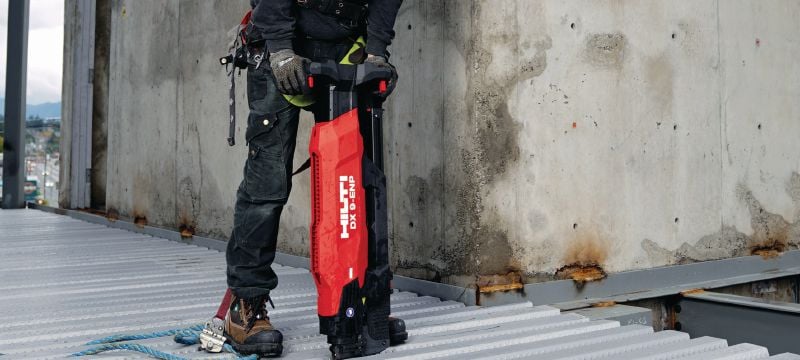

Collated nail for fastening metal decks to steel structures using the DX 9-ENP powder-actuated tool

Base materials: Steel
Minimum thickness of base material (steel): 6 mm
Corrosion protection: Galvanised zinc coated <20 µm

ultimate

Choose options

Fastener shank length

19 mm

Pack size

1000 pc

Product options

Quantity

Packs

Total Pieces

1000

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

QAR 6,470.00

QAR 6.47

1 each

Technical Data

Base materials

Steel

Minimum thickness of base material (steel)

6 mm

Corrosion protection

Galvanised zinc coated <20 µm

Environmental conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

4.5 mm

Washer size

15 mm

Point type

Ballistic point

Approvals

ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL

For use with (tools)

DX 9

Product class

Ultimate

Documents

pdf X-ENP Data Sheet, English, German, French, Italian, Polish, Spanish [ 3.1 MB ]

pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

Significantly faster and safer fastening system compared to welding
Fully knurled tip provides high strength capacity, shear and tension
Proven system with several worldwide approvals for siding and decking
No pre-drilling required for any approved steel base material regardless of profile thickness and grade
Significantly faster fastening system compared to single screws, particularly in thicker base materials
