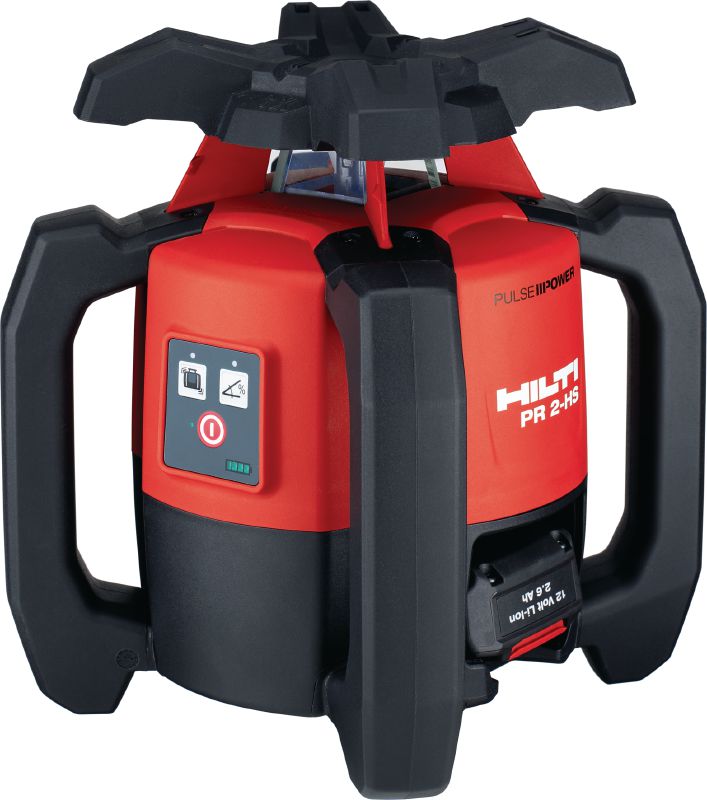

PR 2-HS A12 Outdoor rotating laser level

Robust outdoor rotary laser level for horizontal levelling

  • Accuracy: ±0.5 mm at 10 m
  • Operating range with laser receiver (diameter): 2 - 600 m
  • Laser class: <4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)

Technical Data

Accuracy
±0.5 mm at 10 m
Operating range with laser receiver (diameter)
2 - 600 m
Laser class
<4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
± 5 °
Rotation speed
300 rpm
Operating temperature range
-20 - 50 °C
Maximum operating time
16 h

Documents

Features & Applications

Features

  • One button, one function design makes this rotating laser extremely easy to use
  • Built to last – engineered to US Military standards (MIL-STD-810G) with head-mounted bumpers, four shock-absorbing handles and IP66 protected housing to maintain laser accuracy in rough jobsite conditions
  • Lithium-ion battery, featuring Cordless Power Care (CPC) for longer-lasting power output, charges within 35 minutes
  • Extended 12 cm laser receiver window for quick detection of the laser beam over the entire working range
  • PulsePower technology enables clear laser visibility even in bright daylight

Applications

  • Excavation
  • Levelling formwork and pouring concrete
  • Transferring and checking reference heights
  • Setting out slopes

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
