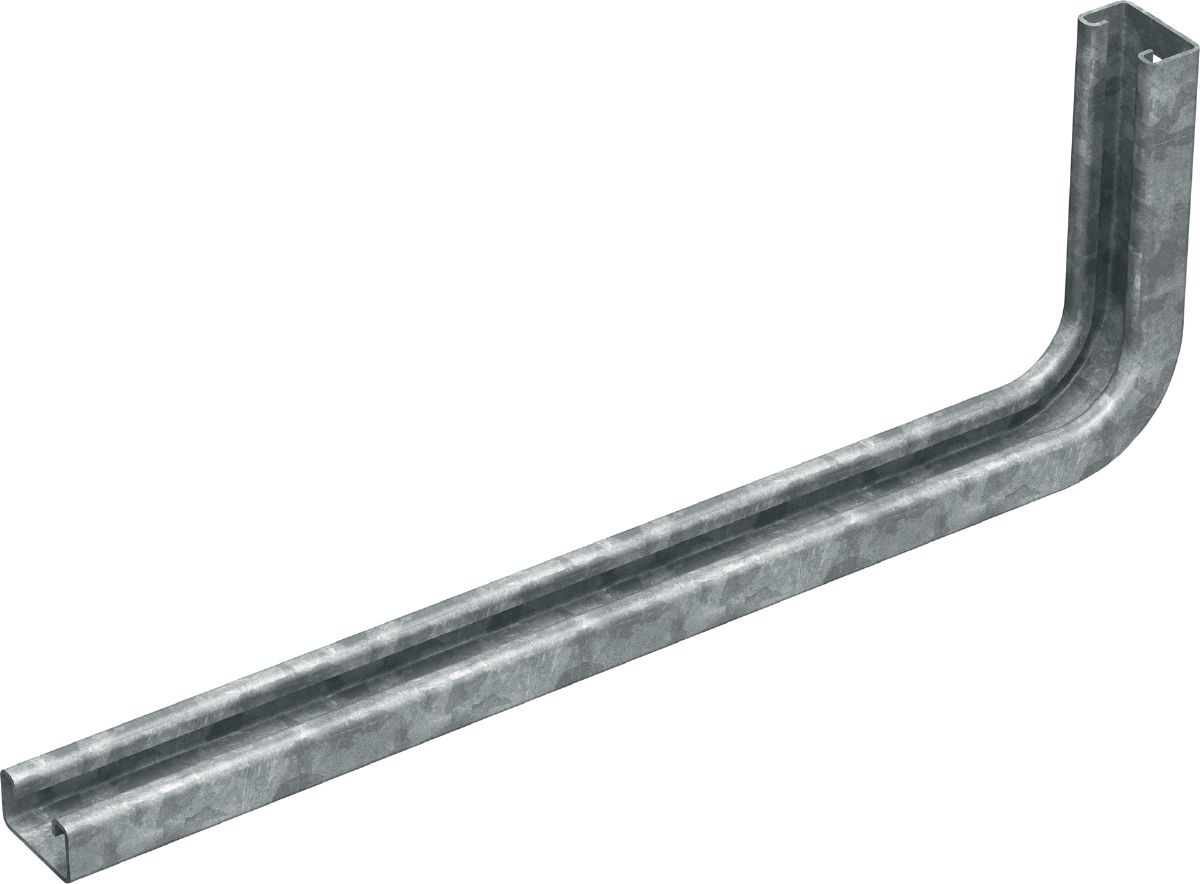

MT-BR-30 OC bracket
Bracket MT-BR-30 450 OC #2271441
medium-duty C-Channel bracket for outdoor applications
- Material composition: Q235 or better steel
- Surface finish: Hot-dip galvanised - for outdoor use
- Weight: 0.88 kg
Choose options
Length - L
- 450 mm
Pack size
- 16 pc
Quantity
Packs
Total Pieces
16
Discounted net
QAR 989.92
QAR 61.87 / 1 each
Technical Data

Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Weight
0.88 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Length - L
450 mm
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
- Easy to instal – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
- Adjustable – two slotted holes simplify leveling and fine adjustment
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
Applications

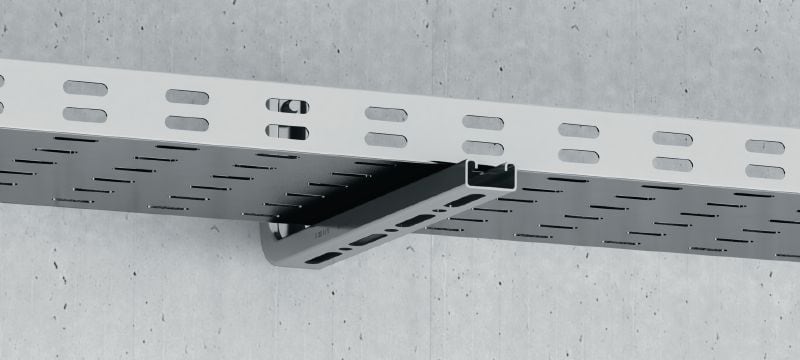

- Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
- Mounting light-duty MEP installations on concrete and steel
- Suitable for use in moderately corrosive environments
