MQK-41-F bracket

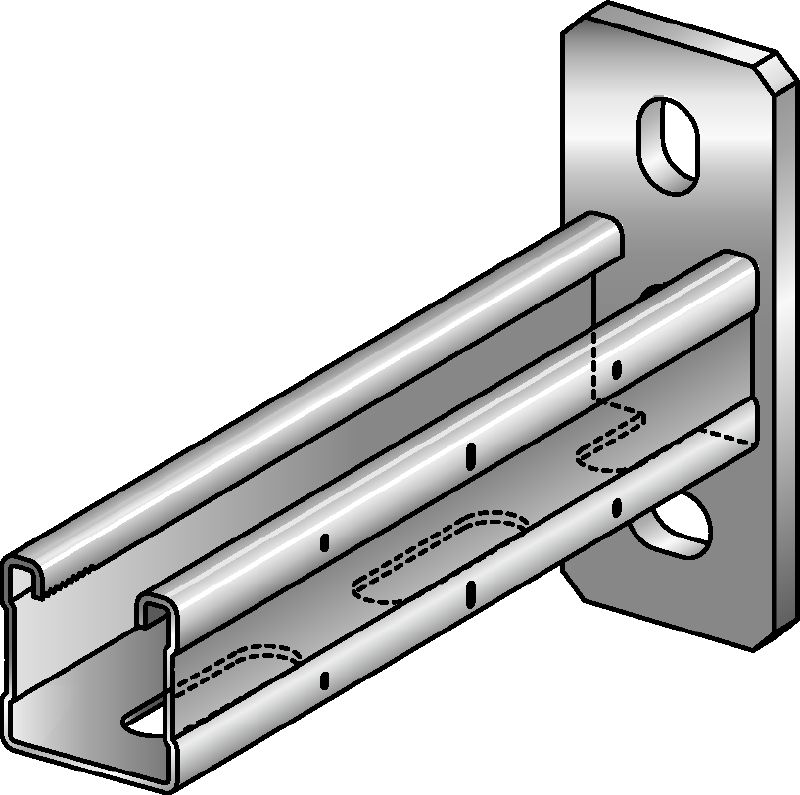

Bracket MQK-41/300-F #304115

hot-dip galvanised (HDG) C-Channel bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG

Customers also searched for bracketsconnecting metal channelsmetal bracketsmetal connectors or installation channel.

Choose options

Profile
  • MQ-41-F
Length - L
  • 300 mm
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material thickness
Channel: 2 mm, Baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Profile
MQ-41-F
Weight
1041 g

Documents

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installations in ventilated façades, damp interiors and outdoor areas with little or no exposure to the weather
  • Installing cable trays, air ducts and pipe supports
  • Recommended for use in moderately corrosive outdoor and indoor environments
