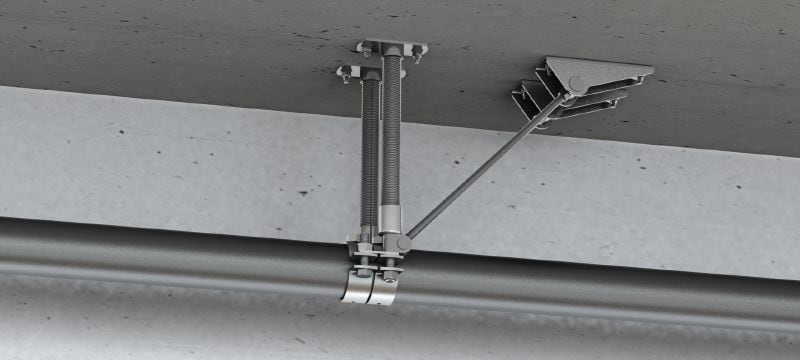

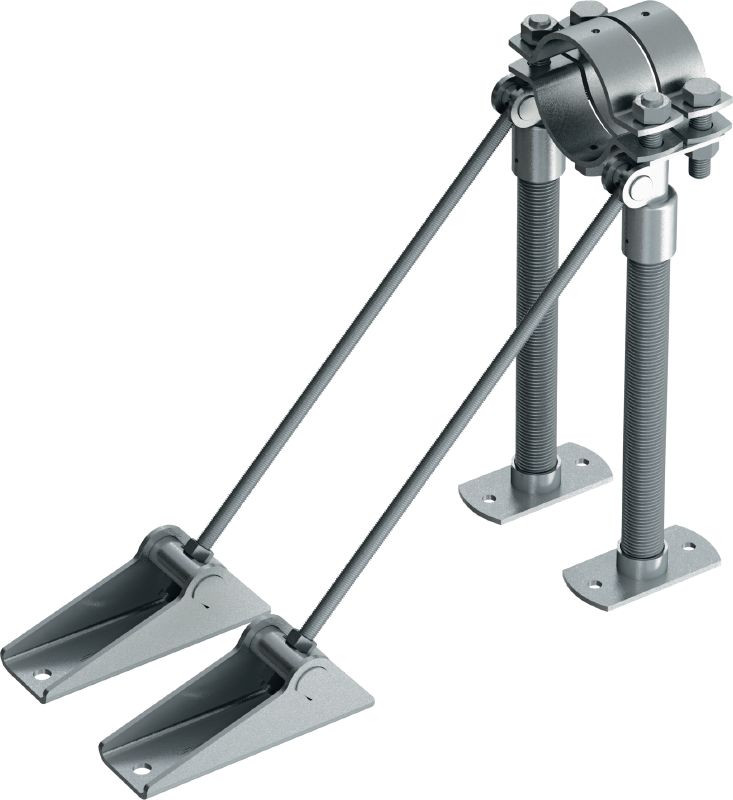

Galvanised double fixed point with one-sided bracing for heavy-duty applications up to 36 kN

Material composition: Steel
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

IS_MFP-UHD_0001 (199462)

Material composition

Steel

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Base material type

Concrete

Documents

Features & Applications

Features

Adjustable bracing angle and rotatable baseplate – helps to avoid hitting rebar
One anchor size needed
Easier to assemble and instal
Designed for easier retrofit installation
Designed for easier retrofit installation

Applications

Can be used in combination with MFP-PC fixed points pipe clamps
Can be used in combination with MFP-KF refrigeration pipe clamps
Given load values apply only when using Hilti HST and HUS anchors
To be used in applications with pipes up to 2000 mm from base material
To be used if force is in one direction only

For approval or certificate information, please see individual items.
