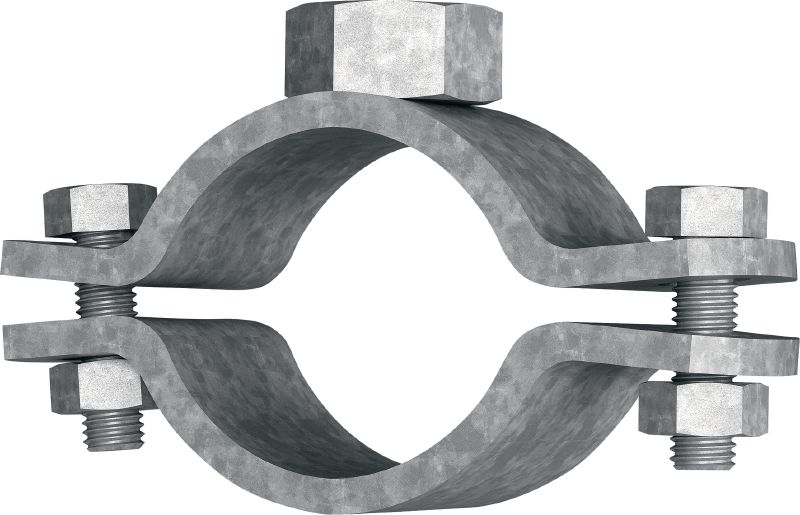

MFP-L-F Light fixed point pipe clamp
Fixed point pipe ring MFP-L NW 25 M20-F #304234
hot-dip galvanised (HDG) fixed point pipe clamp for maximum performance in light-duty applications
- Clamping range - D: 33 - 35 mm
- Nominal pipe size (imperial): 1 in
- Thread connection - M: M20
premium
Choose options
Clamping range - D
- 33 - 35 mm
Thread connection - M
- M20
Nominal pipe size (imperial)
- 1 in
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
QAR 6,999.60
QAR 349.98 / 1 each
Technical Data
Clamping range - D
33 - 35 mm
Nominal pipe size (imperial)
1 in
Thread connection - M
M20
Maximum load - F
8000 N
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Clamping screw
M10 x 35 mm
Tightening torque
20 Nm
Cross section thickness - s
6 mm
Cross section width - b
40 mm
Width - B
96 mm
Distance between holes - A
72 mm
Product class
Premium
Distance centre pipe to top - h
40 mm
Maximum axial load at 150 mm - Fx(150)
1000 N
Documents
Features & Applications
Features
- Quick installation – just 2 screws need to be tightened
- Verified loads and technical data
- Narrow flange for easier insulation
- Close spacing possible between two pipe clamps
- Quick fastening with only 2 screws
Applications

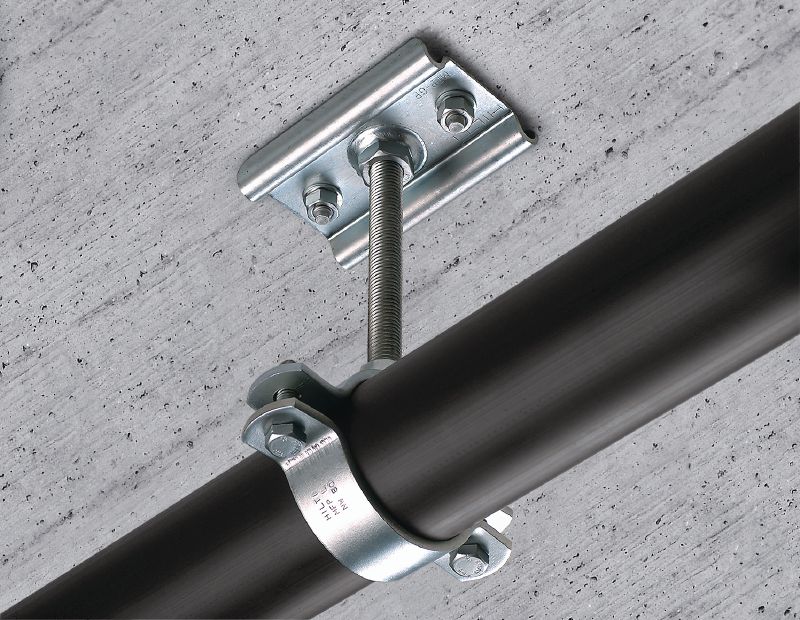

- Installing pipes up to 3" diameter exposed to temperature changes in moderately corrosive environments
- Fastening pipes in combination with MFP-BP 20-F
- Fastening pipes in combination with MFP-GP 20-F
