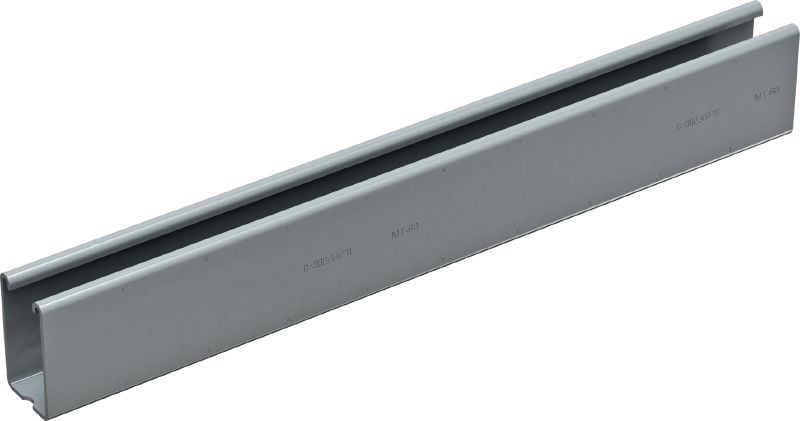

MT-60 OC C-Channel profile

I.-Channel MT-60 OC #2268516

medium-duty C-Channel profile for use with MT-FL/MT-TL components in outdoor environments

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

QAR 1,382.58

QAR 230.43

1 m

Technical Data

Material composition

S280 or better steel

Surface finish

Zinc-Magnesium - for outdoor use

Material thickness

2.75 mm

Weight

23.12 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf ETA-23-0105 Static Fire MT Channels, English [ 3.1 MB ]

Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
