MT-90 OC Box profile

LCG003285_v1 (217077)
LCG003480_v1_cropped (224133)
12_IS_MT-90_0001 (218621)

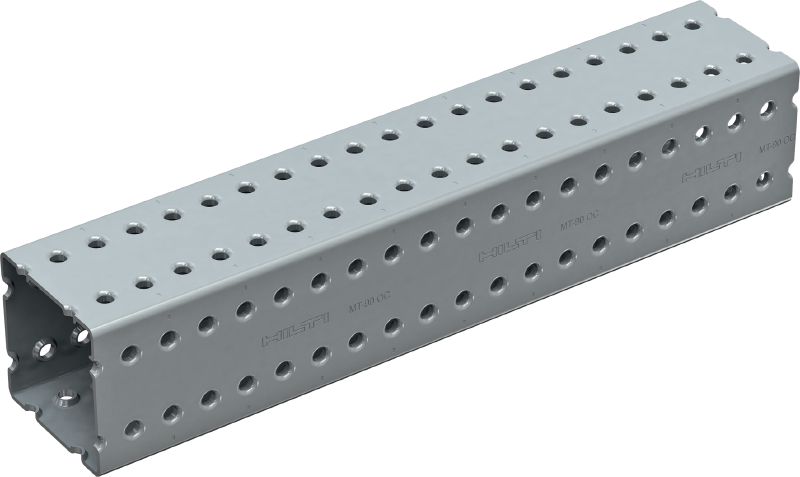

heavy-duty box profile for use with MT-TFB components in outdoor environments

  • Material composition: S350 or better steel
  • Surface finish: Outdoor Coated - ZM
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 4,404.78
QAR 734.13
/
1 m

Technical Data

Material composition
S350 or better steel
Surface finish
Outdoor Coated - ZM
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

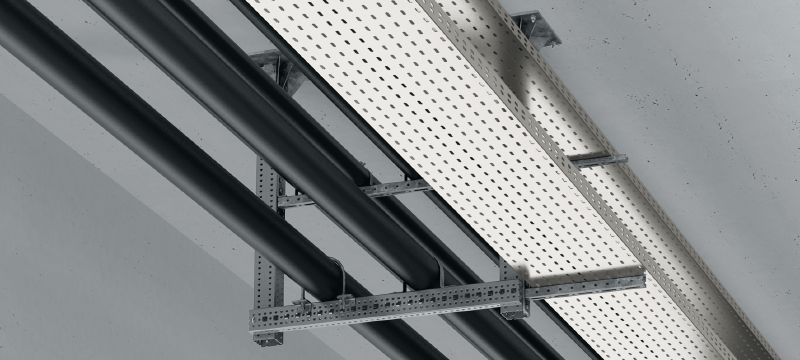

  • Floor-mounted MEP support structures with heavy loads and extra-long spans
  • Ceiling-mounted MEP support structures with heavy loads and extra-long spans
  • Wall-mounted cantilever brackets for heavy-duty, industrial pipes
  • Modular 3D framing to support industrial pipes and other heavy-duty building services
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
