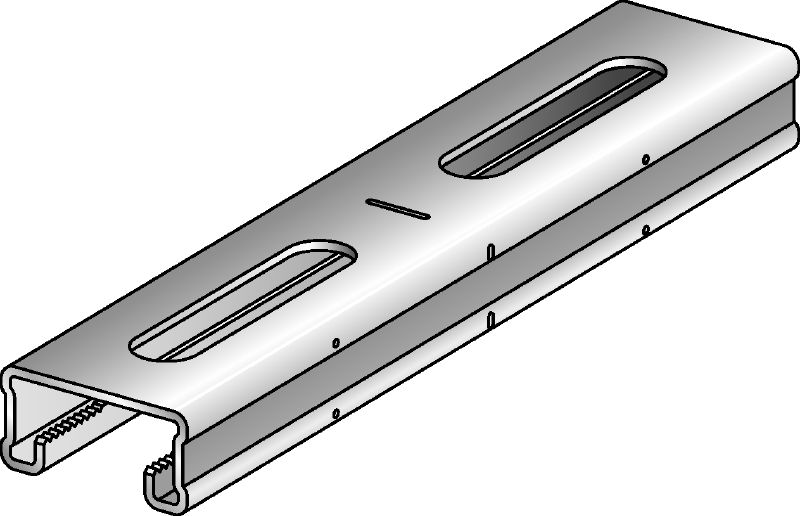

MQ-21-F C-Channel profile

I.-channel MQ-21-F 6m #304097

hot-dip galvanised (HDG) C-Channel profile for light-duty applications

  • Height: 20.6 mm
  • Material thickness: 2 mm
  • Material composition: S235JR - DIN EN 10025

Choose options

Length
  • 6 m
Pack size
  • 6 m
Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

50 Packs (Total pieces 300)

Discounted net

QAR 30,135.00

QAR 100.45 / 1 m

Technical Data

Height
20.6 mm
Material thickness
2 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
8880 g

Documents

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for use in moist interiors, on exteriors exposed to slight or no weathering and on back-ventilated facades
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
