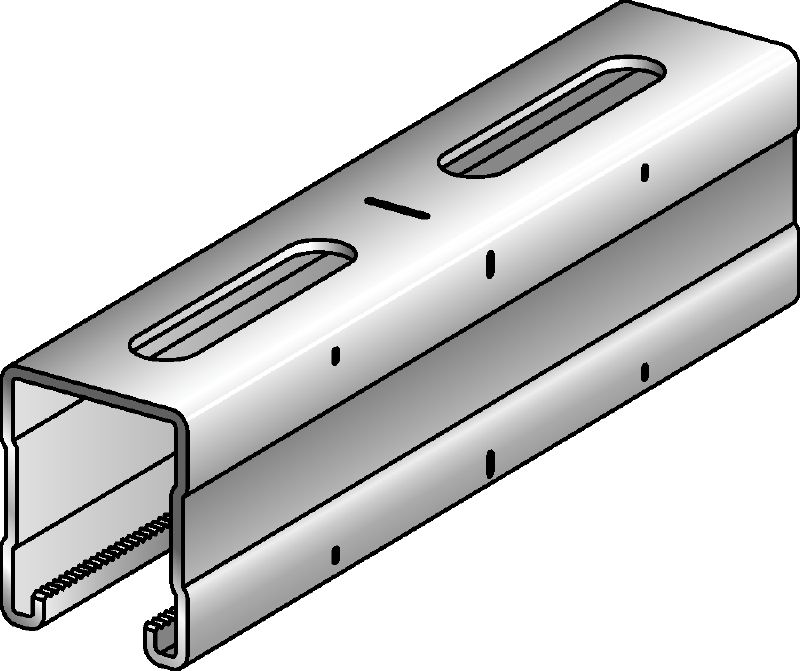

MQ-52 C-Channel profile
Install. channel MQ-52 6M #369598
Galvanised C-Channel profile for medium-duty applications
- Height: 52 mm
- Material thickness: 2.5 mm
- Material composition: S250GD - DIN EN 10346
Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.
Choose options
Length
- 6 m
Pack size
- 6 m
Quantity
Packs
Total m
6
Discounted net
QAR 44,241.00
QAR 147.47 / 1 m
Technical Data
Height
52 mm
Material thickness
2.5 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
17652 g
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Versatile, flexible and secure fastening with lateral and vertical adjustment
Applications
- Recommended for installation in dry interiors
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
