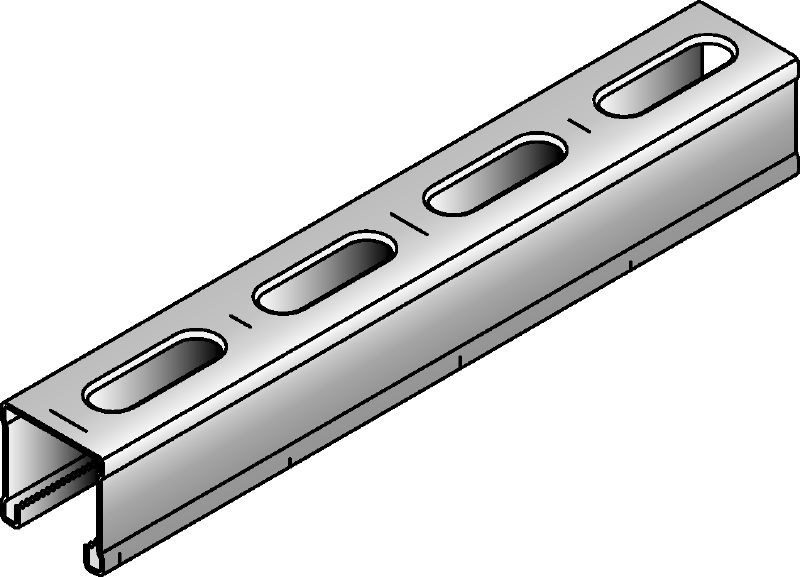

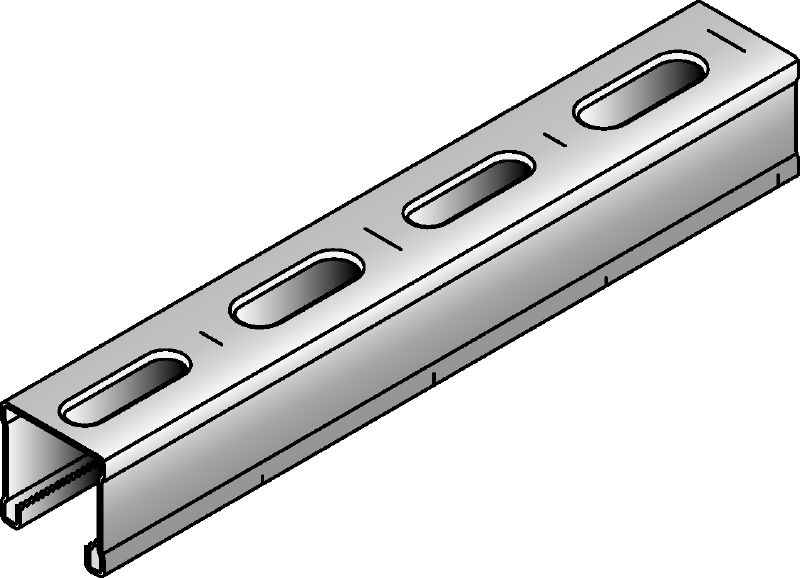

MM-C-30 C-Channel profile
Galvanised C-Channel profile for light-duty applications
- Height: 30 mm
- Material thickness: 1 mm
- Material composition: S250GD - DIN EN 10346
Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.
Choose options
Length
- 2 m
Pack size
- 16 m
Quantity
Packs
Total Pieces
1
Discounted net
From QAR 771.20
Technical Data
Height
30 mm
Material thickness
1 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- C-profile with serrated edges – for optimised pull-out and shear capacity
- Optimised back slots – for quicker, more flexible anchor fastening
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Modular installation channel system – for versatility and flexibility
- The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)
Applications

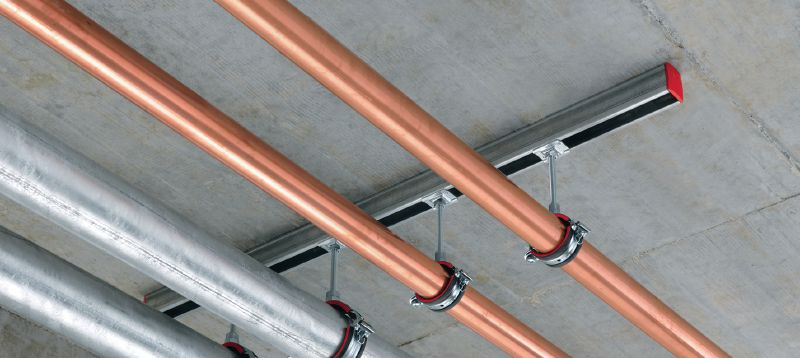

- Light- and medium-duty pipe support system
- Fastening ventilation ducts and cable trays
- Recommended for use in dry interiors
- Recommended for use in dry interiors
For approval or certificate information, please see individual items.
