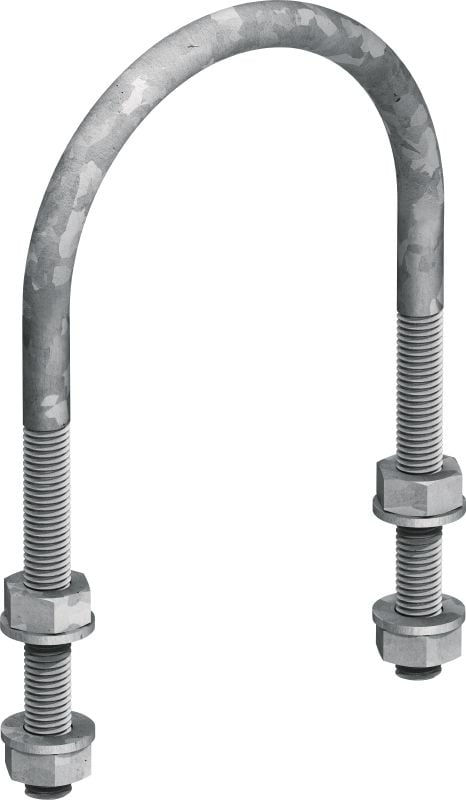

MP-UB u-bolt (metric)
Galvanised u-bolt for universal piping applications
- Material composition: Q235 or better steel
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
standard
Choose options
Diameter - D
- 23.8 mm
- 29.4 mm
- 36.2 mm
- 44.9 mm
- 50.8 mm
- 63.2 mm
- 79 mm
- 91.8 mm
- 104.5 mm
- 110.9 mm
- 117.2 mm
- 136.7 mm
- 143.4 mm
- 162.7 mm
- 172 mm
- 222.8 mm
- 277.5 mm
- 328.4 mm
- 372.5 mm
- 423.5 mm
- 474.5 mm
- 526.3 mm
- 627.3 mm
Thread connection - M
- M8
- M10
- M12
- M20
- M24
Nominal pipe size (imperial)
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 3-1/2 in
- 4 in
- 5 in
- 6 in
- 8 in
- 10 in
- 12 in
- 14 in
- 16 in
- 18 in
- 20 in
- 24 in
Nominal pipe size
- 15 mm
- 20 mm
- 25 mm
- 32 mm
- 40 mm
- 50 mm
- 65 mm
- 80 mm
- 100 mm
- 125 mm
- 150 mm
- 200 mm
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 600 mm
Pack size
- 2 pc
- 10 pc
- 20 pc
- 40 pc
Quantity
Packs
Total Pieces
1
Discounted net
From QAR 78.96
Technical Data
Material composition
Q235 or better steel
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Standard
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Small contact surface between u-bolt and pipe
- Approved for sprinkler applications under VdS
- Approved for sprinkler applications under UL / NFPA

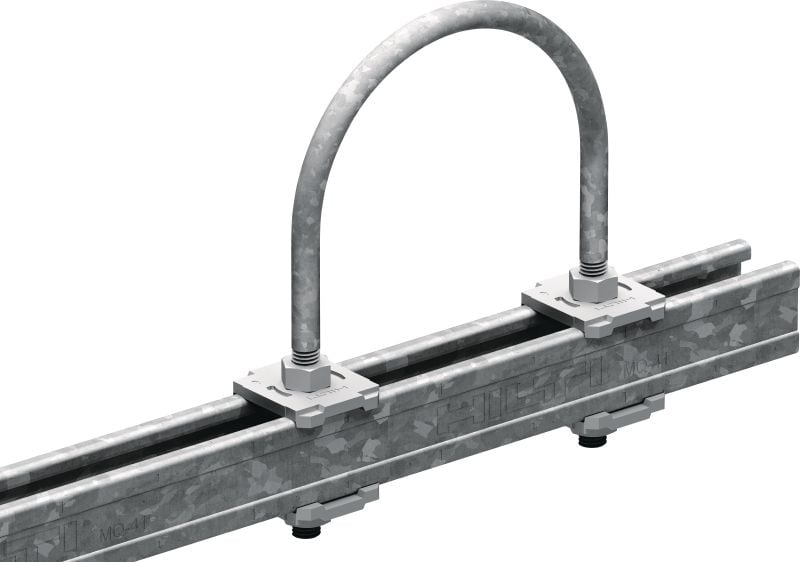

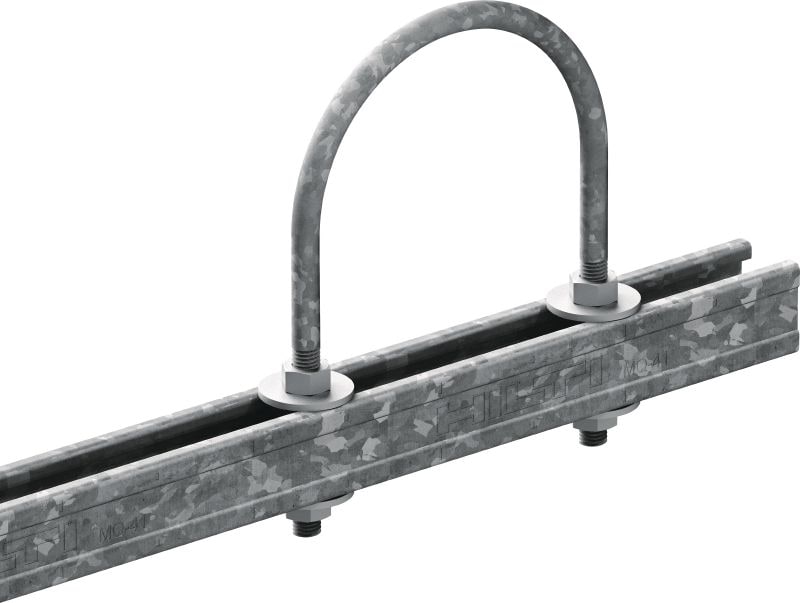

- Channel through bolting up to a diameter of 324mm / 12"
Applications

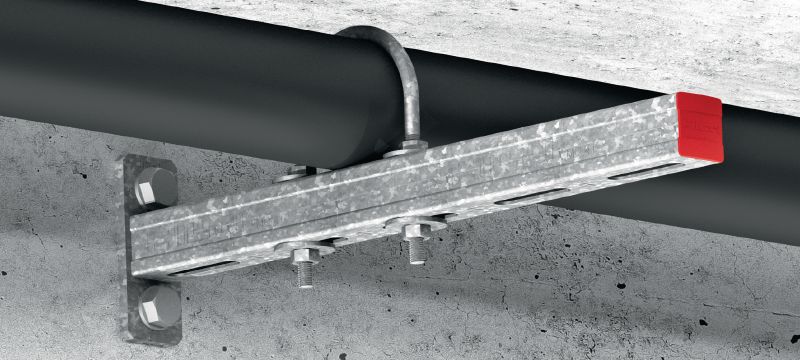

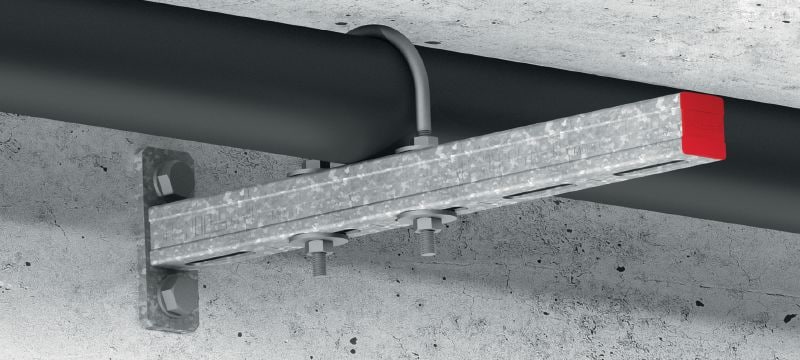

- Universal pipe fixation up to 24"
- single-point fastening for sprinkler applications up to 324mm / 12"
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
