MVA-LC

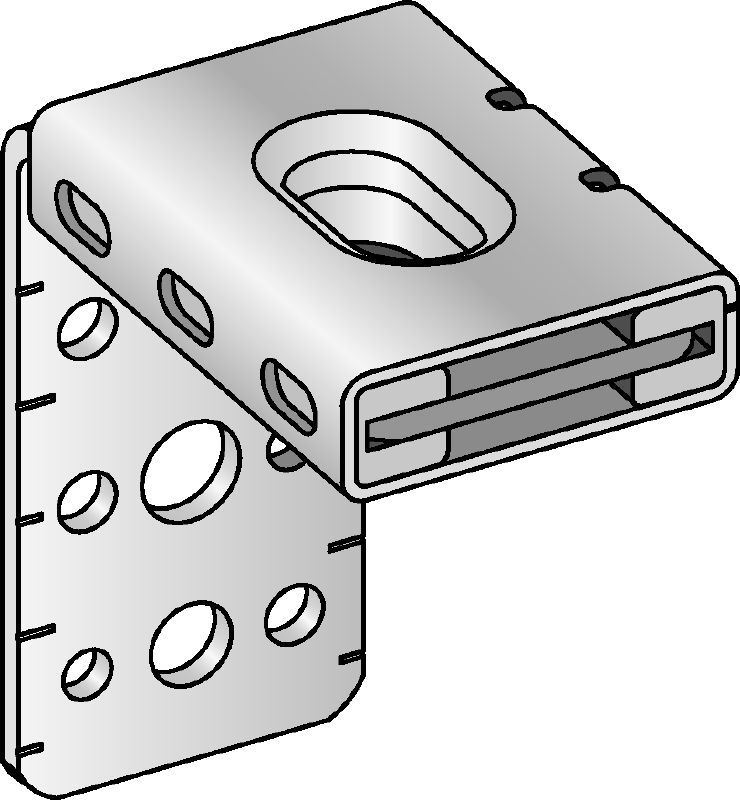

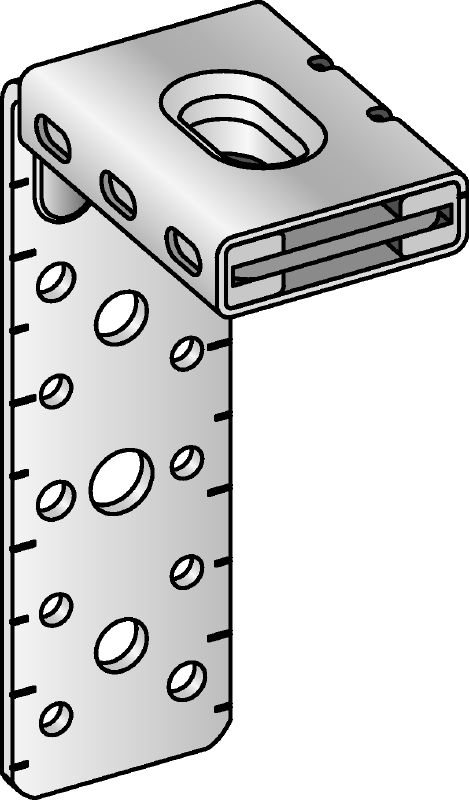

Air duct bracket MVA-LC 60 #386533
Galvanised air duct bracket for fastening or hanging ventilation ducts
- Approvals: Acustic insulaton DIN 4109 inspected
- Thread connection - M: M8, M10
- Noise reduction: 12 dB (A)
Choose options
Thread connection - M
- M8, M10
Maximum load - F
- 600 N
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
QAR 394.00
QAR 15.76 / 1 each
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected
Thread connection - M
M8, M10
Noise reduction
12 dB (A)
Maximum load - F
600 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
pdf Test Report MVA-LC, English [ 1.1 MB ]
Features & Applications
Features
- Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with MQ strut channels for rising ducts
- Scale for precise alignment and stand-off installation
- Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
- 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
- Can be fastened to MQ strut channels or directly to the base material
Applications

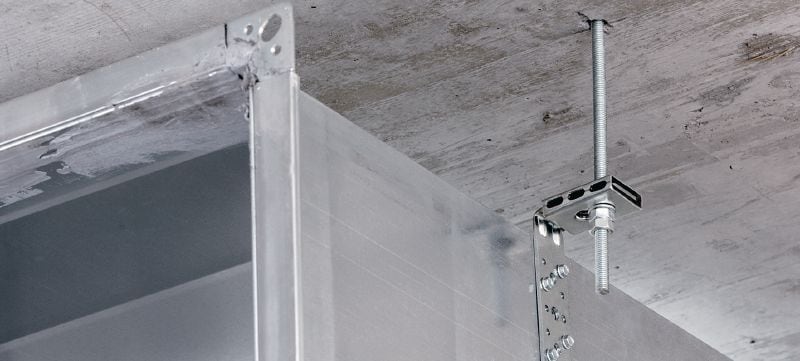

- Fastening rectangular air ducts to ceilings
