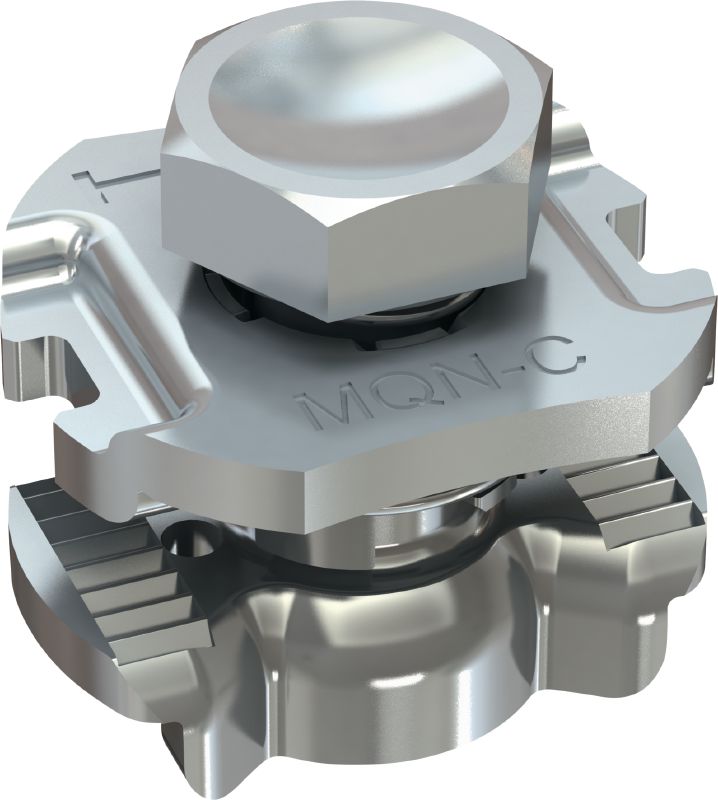

MQN-C
Channel connector MQN-C #2184368
Galvanised channel connector for joining any elements with a butterfly opening
- Product class: Ultimate
- Material composition: Plate: steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
- Surface finish: Indoor Coated - Electro galvanised
ultimate
Choose options
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted net
QAR 607.50
QAR 12.15 / 1 each
Technical Data
Product class
Ultimate
Material composition
Plate: steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
63 g
Documents
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]
Features & Applications
Features
- Extremely fast installation thanks to the push-only function
- Designed to be simple, compact and time-saving
- Holds securely once it has been pressed, turned and tightened correctly
- Universal – one push button for all connectors and MQ channels
- Fewer parts and high flexibility
Applications

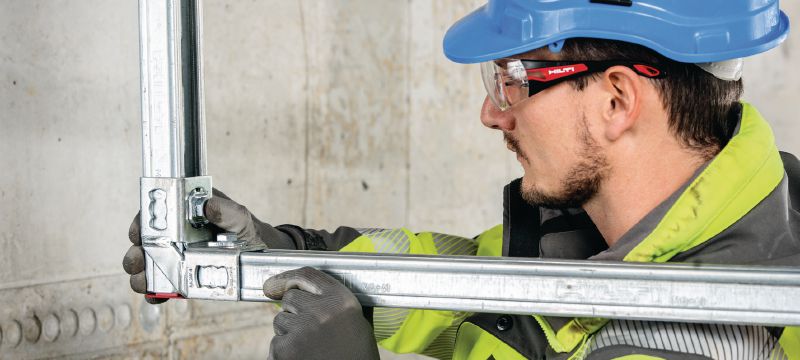

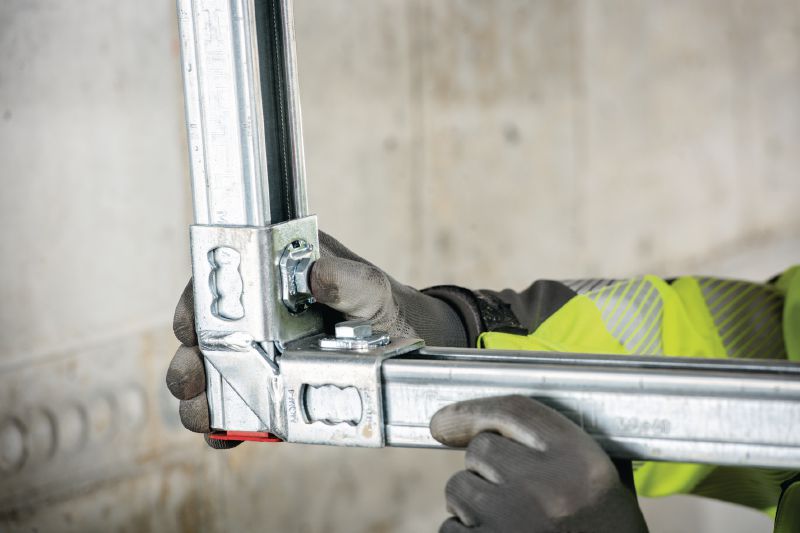

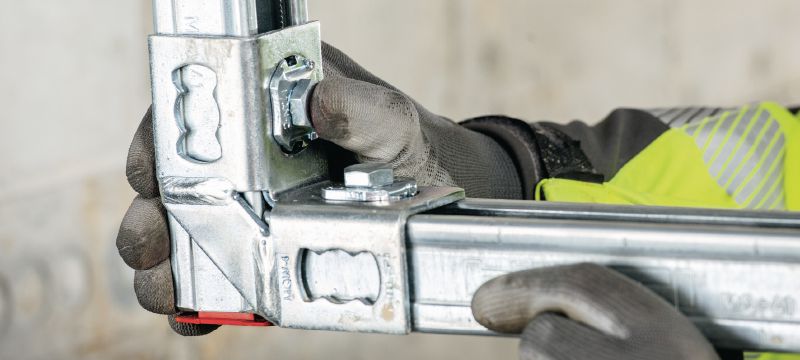

- Connecting angles to strut channels

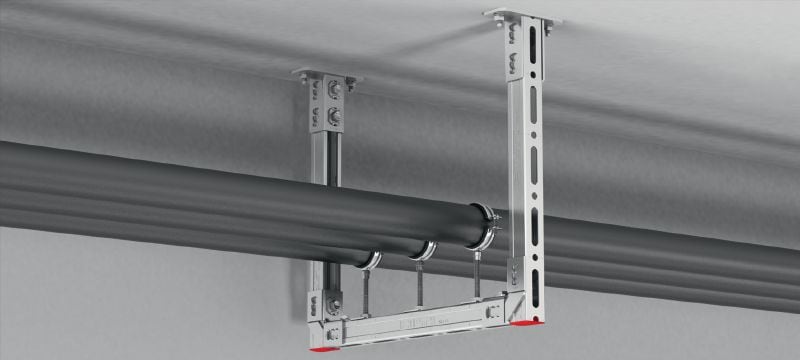

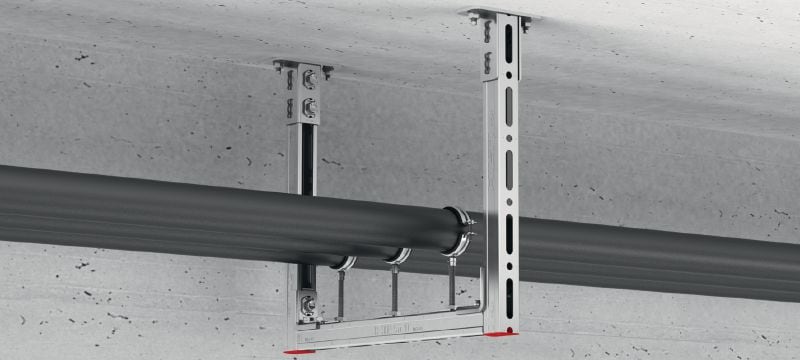

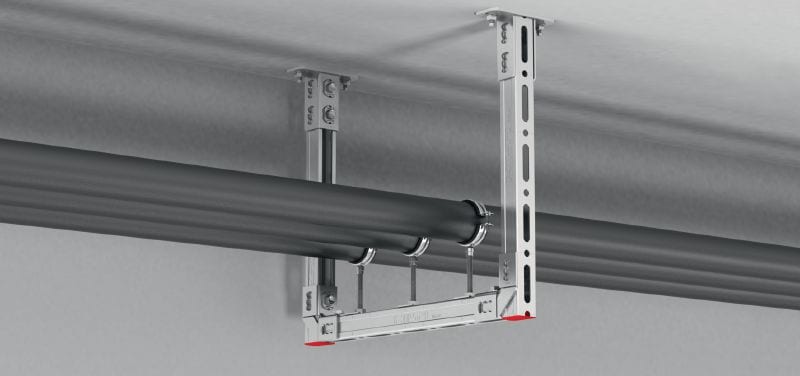

- Connection element for U-frame/crossbeam structures
- Connecting strut channels and structural elements
- Connecting MQ brackets, angles and bases to MQ profiles
- One-part fastener replaces a spring nut, bolt and washer for quick installation
