MW-L Cable lock

Configurator
Technical Data
Documents
Features & Applications
Related Products
L_CG003162_v2 (210420)
Hilti_Still_Rendering_01 (211278)
11_Wire_MW_L (218419)

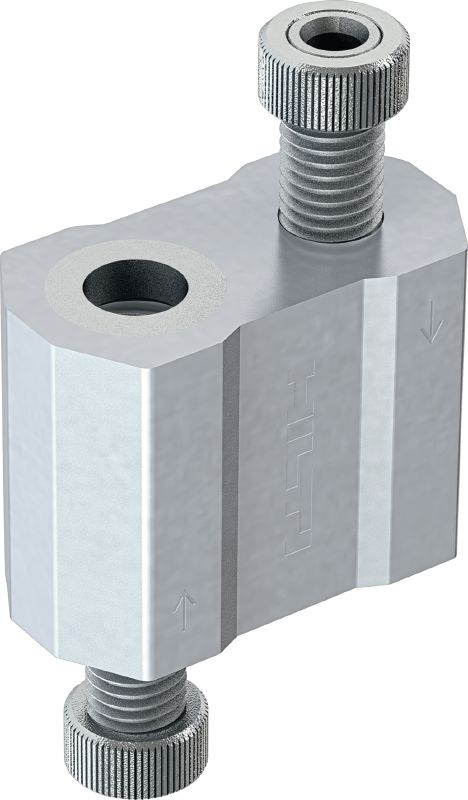

Adjustable wire lock for use with hanging MW wire rope

  • Material composition: Aluminium
  • Surface finish: n/a
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Diameter - D
  • 1.5 mm
  • 2 mm
  • 5 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From QAR 56.00

Technical Data

Details
Technical illustrations
Material composition
Aluminium
Surface finish
n/a
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Brochure_en_W4536Wire_Suspension_System_MW_en_2023 [ 2.5 MB ]

Features & Applications

Features

  • Shorter installation time – wire suspension kits give you a much faster alternative to threaded rod
  • Extra-secure wire locking – pre-mounted nuts can be tightened to help fix the wire rope securely in place
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
  • Aesthetic – wire rope suspension is a discreet installation method for exposed building services and open soffits
  • Compatible with Hilti strut channels and MVA ventilation hardware – you can get solutions for virtually every MEP installation from one supplier

Applications

  • Suspending HVAC fixtures, including spiral and rectangular ductwork (using compatible MVA duct hangers), from beams or eyebolts
  • Lateral bracing
  • Suspending electrical fixtures from beams or eyebolts – including cable trays, cable baskets, busbars or lighting
  • Suspending architectural elements from concrete or steel – including acoustic, heating and cooling panels, as well as overhead grids
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
