Nuron

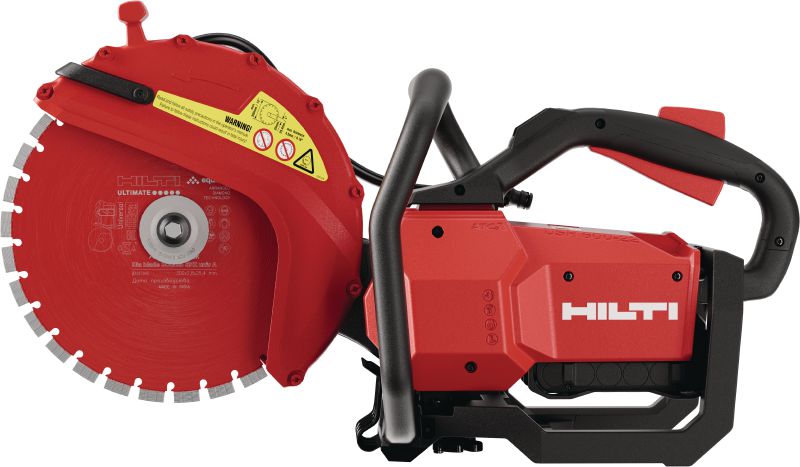

DSH 600-22 ATC Battery-powered cut-off saw (300mm)

Configurator
Technical Data
Features & Applications
Related Products
L152475 (3706909)
L152717_cropped (4074205)
L153148_cropped (4074178)
L152680_cropped (4074199)

Compact top-handle battery cut-off saw, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal (Nuron battery platform)

  • Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
  • Dimensions (LxWxH): 660 x 290 x 350 mm
  • Protection class: IEC Battery operated

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH)
660 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
  1. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Matching power-class – our second generation offers improved power to help match the performance and feel of a 60cc gas cut-off saw, all without the fumes, noise or high vibration rate
  • Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
  • Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-290 Nuron batteries and 300mm SPX univ. A cordless-optimised blades (see technical data below)
  • Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
  • Comfortable handling – weighing 12.2kg (with two B 22-195 batteries and a 300 mm blade), this cut-off saw offers easier and more controlled cuts in any orientation

Applications

  • Laying paving – cutting curbstones and paving slabs to size

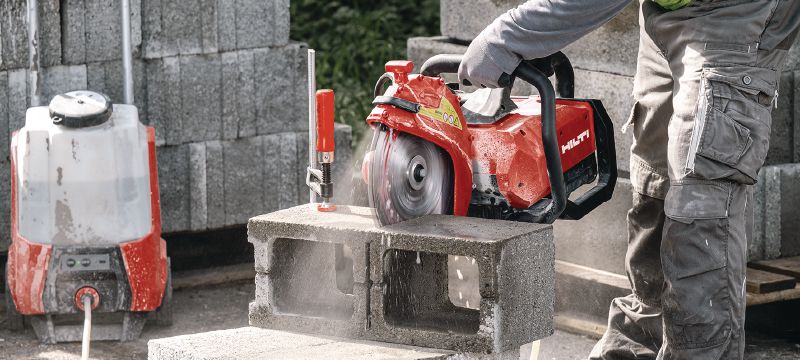

  • Masonry work – cutting bricks and blocks to size

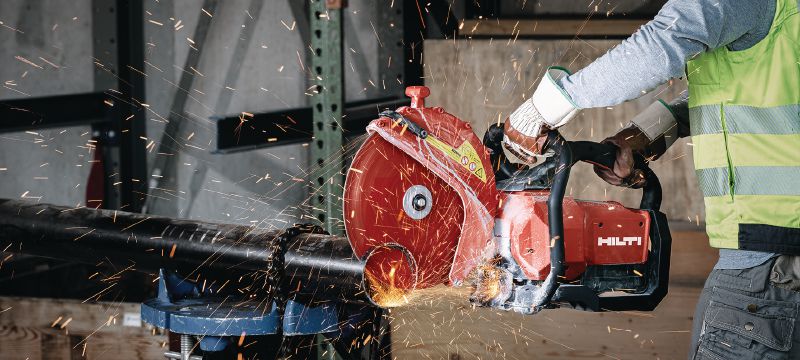

  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Construction work – cutting out openings in brick or concrete walls
  • Sewage work – cutting where working space is limited

For approval or certificate information, please see individual items.
