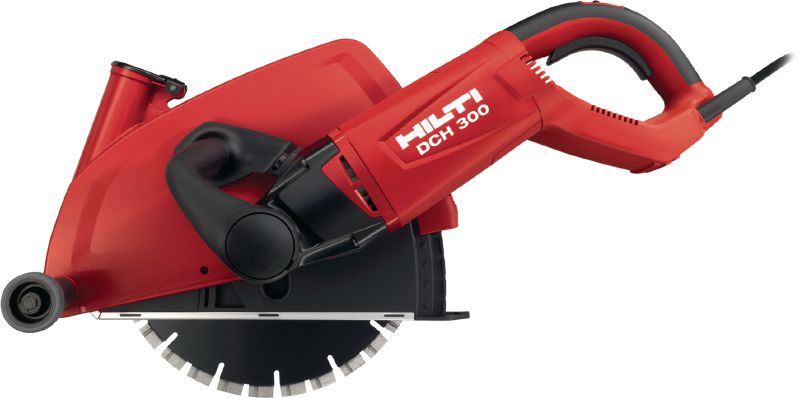

DCH 300 Electric cutter

Hand-held electric cutter designed to saw through concrete, masonry and metal up to 120 mm thick

  • Disc diameter: 305 mm
  • Cutting depth: 120 mm
  • No load RPM: gear 1: 4900 rpm

Customers also searched for diamond cutting angle grindercutting metal beamscutting reinforced concretecutting openings for windows or cutting.

Technical Data

Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
705 x 240 x 235 mm
Wet or dry operation
Dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Delivers far more cutting depth than angle grinders – you can saw through 120 mm thick materials with a 305 mm blade
  • The inverted blade rotation guides the saw away from the operator's body – making cutting easier and safer
  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Achieve even greater productivity gains by using with specifically developed Hilti cutting discs
  • Protection against overheating and overloading – prolongs the cutter's lifetime and increases the operator's safety

Applications

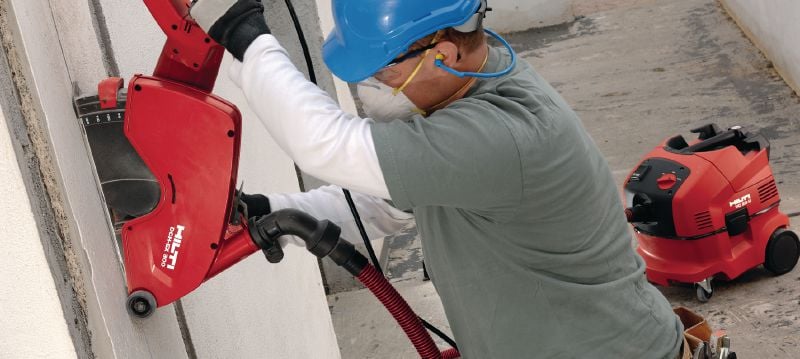

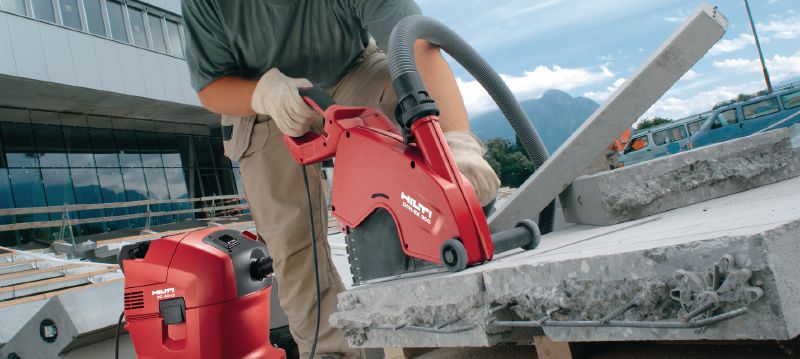

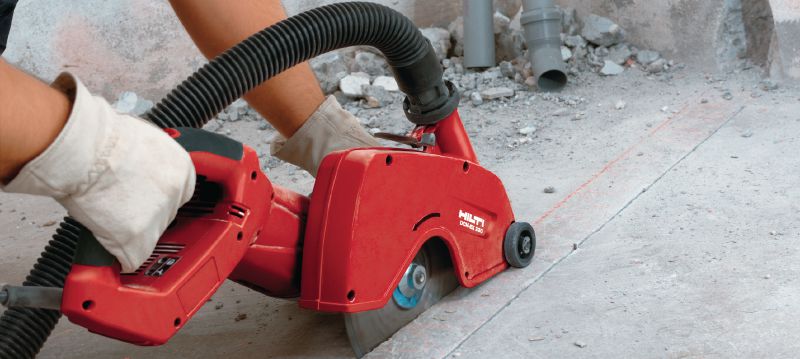

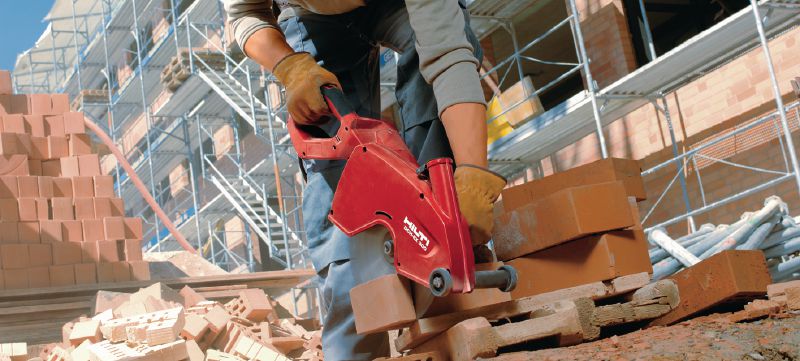

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
  • Cutting metal beams, steel pipes and reinforcing bars
  • Making preliminary cuts for controlled demolition

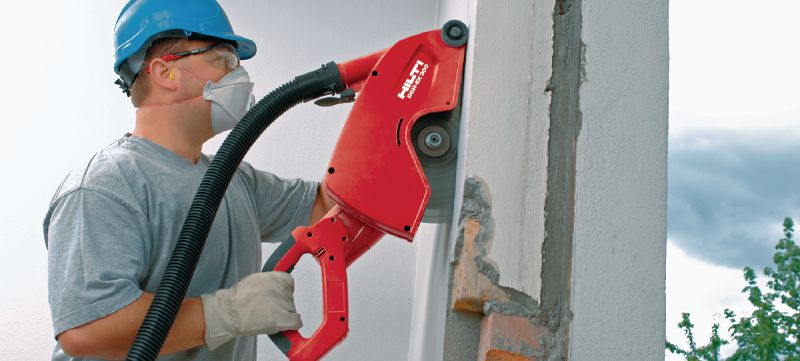

  • Cutting and extending openings for windows, doors and shafts

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
