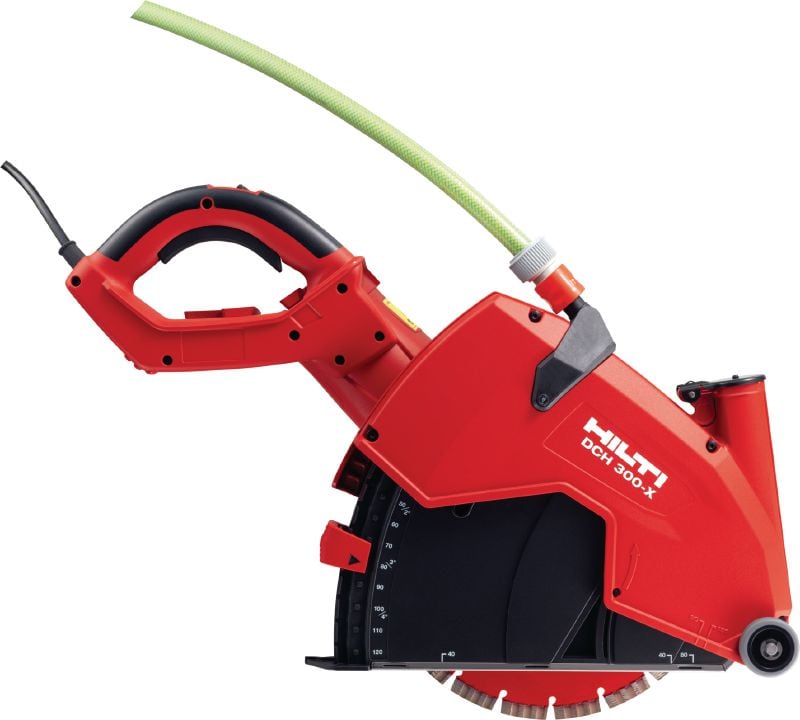

DCH 300-X Electric cutter

Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades

  • Disc diameter: 305 mm
  • Cutting depth: 120 mm
  • No load RPM: gear 1: 4900 rpm

Technical Data

Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
705 x 240 x 235 mm
Wet or dry operation
Wet and dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

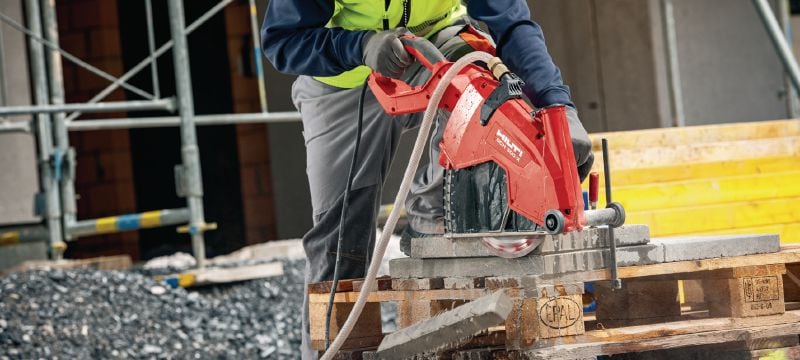

  • Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
  • Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm

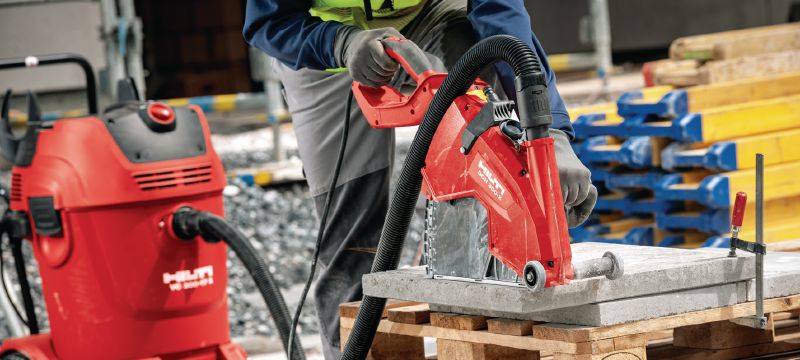

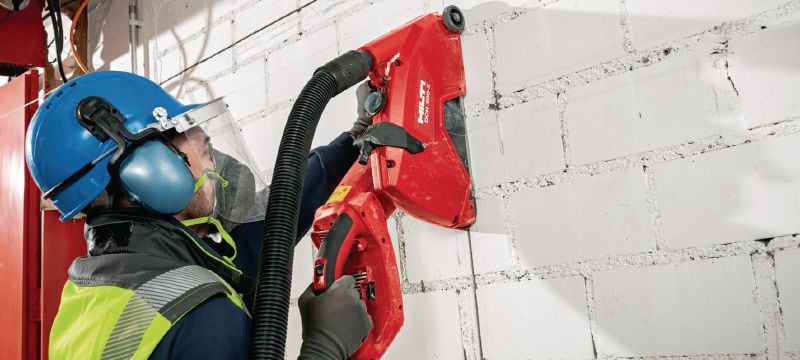

  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting
  • The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

Applications

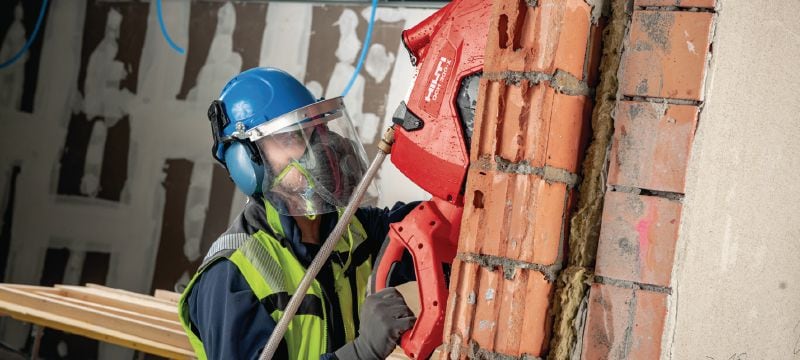

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks

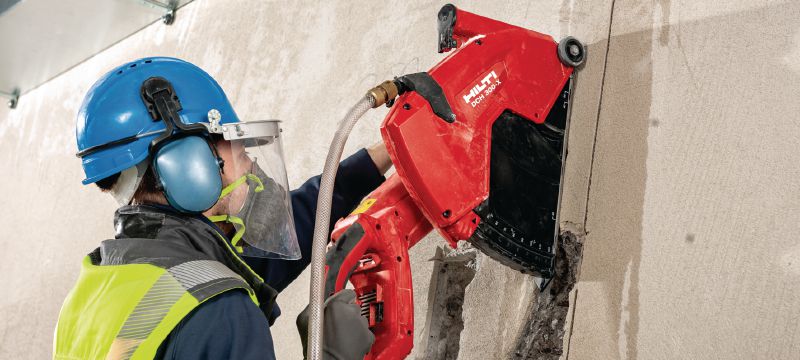

  • Cutting and extending openings for windows, doors and shafts
  • Making preliminary cuts for controlled demolition

For approval or certificate information, please see individual items.
