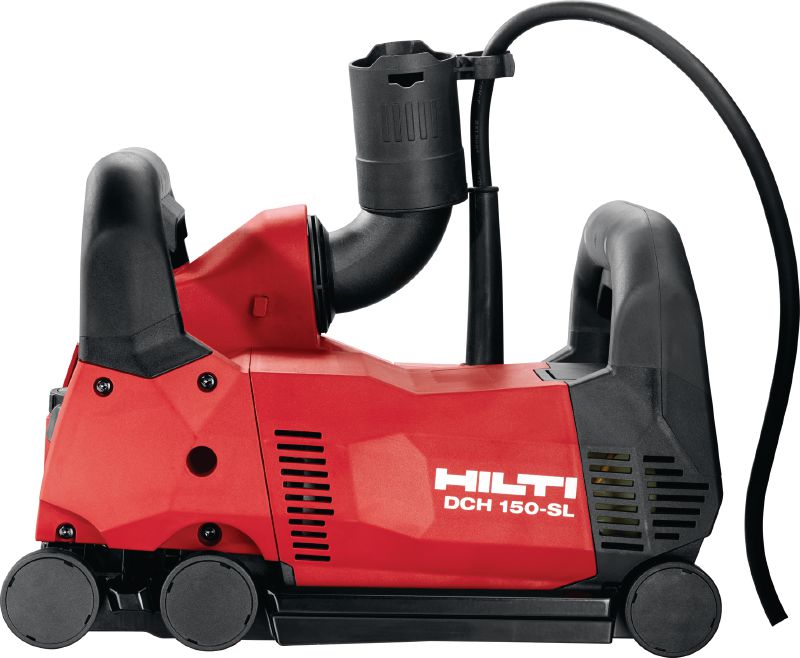

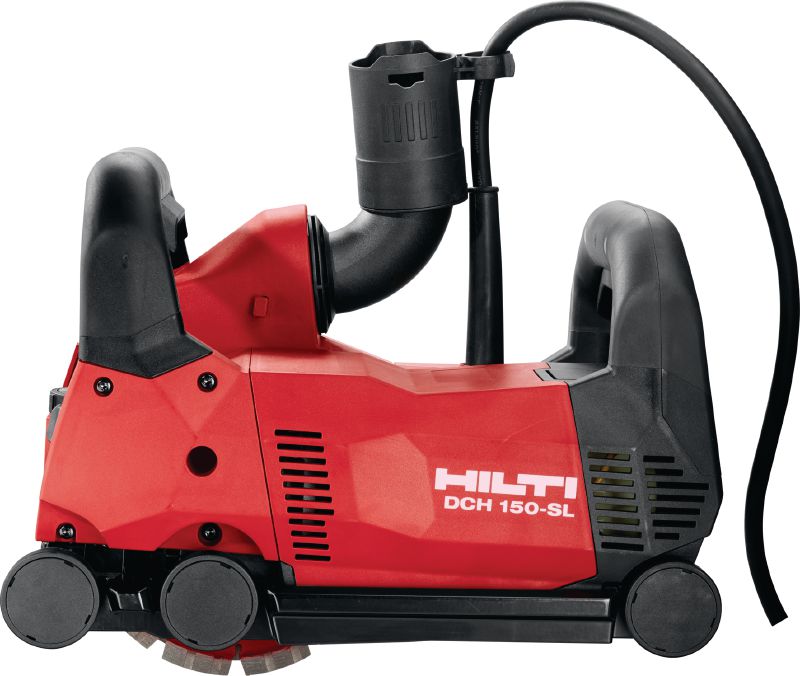

DCH 150-SL Wall chaser

Slitting machine for wall/floor chasing and cable, conduit or pipe installations in a variety of base materials

  • Cutting depth: 50 mm
  • Max. cutting width: 50 mm
  • Disc diameter: 150 mm

Technical Data

Cutting depth
50 mm
Max. cutting width
50 mm
Disc diameter
150 mm
Weight according to EPTA-Procedure 01/2003 without battery
7.6 kg
No load RPM
gear 1: 7000 rpm
Arbor size
22.2 mm

Documents

Features & Applications

Features

  • Purpose-built wall chaser engineered for maximum productivity
  • Capable of slitting channels up to 50x50 mm with 150 mm slitting discs
  • Robust design and durable motor – for longer lifetime
  • Ergonomic handle design – for a more secure, comfortable grip when working in any position

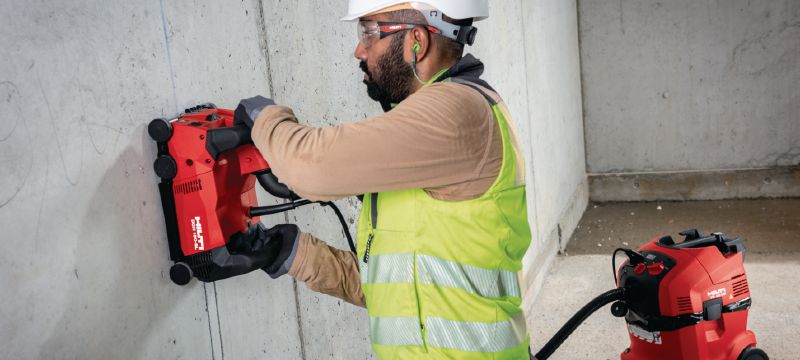

  • Virtually dust-free when used with a compatible Hilti vacuum cleaner

Applications

  • Slitting up to 50 mm deep and 50 mm wide on all widely used materials, such as concrete, flint, lime stone, etc. (when used with 150 mm slitting discs)
  • Installing cables, conduits and pipes

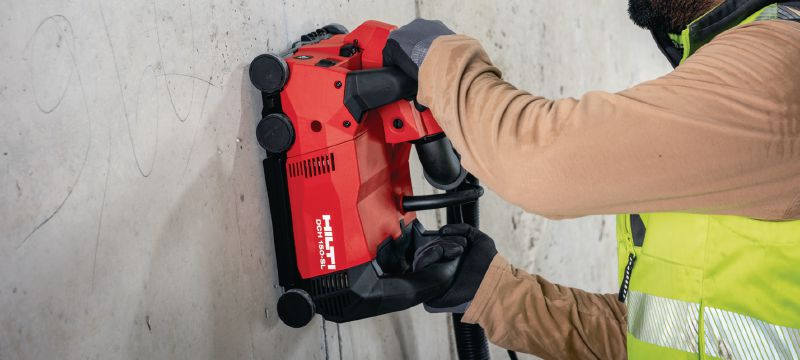

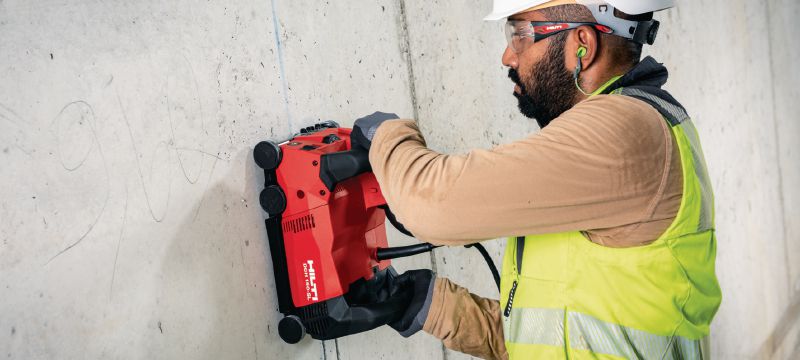

  • Wall chasing

For approval or certificate information, please see individual items.
