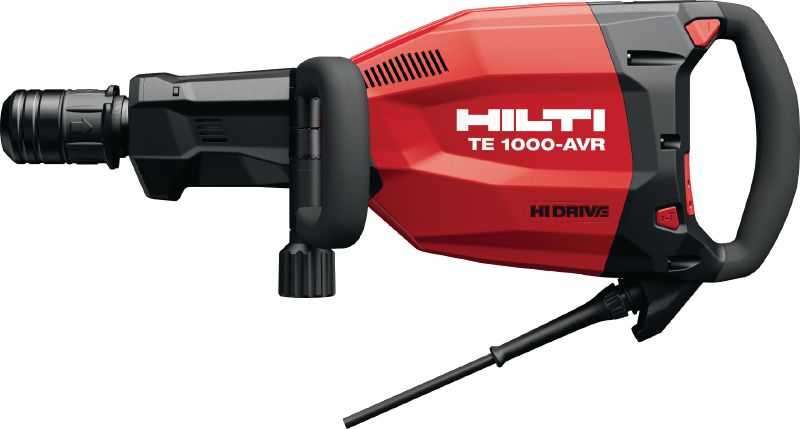

Versatile TE-S breaker for demolishing concrete floors and occasional wall chiselling

  • Working direction: Floor, Wall
  • Tool chuck type: TE-S
  • Weight according to EPTA-Procedure 01/2003 without battery: 12.5 kg

Customers also searched for wall breakingfloor breakingdemolitionchiseling or breaker tools.

Technical Data

Working direction
Floor, Wall
Tool chuck type
TE-S
Weight according to EPTA-Procedure 01/2003 without battery
12.5 kg
Single impact energy
26 J
Full hammering frequency
1950 impacts/minute
Max. chiselling performance
7800 cm³/min
Dimensions (LxWxH)
710 x 141 x 305 mm
Triaxial vibration for chiselling in concrete
5.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
85 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • High versatility – in-line design for floor breaking and ergonomic side handle for occasional wall breaking
  • Maintenance-free brushless SR motor and triple-chamber lubrication system for longer service intervals and tool lifetime
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
  • Optional TE DRS-B dust removal system, which collects up to 95% of dust

Applications

  • Demolishing concrete and masonry at floor level or below waist level
  • Renovating floors of all kinds
  • Removing tiles, bushing and compacting
  • Corrective chiselling such as adjustments to door and window openings

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
