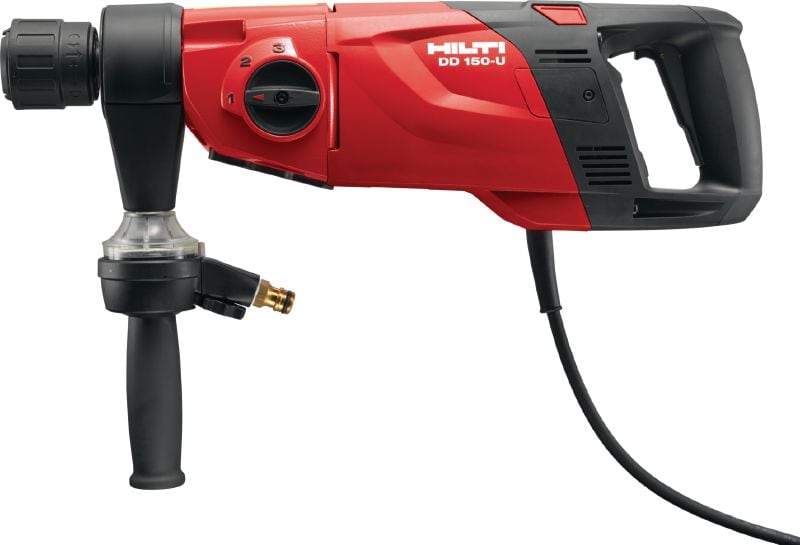

Versatile diamond coring machine for handheld or rig-based coring from 8-162 mm (5/16 - 6-3/8") in diameter

  • Diameter range: 8 - 162 mm
  • Base material: Concrete, Reinforced concrete, Asphalt, Masonry

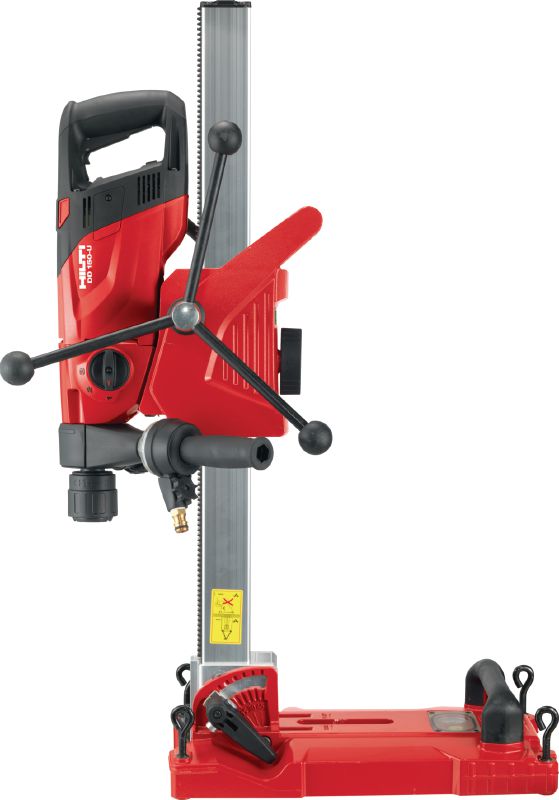

  • Operation mode: Hand-held and rig-mounted drilling system

Technical Data

Diameter range
8 - 162 mm
Base material
Concrete, Reinforced concrete, Asphalt, Masonry
Operation mode
Hand-held and rig-mounted drilling system
Number of gears
3
No load RPM
gear 1: 840 rpm; gear 2: 1640 rpm; gear 3: 3070 rpm
Weight according to EPTA-Procedure 01/2003 without battery
8.35 kg
Weight of complete system
22 kg
Dimensions (LxWxH)
516 x 129 x 159 mm
A-weighted emission sound pressure level
101 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
3.9 m/s²
Corner accessibility
53 mm
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • High motor performance and sturdy three-speed gearing for optimum drilling speed
  • 360-degree adjustable side handle with integrated dust and water management functions
  • Real-time feedback display with digital spirit level, gear selector, power control function, advanced usage statistics and easy-to-understand service messages

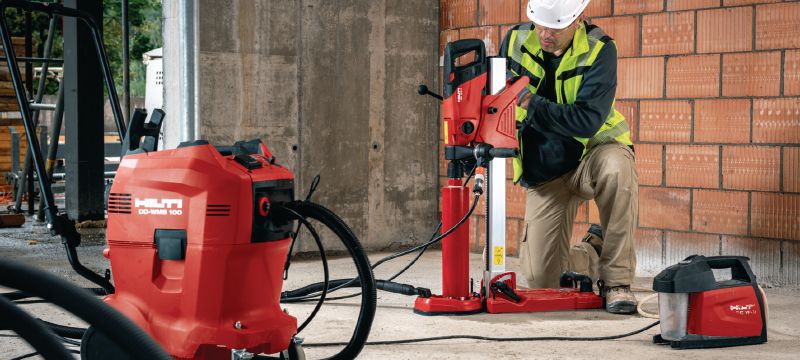

  • Bluetooth® connectivity to WMS 100 water management system
  • Real-time usage statistics analysis via the Hilti Connect app

Applications

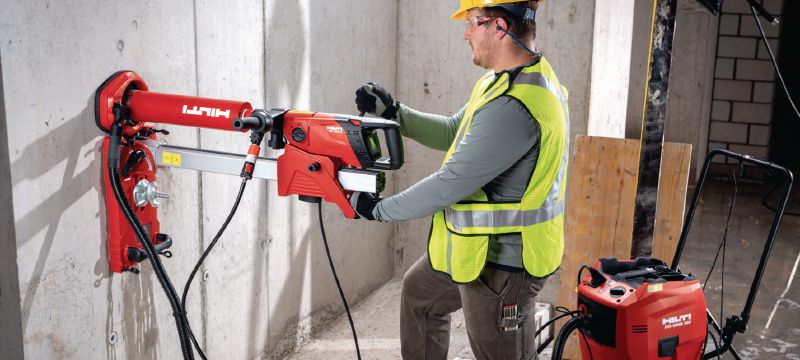

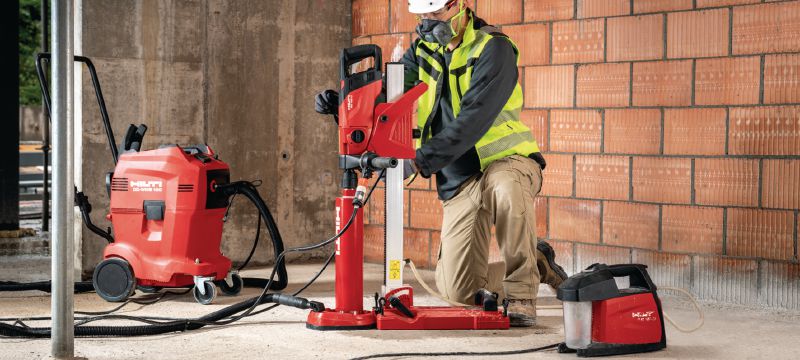

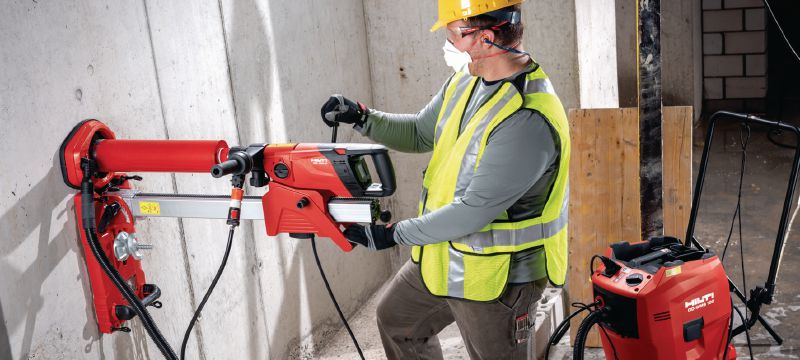

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers

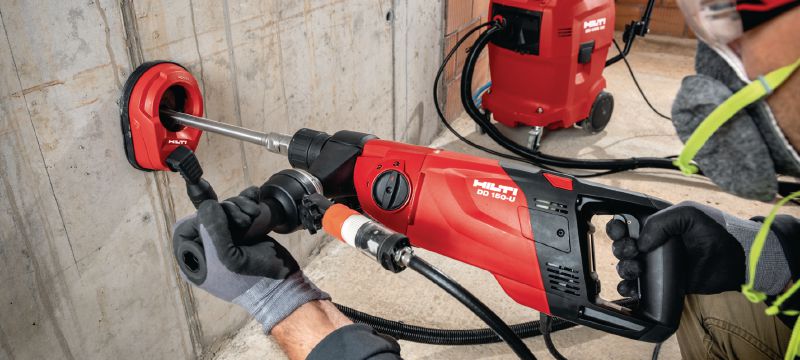

  • Hand-guided wet drilling for setting large-diameter anchors and reinforcing bars

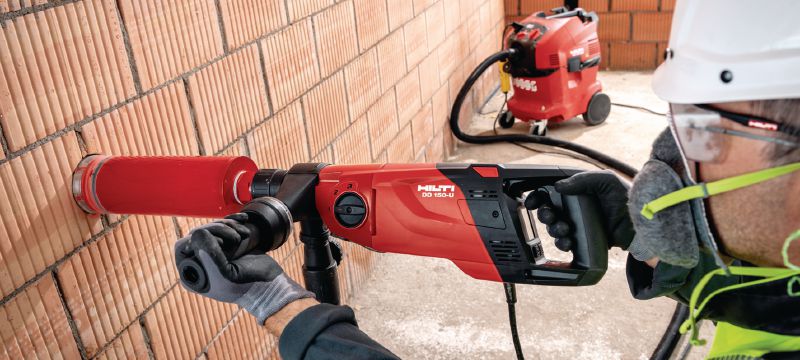

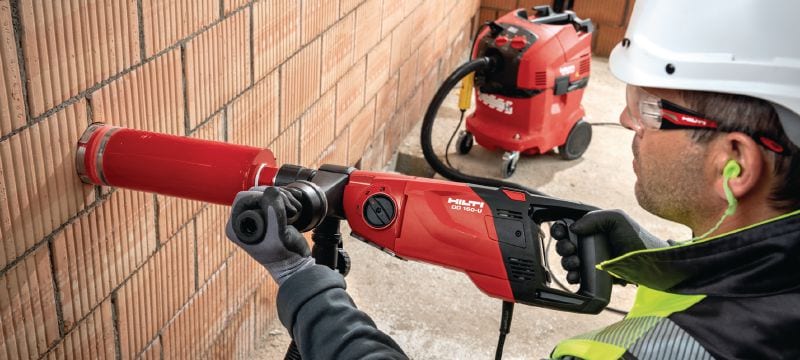

  • Hand-guided dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations and for chimney and stove installation

For approval or certificate information, please see individual items.
