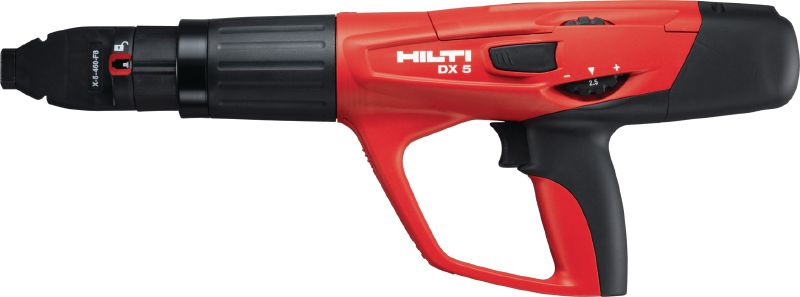

DX 5-F8 Powder-actuated tool

Digitally enabled, fully automatic, high-productivity and versatile powder actuated tool for fastening single nails

  • Dimensions (LxWxH): 478 x 72 x 180 mm
  • Weight: 3.37 kg
  • Fastener intake: Single

Customers also searched for Powder-actuated fastening tool or nails.

Technical Data

Dimensions (LxWxH)
478 x 72 x 180 mm
Weight
3.37 kg
Fastener intake
Single
Fastener length range
12 - 72 mm
Cartridge type
.27 calibre short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-6-5-P8

Documents

Features & Applications

Features

  • Smart tool that tells you when it requires cleaning or maintenance
  • Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
  • High productivity – fully automatic piston return and cartridge transport
  • Superb ergonomics and design with reduced recoil
  • Excellent power-to-weight ratio for fastening a wide variety of materials to concrete and steel

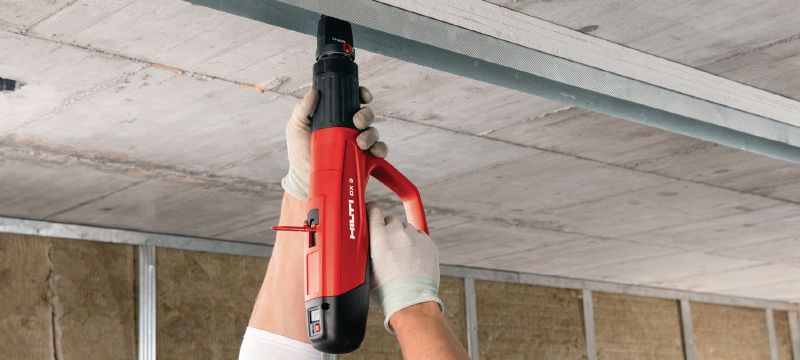

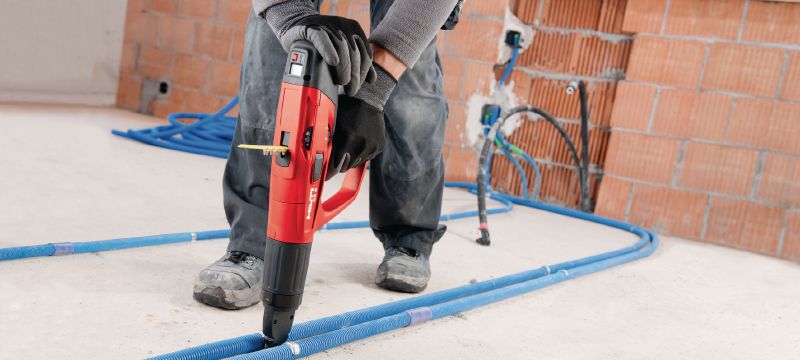

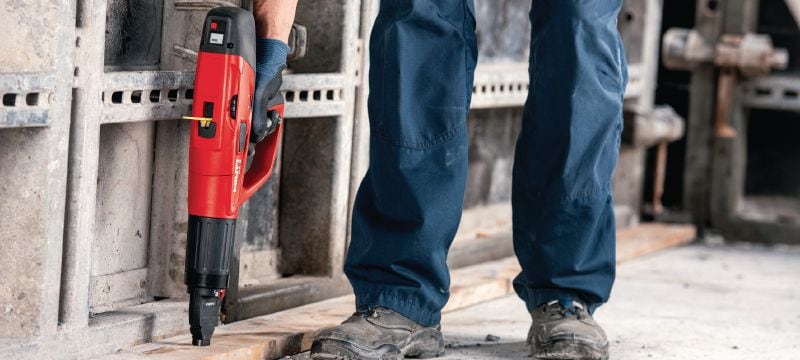

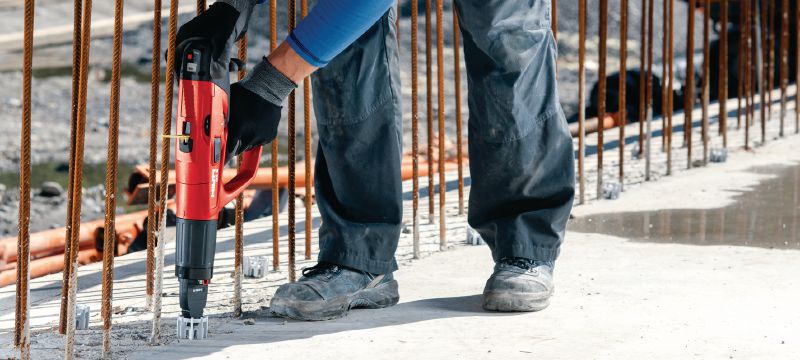

Applications

  • Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
  • Fastening 2x4s to concrete

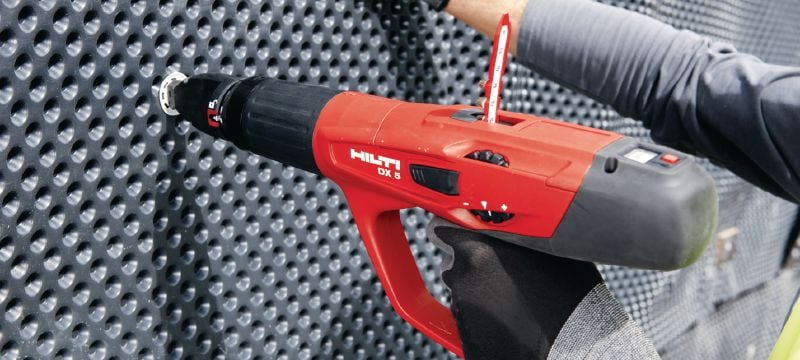

  • Attaching drainage foils and membranes to concrete or CMU block
  • Fastening perimeter wall, deflection or slip clips to concrete and steel
  • Installing Hilti formstop elements on concrete

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
