Nuron

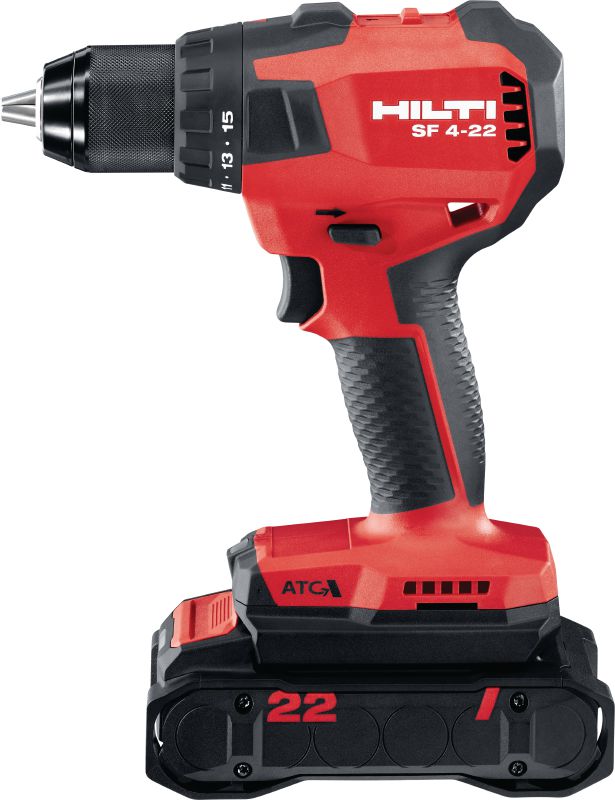

SF 4-22 Cordless drill driver

Compact-class cordless drill driver with Active Torque Control for everyday drilling and driving, especially in hard-to-reach places (Nuron battery platform)

  • Maximum torque (soft/hard joint): 36 Nm (soft joint), 62 Nm (hard joint)
  • No load RPM: gear 1: 610 rpm; gear 2: 2100 rpm
  • Chuck clamping range: 2 - 13 mm

Technical Data

Maximum torque (soft/hard joint)
36 Nm (soft joint), 62 Nm (hard joint)
No load RPM
gear 1: 610 rpm; gear 2: 2100 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
178 x 68 x 215 mm
Tool body weight
1.3 kg
A-weighted emission sound pressure level
78 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.8 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • More productive work – compact and capable cordless drill driver for working in tight spaces or overhead without compromising on efficiency
  • Faster drilling and driving – delivers the highest-ever RPM and torque from a Hilti cordless compact drill driver thanks to high-output Nuron batteries
  • Built to last – full metal chuck, brushless motor and optimised cooling to better withstand intense use under tough jobsite conditions
  • Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

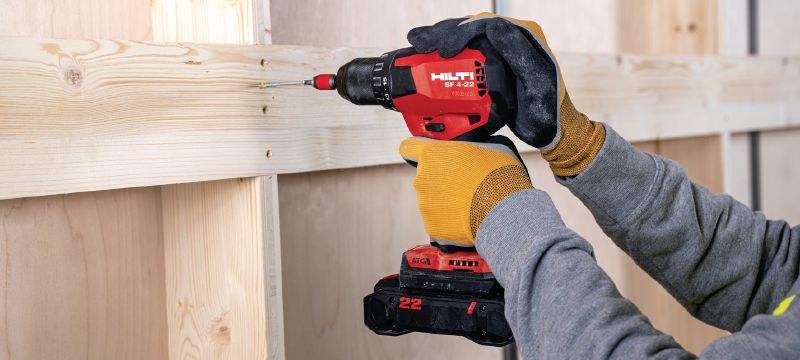

  • Drilling in wood (max. diameter 25 mm)

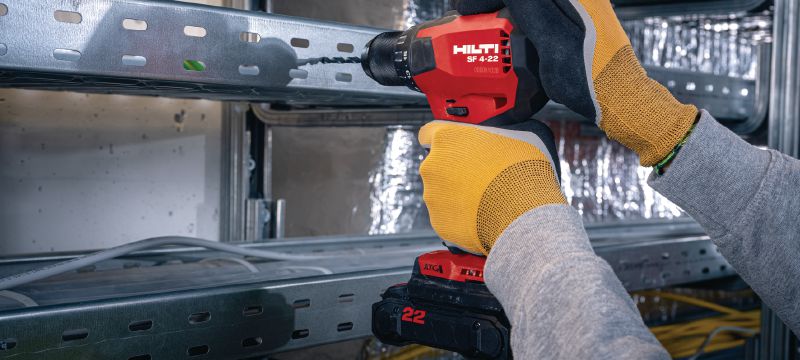

  • Drilling in steel (max. diameter 8 mm)

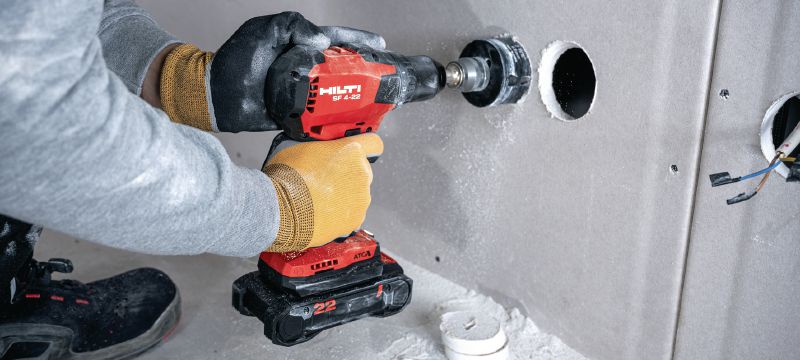

  • Drilling with hole saws in wood (max. diameter 82 mm)
  • Driving screws in steel (max. diameter 4.8 mm)
  • Drilling with auger and spade bits in wood (max. diameter 25 mm)

For approval or certificate information, please see individual items.
