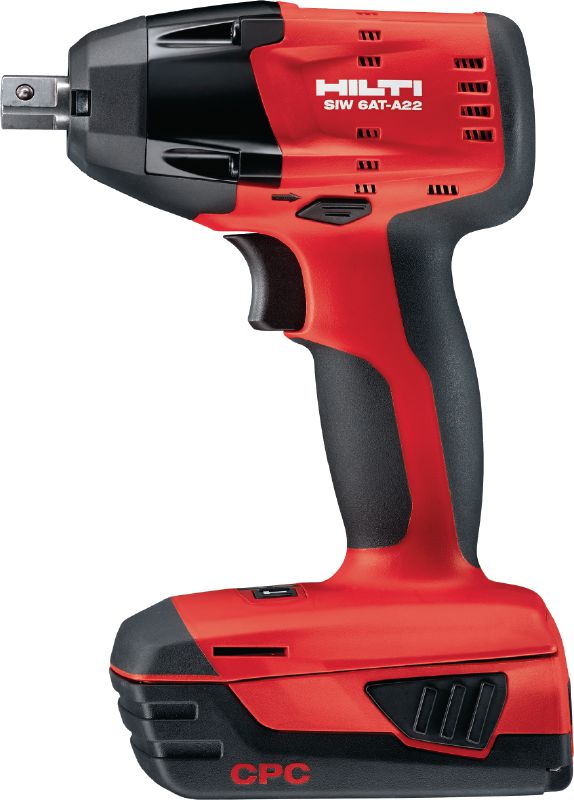

SIW 6AT-A22 Cordless impact wrench

Configurator
Technical Data
Features & Applications
Related Products
Services
SIW 6AT-A22, B22 (81464)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, Kwik-HUS, HUS3 (83483)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, MQN, HST3 (83489)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, KB-TZ, HST3 (83485)
SIW 6AT-A22, SI-AT-A22, B22, SI-S, MQN (83486)

Power-class 22V light-torque impact wrench with 1/2" detent anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
  • Nut-busting torque: 338 Nm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From QAR 2,120.40

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Nut-busting torque
338 Nm
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
154 x 94 x 228 mm
Tool body weight
1.04 kg
A-weighted emission sound pressure level
94 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
  • Compact design for use wherever space is limited
  • Three gears and electronic speed control for easy switching between different driving speeds and torque
  • Four bright LEDs around the chuck provide direct illumination of the work surface
  • Compatible with the Hilti SI-AT-A22 Adaptive Torque module for controlled fastenings

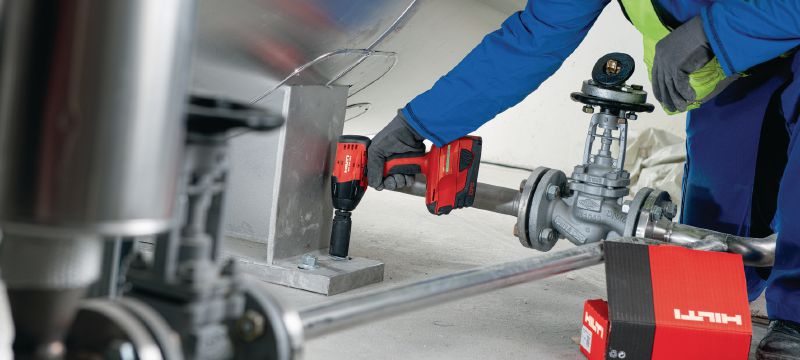

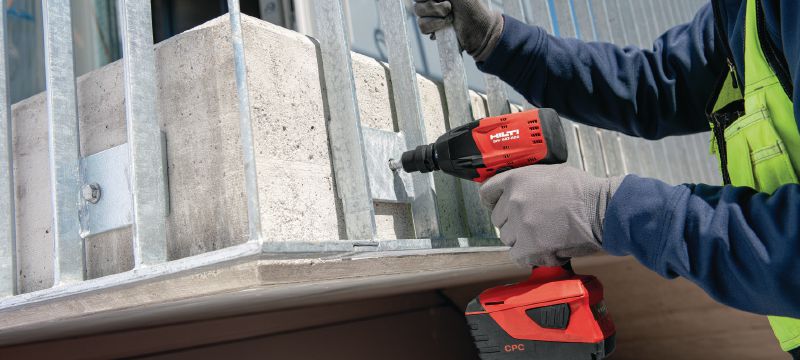

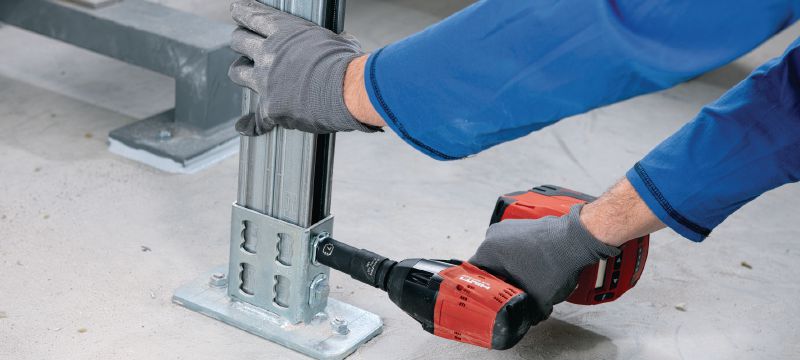

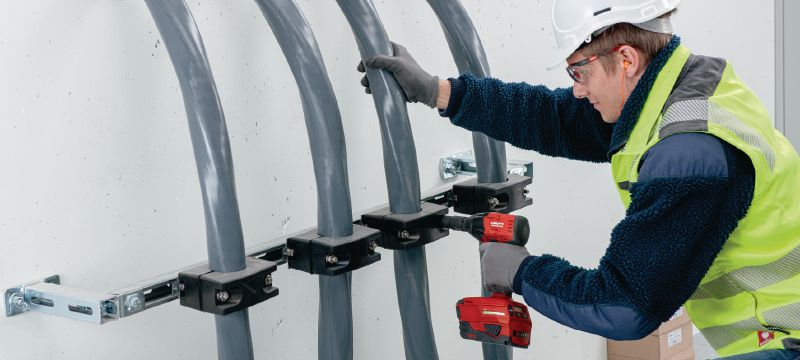

Applications

  • Driving 6 mm and 8 mm HUS3 screw anchors in concrete
  • Driving screws in HRD frame anchors 8 mm and 10 mm in diameter in masonry and concrete
  • Driving lag bolts up to 8 mm in diameter in wood
  • Driving lag bolts up to 1/2" in diameter
  • Tightening and releasing nuts and bolts in sizes M8 to M16

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
