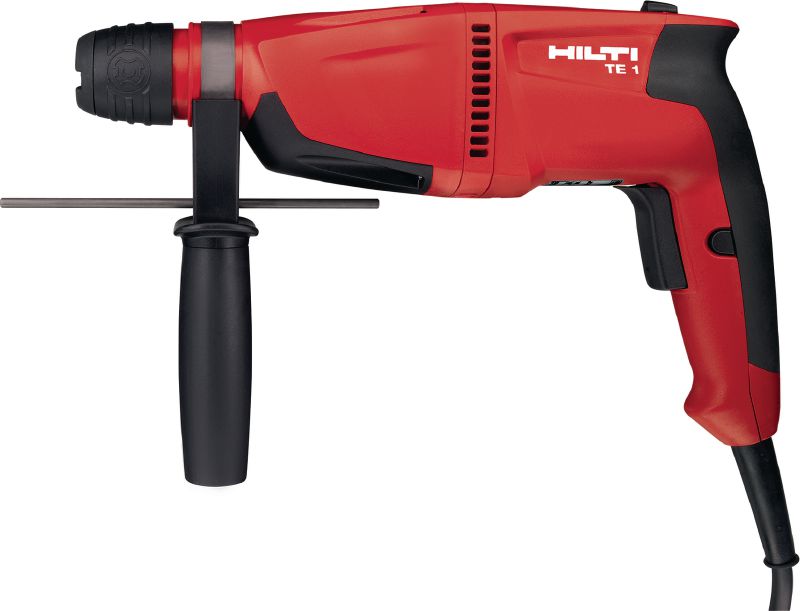

TE 1 Rotary hammer
Compact and light-weight single-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for drilling in concrete
- Weight according to EPTA-Procedure 01/2003 without battery: 2.4 kg
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.5 J
Customers also searched for hammer drilling, drilling concrete, drilling masonry, drilling or tools & equipment.
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
2.4 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.5 J
Working mode
Hammer drilling
Hammer drilling diameter range
4 - 16 mm
Hammer drilling RPM
930 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.6 m/s² 1
A-weighted emission sound pressure level
92 dB (A) 2
Dimensions (LxWxH)
330 x 79 x 203 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- One-mode SDS Plus (TE-C) rotary hammer (hammer drilling)
- Sturdy motor with high load rating for maximum reliability
- High comfort due to compact size, light weight and "TE-C Click" chuck
- Electronic switch for precise hole-starting
- Lock-on button for continuous use
Applications

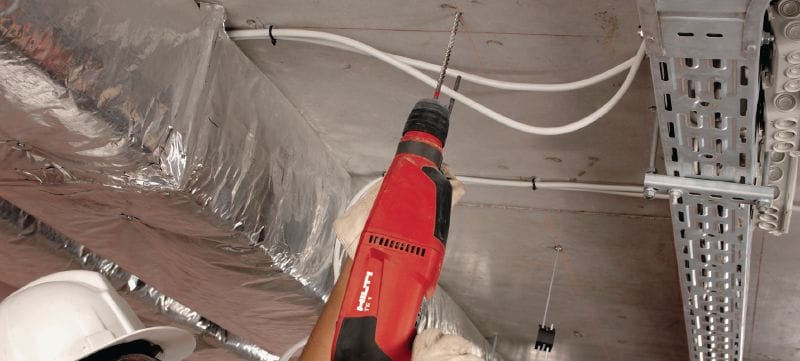

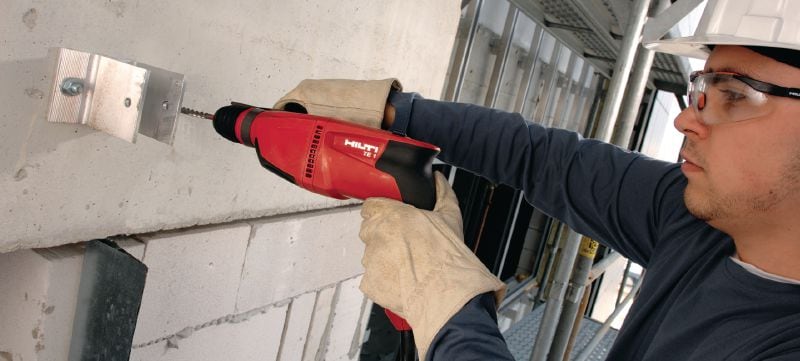

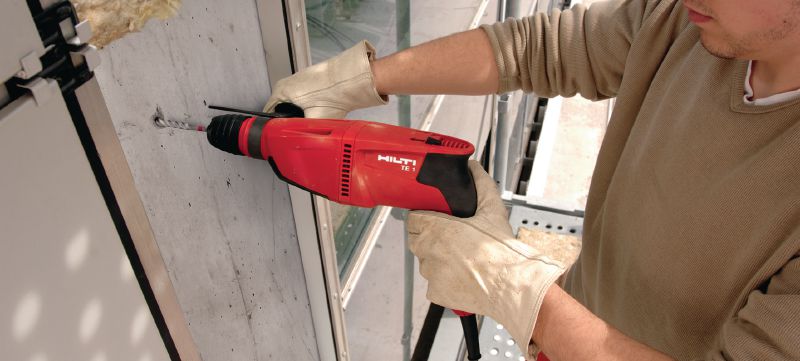

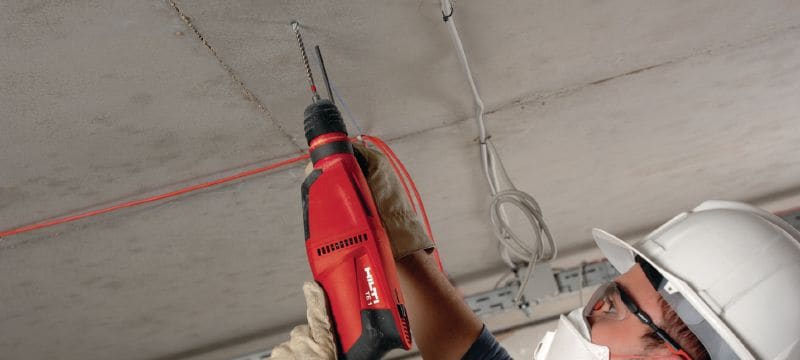

- Everyday hammer drilling in concrete, masonry and natural stone
- Reverse feature assists in the removal of stuck drill bits
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
