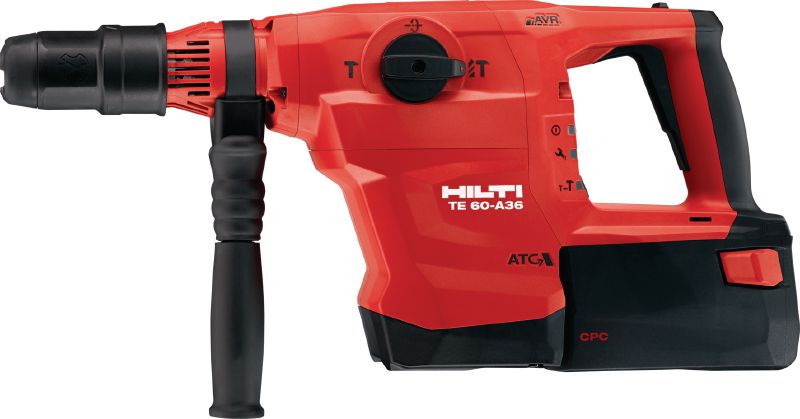

TE 60-A36 Cordless rotary hammer

High-performance cordless SDS Max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiselling in concrete

Weight according to EPTA-Procedure 01/2003 without battery: 8.1 kg
Optimum hammer drilling range: 18 - 40 mm
Hammer drilling diameter range: 12 - 40 mm

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

8.1 kg

Optimum hammer drilling range

18 - 40 mm

Hammer drilling diameter range

12 - 40 mm

Rated voltage

36 V

Single impact energy

8.1 J

Hammer drilling RPM

340 rpm

Full hammering frequency

3300 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Power reduction

Triaxial vibration value for hammer drilling into concrete (ah,HD)

9.0 m/s² ¹

Triaxial vibration for chiselling in concrete

8.6 m/s² ²

Dust removal system available

TE DRS-Y, TE DRS-D

A-weighted emission sound pressure level

101 dB (A) ³

A-weighted emission sound power level

109 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Brushless motor for exceptionally high performance and superior system efficiency
High versatility for a wide range of drilling and chiselling applications
Optional DRS-Y dust removal system collects up to 95% of dust

Applications

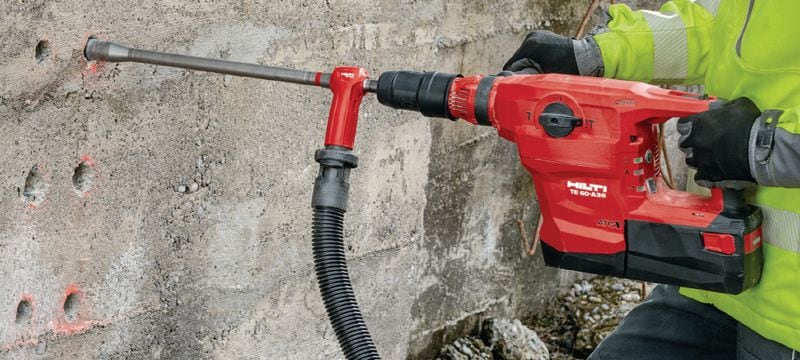

Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

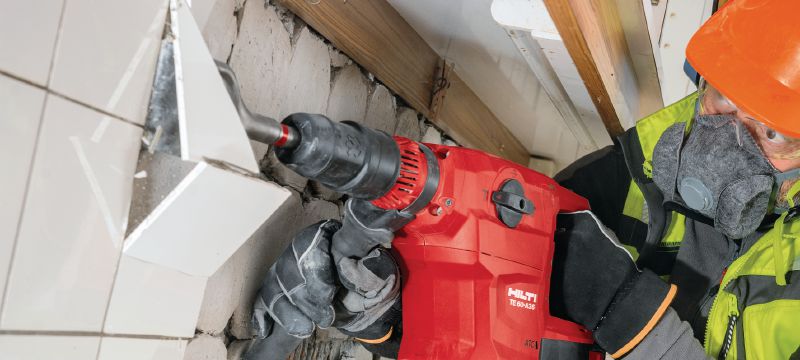

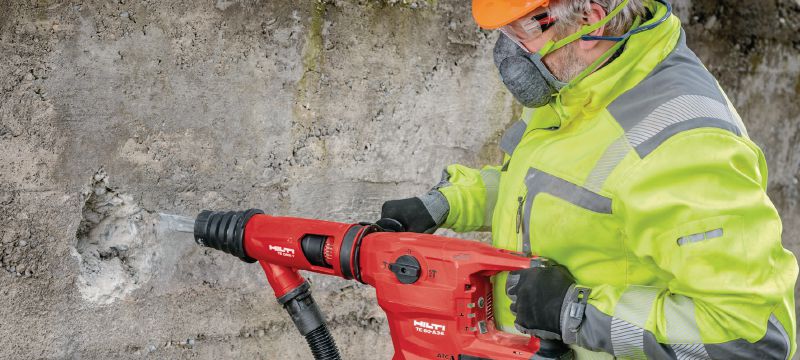

Medium-duty demolition work
Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")

For approval or certificate information, please see individual items.
