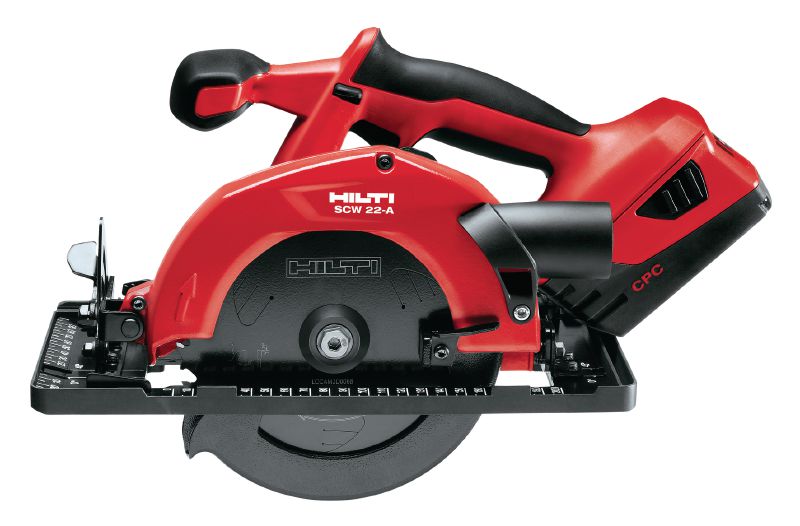

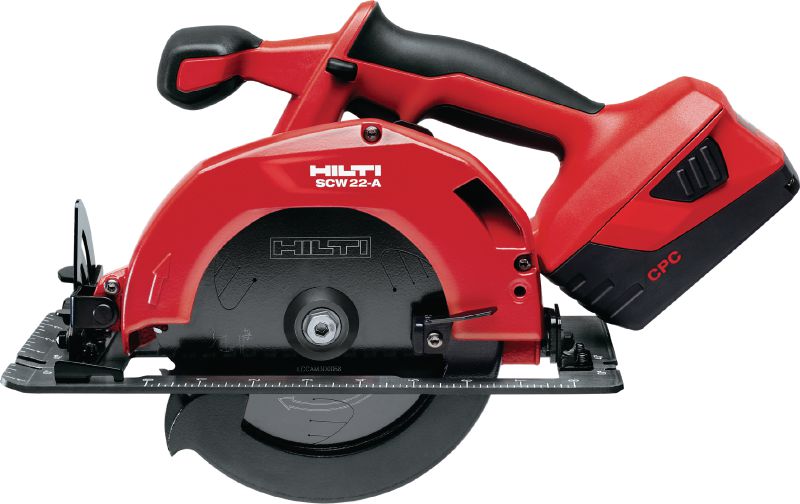

SCW 22-A Cordless circular saw

22V cordless circular saw with optimised power-to-weight ratio for straight cuts up to 57 mm depth

  • Max. cutting depth: 57 mm
  • Blade diameter: 165 mm
  • Base material: Wood, Sandwich panel

Customers also searched for sawingwood cuttingcircular sawcordless tools or tools & equipment.

Technical Data

Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Wood, Sandwich panel
No load RPM
gear 1: 4000 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
393 x 208 x 241 mm
Cutting depth at 45 degrees
42 mm
Max. bevel angle
50 °
Maximum Cross Cut Capacity
x
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
1.2 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Compact and mobile – for cut-as-you-go work on the jobsite
  • Rapid blade stop and dust extraction for maximum safety
  • Low weight makes the circular saw more versatile and less tiring to use in any position
  • Suitable for use with the Hilti guide rail
  • Dust extraction

Applications

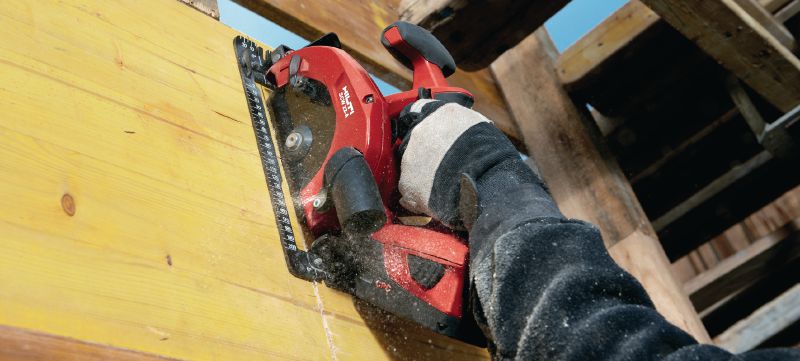

  • General construction – cutting formwork boards, OSB, plywood, chipboard, plastics, rafters and battens

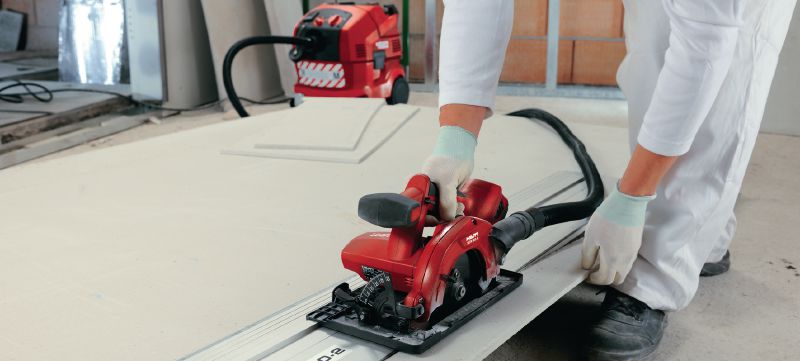

  • Interior finishing – cutting plasterboard, cement board, MDF and HDF
  • Cutting formwork boards, planks, battens, OSB, chipboard, plywood sheets and plastics
  • Trimming and fitting wood and sheet materials
  • Ripping and crosscutting as well as bevel and mitre cuts

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
