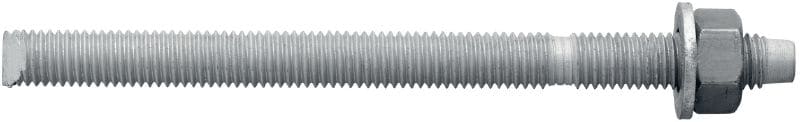

High-performance anchor rod for adhesive capsules in concrete (5.8 hot-dip galvanised)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Environmental conditions: Indoor with temporary condensation, Outdoor (more than 1km to coast)
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for anchor rodsanchoringanchoring rodsstandard anchor rod or anchor rod setting.

Choose options

Anchor size
  • M10
  • M12
  • M16
Anchor length
  • 130 mm
  • 160 mm
  • 190 mm
  • 260 mm
Material composition
  • Steel, strength 5.8 grade, hot-dip galvanized (min. 43 µm)
Head configuration
  • Externally threaded
Pack size
  • 10 pc
  • 20 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From QAR 184.40

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Environmental conditions
Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, ICC-ES report (concrete), ICC-ES report (masonry)
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • Large range of anchor rod sizes (M8-M24)
  • Designed for use with Hilti HVU capsules in solid concrete
  • Optimised design
  • Features a chisel tip to cut and mix the Hilti HVU capsule, embedment marking for easy setting and a conical head (M8-M24 only) to be used with separate setting tool
  • Short spacing and edge distances

Applications

  • Suitable for fastenings in concrete in combination with Hilti HVU2 capsules

For approval or certificate information, please see individual items.
