High-performance foil adhesive capsule for anchoring in concrete

  • Anchoring elements: HAS threaded rods
  • Base material condition: Dry, Wet
  • PROFIS software: Yes

Customers also searched for anchoring structural steelanchoring road barriersanchors or anchoring.

Choose options

Anchor size
  • M10
  • M12
  • M16
Standard embedment depth
  • 90 mm
  • 110 mm
  • 125 mm
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From QAR 3,792.00

Technical Data

Anchoring elements
HAS threaded rods
Base material condition
Dry, Wet
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
In-service temperature – range
-40 - 72 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
No
Installation direction
All

Documents

Features & Applications

Features

  • Tested according to standard temperature curve (ISO 834) and the German tunnel temperature curve (ZTV-ING, part 5)

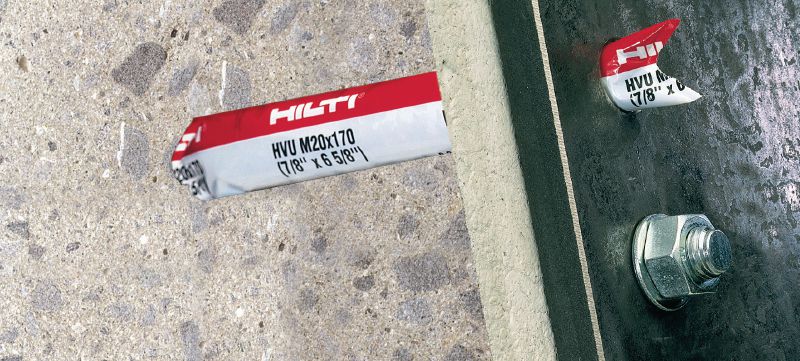

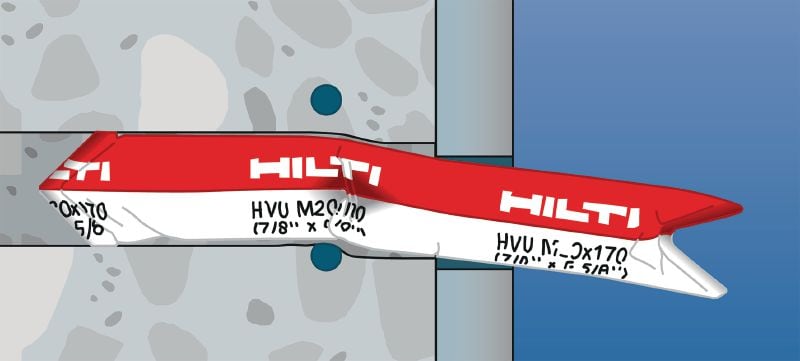

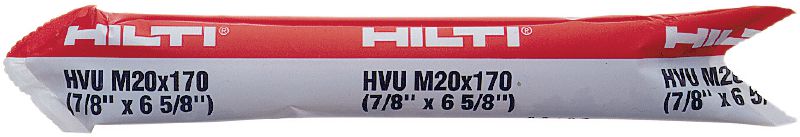

  • Flexible foil capsule instead of glass: A robust solution for real jobsite conditions
  • One system for many applications thanks to a wide range of adhesive capsules, anchor rods and internally threaded sleeves in various diameters and lengths
  • Convenient for overhead applications
  • Pre-portioned foil capsule, no waste

Applications

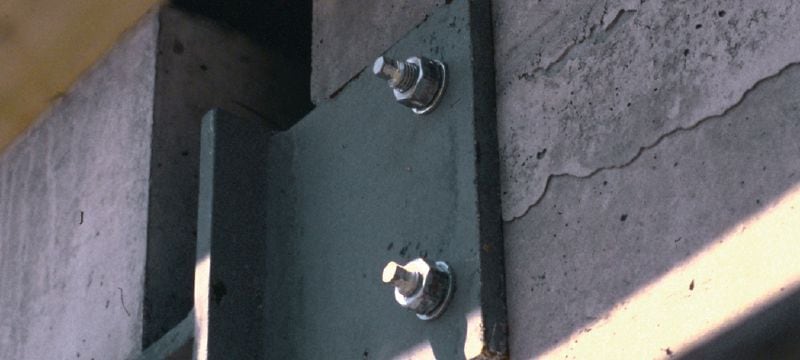

  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)

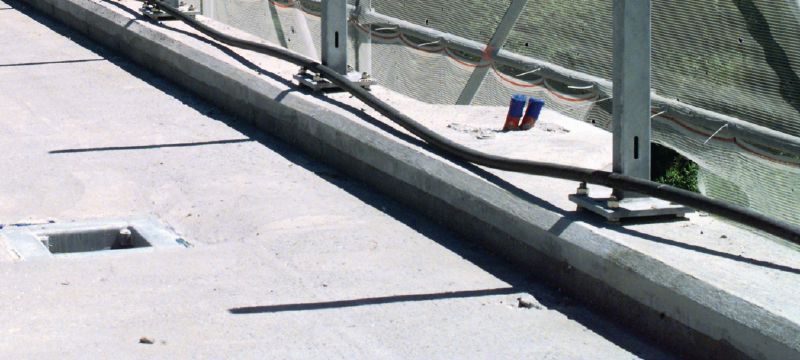

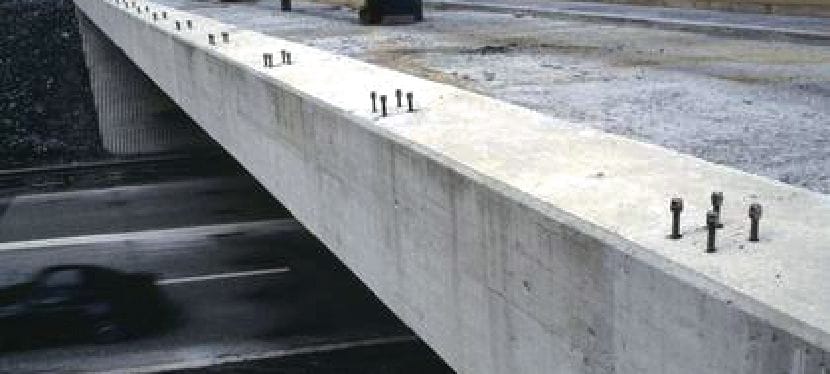

  • Anchoring in road and tunnel applications (crash and noise barriers, overhead catenary systems)

For approval or certificate information, please see individual items.
