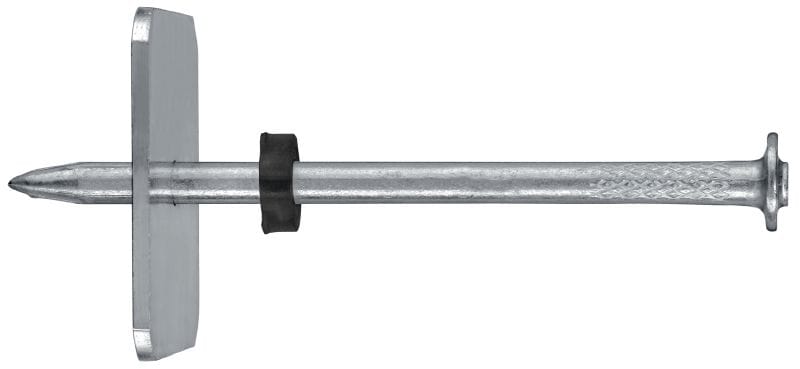

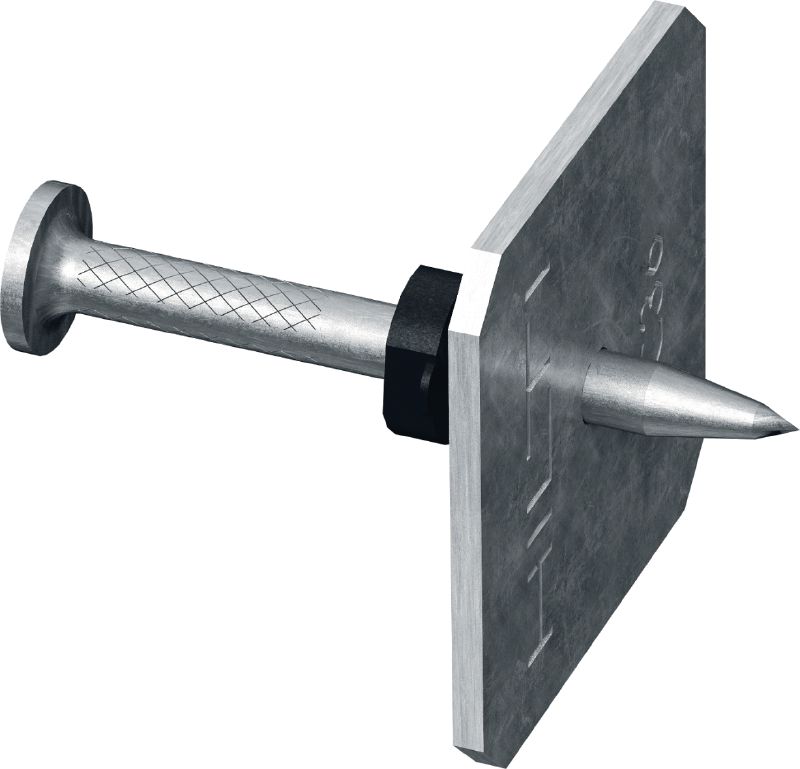

X-C P8S Concrete nails with washer

Concrete nail X-C 27 P8 S23 #2091396

Premium single nail with steel washer for fastening to concrete using powder-actuated tools

  • Base materials: Concrete (soft), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm

Customers also searched for concrete nailsnails for direct faseningdrywall tracknails or direct fastening.

Choose options

Fastener shank length
  • 27 mm
Pack size
  • 1000 pc
Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

QAR 890.00

QAR 0.89 / 1 each

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Washer size
23 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 2, DX 36, DX 460 F8, DX 5 F8, DX E721 F8

Documents

Features & Applications

Features

  • Fastener with pre-mounted washer providing a larger bearing surface for improved clamping of fastened material
  • Pre-mounted steel washer offers maximum pull-over resistance for fastening soft materials to concrete
  • Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
  • Best suited for fastening to concrete with a hardness of up to 6,000 psi

Applications

  • Fastening wood to concrete, e.g. 2x4s, plywood, wood battens, formwork, kicker plates
  • Attaching a variety of materials to masonry block and concrete
  • Fastening wood profiles to concrete
  • Fastening termination bars to secure waterproofing membrane or moisture barriers
  • Wood to concrete, e.g. formwork boards, safety barriers, etc.
