CFS-NVB E120 cavity barrier board (non-ventilated)

Cavity barrier CFS-NVB E120 FB #2395774

Configurator
Technical Data
Documents
Features & Applications
Related Products
L133058 (3480767)

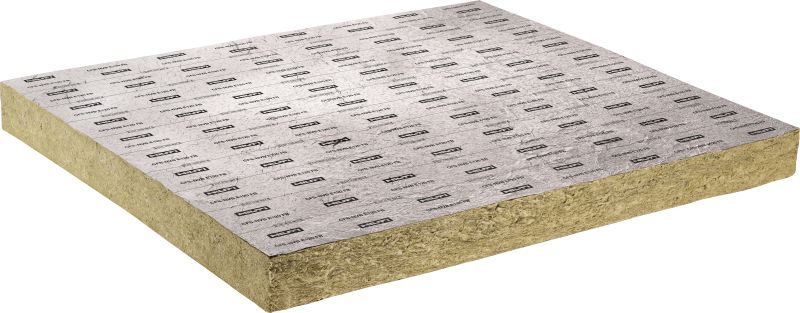

Pre-formed fire cavity barrier (full board) for non-ventilated façade applications with 120 minutes of fire integrity

  • Length: 1200 mm
  • Height: 100 mm
  • Width: 1000 mm

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 5,355.33
QAR 5,355.33
/
1 Pack

Technical Data

Length
1200 mm
Height
100 mm
Width
1000 mm
Density
70 kg/m³
Weight
8.4 kg
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Mold and mildew performance
Class 0 (ASTM G21, ISO 846 Method A)
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Material safety datasheet
Sustainability Documentation
pdf Material safety datasheet Mineral wool products FP (AR) [ 349.3 KB ]
pdf Material safety datasheet Mineral wool products FP (EN) [ 231.5 KB ]

Features & Applications

Features

  • One-size-fits-all – full board solution allows you to cut barriers to the size you need, helping avoid material waste
  • Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal more barriers per day than previous solutions
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of Speciality applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for non-ventilated façades

Applications

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding vertically
  • Firestopping non-ventilated rainscreen cladding vertically and horizontally
  • Verified fire resistance for 120 minutes integrity and up to 60 minutes insulation according to European Standard (EN) 1366-4
